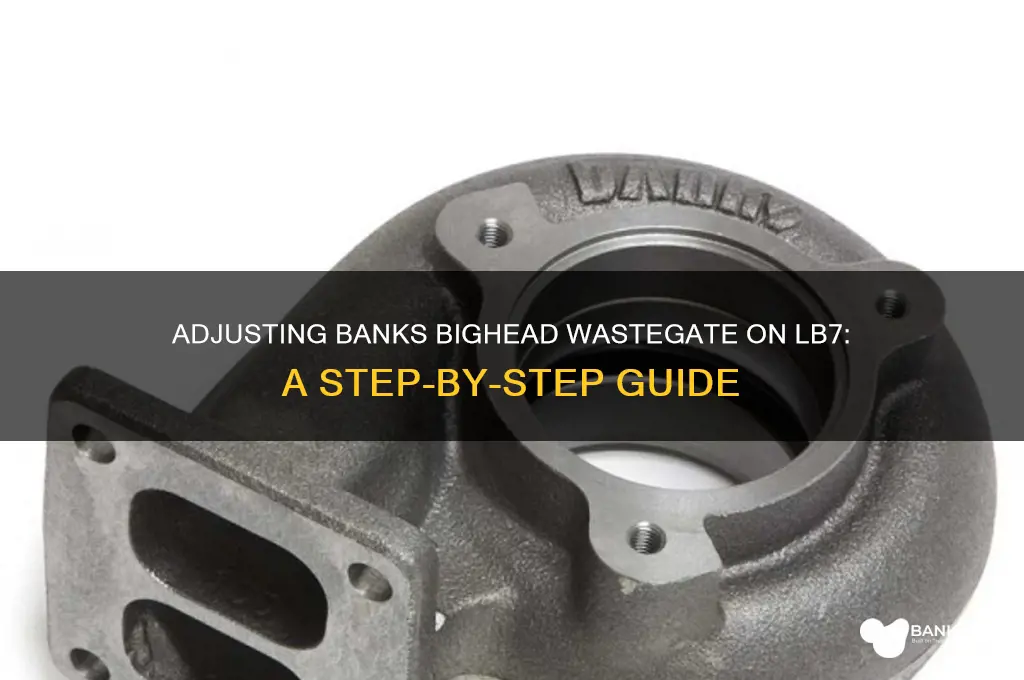

Adjusting the Banks BigHead wastegate on an LB7 Duramax engine requires precision and a clear understanding of the process to ensure optimal performance and prevent damage. The wastegate plays a critical role in regulating turbocharger boost pressure, and proper adjustment is essential for maintaining power, efficiency, and longevity. Begin by locating the wastegate actuator and ensuring the engine is cool to avoid burns. Loosen the jam nut on the actuator rod, then adjust the rod length to achieve the desired preload, typically measured with a wastegate pressure tester. Tighten the jam nut securely and double-check the setting under operating conditions. Always refer to the manufacturer’s guidelines or consult a professional if unsure, as incorrect adjustments can lead to overboost or underperformance.
| Characteristics | Values |
|---|---|
| Wastegate Type | Banks BigHead Wastegate for LB7 Duramax engines |
| Adjustment Purpose | Optimize boost pressure, improve performance, and prevent overboost |
| Tools Required | 1/4" drive ratchet, 8mm socket, 10mm socket, torque wrench, screwdriver |
| Adjustment Location | Actuator rod on the wastegate assembly |
| Adjustment Procedure | Loosen jam nut, turn actuator rod clockwise to increase boost, counterclockwise to decrease, then tighten jam nut |
| Recommended Boost Pressure | 15-18 PSI for stock LB7 Duramax (adjust based on tuner or modifications) |
| Torque Specification | 10-12 ft-lbs for jam nut (refer to Banks Power instructions for exact spec) |
| Pre-Adjustment Check | Ensure engine is cool, vehicle is off, and wastegate is in closed position |
| Post-Adjustment Test | Start engine, monitor boost pressure with gauge, and verify desired levels |
| Common Issues | Overboost, insufficient boost, or wastegate sticking |
| Compatibility | Specifically designed for 2001-2004 GM Duramax LB7 engines |
| Manufacturer | Banks Power |
| Part Number | Varies by specific kit (e.g., 24611 for LB7) |
| Warranty | Limited lifetime warranty (check Banks Power for details) |
| Additional Notes | Always follow Banks Power instructions and consult a professional if unsure |
Explore related products
What You'll Learn
- Understanding Wastegate Functionality: Learn how the wastegate controls boost pressure in your LB7 engine
- Setting Actuator Pressure: Adjust the wastegate actuator spring for desired boost levels
- Porting and Flow Optimization: Modify wastegate ports for improved exhaust flow efficiency
- Actuator Rod Adjustment: Fine-tune the actuator rod length for precise boost control
- Testing and Tuning: Use a boost gauge to verify adjustments and ensure optimal performance
Understanding Wastegate Functionality: Learn how the wastegate controls boost pressure in your LB7 engine
The wastegate is a critical component in your LB7 engine's turbocharging system, responsible for regulating boost pressure to ensure optimal performance and prevent damage. In essence, the wastegate acts as a bypass valve, controlling the flow of exhaust gases to the turbocharger. When the wastegate is open, it diverts exhaust gases away from the turbo, reducing the turbine's speed and, consequently, the boost pressure. Conversely, when the wastegate is closed, more exhaust gases flow through the turbo, increasing the boost pressure. Understanding this functionality is crucial when adjusting the Banks Bighead wastegate on your LB7 engine, as it directly impacts the engine's power output, efficiency, and overall reliability.
In the context of the LB7 engine, the wastegate's operation is governed by a combination of mechanical and pneumatic forces. The wastegate is typically controlled by a pressure actuator, which responds to changes in boost pressure. As the engine's RPM and load increase, the boost pressure rises, causing the actuator to open the wastegate and maintain the desired pressure level. This delicate balance ensures that the engine operates within safe limits, avoiding excessive boost that could lead to detonation, overheating, or other performance-robbing issues. When adjusting the Banks Bighead wastegate, it's essential to consider these factors to achieve the desired boost pressure and optimize engine performance.
To comprehend how the wastegate controls boost pressure in your LB7 engine, it's vital to examine the relationship between the wastegate's position and the turbocharger's speed. The wastegate's opening and closing directly affect the exhaust gas flow to the turbo, which in turn influences the turbine's rotational speed. As the wastegate opens, the turbo's speed decreases, reducing boost pressure. Conversely, a closed wastegate allows more exhaust gases to flow through the turbo, increasing its speed and generating higher boost pressure. The Banks Bighead wastegate adjustment process involves fine-tuning this relationship to achieve the desired boost pressure, taking into account factors such as engine load, RPM, and ambient conditions.
When adjusting the Banks Bighead wastegate on your LB7 engine, it's crucial to follow a systematic approach to ensure accurate and reliable results. This typically involves monitoring boost pressure, engine RPM, and other relevant parameters while making incremental adjustments to the wastegate's position. By understanding the wastegate's functionality and its impact on boost pressure, you can make informed decisions about the adjustment process, avoiding common pitfalls such as over-boosting or under-boosting. Additionally, considering the engine's specific requirements, such as fuel delivery, air-fuel ratio, and ignition timing, is essential to achieving optimal performance and reliability.
In practice, adjusting the Banks Bighead wastegate on your LB7 engine requires a combination of technical knowledge, practical experience, and attention to detail. This may involve using specialized tools, such as a boost gauge or a scan tool, to monitor engine parameters and make data-driven adjustments. By understanding the wastegate's role in controlling boost pressure and its interaction with other engine systems, you can effectively fine-tune the wastegate's position to achieve the desired performance outcomes. Whether you're seeking increased power, improved fuel efficiency, or enhanced drivability, a thorough understanding of wastegate functionality is essential for successful Banks Bighead wastegate adjustment on your LB7 engine.
Ultimately, mastering wastegate functionality is key to unlocking the full potential of your LB7 engine with the Banks Bighead wastegate. By grasping the underlying principles of boost pressure control, wastegate operation, and engine performance, you can make informed decisions about the adjustment process, ensuring optimal results. As you embark on the journey of adjusting your Banks Bighead wastegate, remember that patience, precision, and a deep understanding of wastegate functionality will be your most valuable tools in achieving the desired boost pressure and maximizing your LB7 engine's performance.
Understanding Axis Bank Username Format: A Comprehensive Guide for Customers
You may want to see also
Explore related products
Setting Actuator Pressure: Adjust the wastegate actuator spring for desired boost levels
Adjusting the wastegate actuator spring on a Banks BigHead wastegate for an LB7 Duramax is a critical step in achieving your desired boost levels. The actuator spring preload determines the pressure at which the wastegate opens, directly influencing turbocharger boost. To begin, locate the actuator arm and the locking jam nut that secures the spring preload. Loosen the jam nut using an appropriate wrench, but do not remove it entirely. This will allow you to rotate the actuator arm and adjust the spring tension. Keep in mind that small adjustments have a significant impact on boost levels, so proceed with precision.
With the jam nut loosened, rotate the actuator arm clockwise to increase spring tension, which will raise the pressure required to open the wastegate and result in higher boost levels. Conversely, rotating the arm counterclockwise reduces spring tension, lowering the wastegate opening pressure and decreasing boost. Use a boost gauge to monitor the changes in real-time as you make adjustments. It’s recommended to make incremental changes, such as 1/8 to 1/4 turn at a time, and then test drive the vehicle to observe the effects on boost and performance.
After making your initial adjustments, tighten the jam nut securely to lock in the new spring preload setting. Ensure the nut is tight enough to prevent the arm from moving during operation but avoid over-tightening, as this could damage the actuator. Double-check the actuator arm’s position to confirm it hasn’t shifted during the tightening process. If it has, loosen the nut and readjust the arm to your desired setting before re-tightening.
For fine-tuning, consider using a wastegate calibrator tool or referencing a spring preload chart specific to the Banks BigHead wastegate. These resources provide guidelines for correlating spring preload turns with approximate boost levels, though actual results may vary based on your specific setup. Always refer to the manufacturer’s instructions or consult a professional if you’re unsure about the adjustments.
Finally, after setting the actuator pressure, perform a thorough test drive under various load conditions to ensure the wastegate operates as intended. Monitor for consistent boost levels and check for any signs of overboost or underboost. If further adjustments are needed, repeat the process until you achieve the desired performance. Properly setting the wastegate actuator spring is essential for maximizing power, efficiency, and reliability in your LB7 Duramax.
Activate Keystone Bank Mobile App: A Step-by-Step Guide for Users
You may want to see also
Explore related products
Porting and Flow Optimization: Modify wastegate ports for improved exhaust flow efficiency
Porting and flow optimization is a critical aspect of enhancing the performance of the Banks BigHead wastegate on an LB7 Duramax. The wastegate ports play a significant role in managing exhaust flow, which directly impacts turbocharger efficiency and overall engine performance. To begin the modification process, it is essential to thoroughly clean and inspect the wastegate housing and ports. Use a degreaser to remove any oil, carbon, or debris that could obstruct the ports or interfere with the machining process. Once cleaned, carefully examine the ports for any signs of damage, warping, or uneven surfaces that may restrict flow. This initial step ensures that your modifications are applied to a clean and sound foundation, maximizing the effectiveness of the porting work.
After cleaning and inspection, the next step is to enlarge and reshape the wastegate ports to improve exhaust flow efficiency. Using a die grinder equipped with carbide burrs, carefully remove material from the port walls, focusing on creating a smooth, gradual transition from the port entrance to the exhaust path. The goal is to eliminate sharp edges and tight radii that can cause turbulence and restrict flow. Start with a conservative approach, removing small amounts of material at a time, and frequently check your progress to avoid over-porting. Over-aggressive porting can lead to a loss of flow velocity and reduced wastegate control, so precision is key. Aim for a port shape that mirrors the contours of the exhaust stream, promoting laminar flow and minimizing energy losses.
In addition to enlarging the ports, blending the port transitions is crucial for optimal flow optimization. The interface between the wastegate port and the exhaust housing should be seamlessly blended to prevent flow separation and turbulence. Use a fine-grit sanding drum or abrasive paper to smooth any steps or ridges created during the port enlargement process. Pay particular attention to the area where the wastegate port meets the exhaust stream, ensuring a gradual and uninterrupted flow path. Proper blending not only improves flow efficiency but also reduces the risk of exhaust gas recirculation, which can negatively impact turbocharger response and overall engine performance.
Another important consideration in porting and flow optimization is maintaining proper wastegate functionality. While improving flow is essential, it is equally important to ensure that the wastegate can still effectively control boost pressure. Avoid excessive porting that could lead to premature wastegate opening or inconsistent boost control. One technique to achieve this balance is to focus porting efforts on the primary flow path while leaving the wastegate’s sealing surface and actuator mechanism unaltered. This ensures that the wastegate retains its ability to regulate exhaust flow accurately while benefiting from the improved port design. Testing the wastegate’s operation after porting is highly recommended to verify that it functions within the desired parameters.
Finally, surface finishing is a critical step in maximizing the benefits of porting and flow optimization. After completing the port enlargement and blending, use progressively finer grits of abrasive paper or a polishing tool to achieve a smooth, mirror-like finish on the port surfaces. A smooth finish reduces flow resistance and promotes better exhaust gas velocity, further enhancing turbocharger efficiency. Take care not to introduce any scratches or imperfections during the finishing process, as these can disrupt flow and negate the benefits of your porting work. Once the ports are polished, reassemble the wastegate and exhaust components, ensuring all connections are secure and leak-free. With proper porting and flow optimization, the Banks BigHead wastegate on an LB7 Duramax will deliver improved exhaust flow efficiency, resulting in better turbocharger response, increased power, and enhanced overall engine performance.
Individual Retirement Account: What IRA Stands For in Banking
You may want to see also
Explore related products
Actuator Rod Adjustment: Fine-tune the actuator rod length for precise boost control
Adjusting the actuator rod length on a Banks BigHead wastegate for an LB7 Duramax is a critical step in achieving precise boost control. The actuator rod connects the wastegate actuator to the wastegate arm, and its length directly influences when and how much the wastegate opens. To begin, ensure the engine is cool and the vehicle is parked on a level surface. Locate the actuator rod, which is typically a threaded rod with a lock nut. Loosen the lock nut using the appropriate wrench, but do not remove it completely. This will allow you to turn the rod and adjust its length.
Once the lock nut is loosened, rotate the actuator rod clockwise to shorten it or counterclockwise to lengthen it. Shortening the rod increases the wastegate’s opening pressure, resulting in higher boost levels, while lengthening the rod decreases the opening pressure, leading to lower boost. Small adjustments have a significant impact, so turn the rod in increments of about 1/8 to 1/4 of a turn at a time. After each adjustment, retighten the lock nut to secure the rod in place, ensuring it doesn’t move during operation.
To fine-tune the actuator rod length, start the engine and allow it to reach operating temperature. Monitor the boost pressure using a gauge or tuning software. If the boost is too low, shorten the rod slightly and retest. If it’s too high, lengthen the rod. Repeat this process until the desired boost level is achieved. Keep in mind that the wastegate’s response may vary under different load conditions, so it’s beneficial to test the vehicle under acceleration and cruising to ensure consistent performance.
After making adjustments, double-check that the lock nut is securely tightened to prevent the rod from shifting. It’s also a good practice to inspect the wastegate arm and actuator for any signs of wear or damage, as these components play a crucial role in maintaining proper boost control. If the wastegate arm is bent or the actuator diaphragm is damaged, address these issues before finalizing the actuator rod adjustment.
Finally, take the vehicle for a test drive to verify that the boost control is stable and meets your performance goals. If further adjustments are needed, repeat the process until optimal results are achieved. Properly adjusting the actuator rod length ensures that the Banks BigHead wastegate operates efficiently, maximizing both power and reliability in your LB7 Duramax. Always refer to the manufacturer’s guidelines or consult a professional if you’re unsure about any step in the adjustment process.
Does CTBC Bank Offer Zelle Services? A Comprehensive Guide
You may want to see also
Explore related products
Testing and Tuning: Use a boost gauge to verify adjustments and ensure optimal performance
When adjusting the Banks BigHead wastegate on an LB7 Duramax, testing and tuning with a boost gauge is essential to verify that your adjustments are delivering the desired performance. Start by installing a high-quality boost gauge in your vehicle’s cabin, ensuring it’s properly connected to the intake manifold for accurate readings. This gauge will allow you to monitor the turbocharger’s boost pressure in real-time, providing critical feedback during the tuning process. Before making any adjustments, log your baseline boost levels under various driving conditions—idle, cruising, and full throttle—to establish a reference point for comparison.
Once your boost gauge is installed and calibrated, begin the adjustment process by turning the wastegate actuator rod clockwise to increase boost pressure or counterclockwise to decrease it. After each small adjustment, take the vehicle for a test drive and monitor the boost gauge closely. Pay attention to how the boost pressure behaves under different loads and RPMs. The goal is to achieve a consistent and stable boost level that aligns with your performance objectives without exceeding the engine’s safe limits. If the boost spikes excessively or drops off prematurely, further adjustments are needed.
During testing, ensure the wastegate is responding correctly to the actuator rod adjustments. If the boost gauge shows inconsistent readings or the wastegate fails to hold pressure, recheck the actuator rod’s position and the wastegate’s mechanical operation. It’s crucial to avoid over-tightening the rod, as this can cause the wastegate to bind or fail. Gradually fine-tune the rod until the boost gauge indicates smooth and predictable pressure across all driving conditions.
After achieving stable boost levels, perform a final test drive to confirm the adjustments under real-world conditions. Monitor the boost gauge for any anomalies, such as sudden pressure drops or surges, which could indicate a leak or improper wastegate function. If everything checks out, log the final boost levels and compare them to your baseline readings to quantify the improvement. This data will also serve as a reference for future tuning or troubleshooting.
Regularly revisit the testing and tuning process, especially after significant modifications or extended use, to ensure the wastegate continues to perform optimally. Environmental factors like temperature and altitude can also affect boost pressure, so periodic adjustments may be necessary to maintain peak performance. By consistently using a boost gauge to verify and fine-tune your Banks BigHead wastegate, you’ll ensure your LB7 Duramax operates efficiently and reliably under all conditions.
Routing Numbers: State-Specific or Universal?
You may want to see also
Frequently asked questions
The first step is to locate the wastegate actuator and ensure the engine is cool. Disconnect the actuator arm from the wastegate rod using a wrench or socket, and prepare to adjust the preload.
To set the preload, turn the actuator clockwise until it stops, then back it off counterclockwise 1.5 turns. This ensures the wastegate opens at the correct pressure for optimal performance.
You will need a wrench or socket to disconnect the actuator arm, a torque wrench for reassembly, and possibly a pry bar or pliers to assist with alignment during adjustment.
Start the engine and allow it to reach operating temperature. Use a boost gauge to monitor pressure and ensure the wastegate opens smoothly at the desired boost level, typically around 20-22 PSI for stock LB7 setups.
