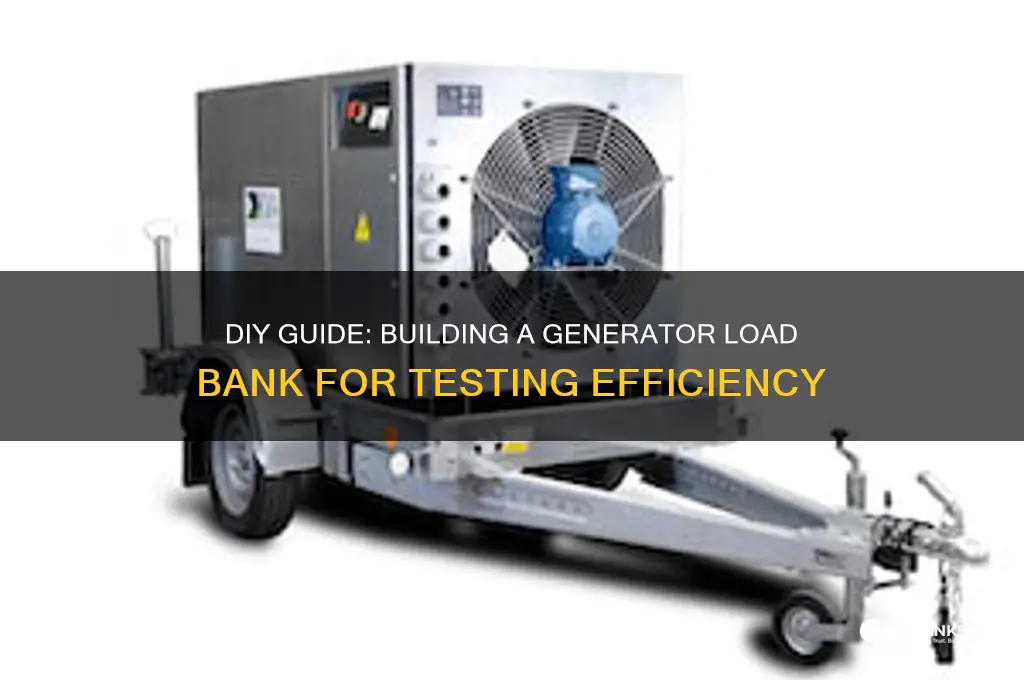

Building a generator load bank is a critical process for testing and maintaining the performance and reliability of power generators. A load bank simulates the electrical load that a generator would typically supply, allowing operators to assess its capacity, efficiency, and stability under various conditions. To construct a generator load bank, you’ll need to select appropriate resistive or reactive load elements, design a robust framework to handle the heat dissipation, and integrate control systems for precise load adjustments. Safety is paramount, so incorporating features like over-temperature protection, proper ventilation, and secure electrical connections is essential. Whether for industrial, commercial, or residential applications, a well-built load bank ensures generators operate optimally, reducing downtime and extending their lifespan.
Explore related products
What You'll Learn
- Load Bank Basics: Understand load bank types, sizing, and their role in generator testing
- Components Needed: List essential parts like resistors, switches, and control panels
- Wiring & Assembly: Step-by-step guide to safely connect and assemble components
- Safety Measures: Highlight precautions, insulation, and grounding for secure operation
- Testing & Calibration: Procedures to verify load bank accuracy and generator performance
Load Bank Basics: Understand load bank types, sizing, and their role in generator testing
Load banks are essential tools for testing and maintaining generators, ensuring they operate reliably under various load conditions. There are three primary types of load banks: resistive, reactive, and resistive-reactive. Resistive load banks simulate real-world electrical loads by converting electrical energy into heat, making them ideal for testing a generator’s prime power capabilities. Reactive load banks mimic inductive or capacitive loads, such as motors or transformers, and are used to test a generator’s ability to handle power factor issues. Resistive-reactive load banks combine both features, offering a comprehensive test of a generator’s performance under mixed loads. Understanding the type of load bank required depends on the specific testing needs, such as verifying power output, stability, or efficiency.
Sizing a load bank correctly is critical to effective generator testing. The load bank’s capacity should match or exceed the generator’s rated output to ensure accurate testing. For example, a 100 kW generator requires a load bank rated at least 100 kW, though many professionals recommend a slightly larger load bank to account for future upgrades or testing under full load conditions. Oversized load banks can stress the generator unnecessarily, while undersized ones may not provide a thorough test. Additionally, load banks should be modular or adjustable to allow testing at different load levels, such as 25%, 50%, 75%, and 100% of the generator’s capacity, to assess performance across various scenarios.
The primary role of a load bank in generator testing is to simulate real-world electrical loads, ensuring the generator operates as expected under stress. Load banks are used for commissioning, where a newly installed generator is tested to confirm it meets specifications; routine maintenance, to identify issues before they cause failures; and peak load testing, to ensure the generator can handle maximum demand. By applying a controlled load, load banks help verify the generator’s voltage regulation, frequency stability, and fuel efficiency. They also help burn off wet stack deposits, a common issue in diesel generators caused by incomplete fuel combustion, which can lead to maintenance problems if left unaddressed.
When building or selecting a load bank, consider factors such as portability, durability, and ease of use. Portable load banks are ideal for field testing, while stationary units are better suited for permanent installations. The load bank should have robust safety features, such as over-temperature protection and emergency shutdown capabilities, to prevent damage during testing. For DIY projects, resistive load banks are the simplest to construct, typically using high-power resistors connected in series or parallel to achieve the desired load. However, ensuring proper cooling and insulation is crucial to prevent overheating and electrical hazards.
In summary, understanding load bank types, proper sizing, and their role in generator testing is fundamental to maintaining generator reliability. Whether for professional or DIY applications, selecting or building the right load bank ensures accurate and safe testing, ultimately extending the lifespan and efficiency of the generator. By simulating real-world conditions, load banks provide invaluable insights into a generator’s performance, making them an indispensable tool in power generation maintenance.
