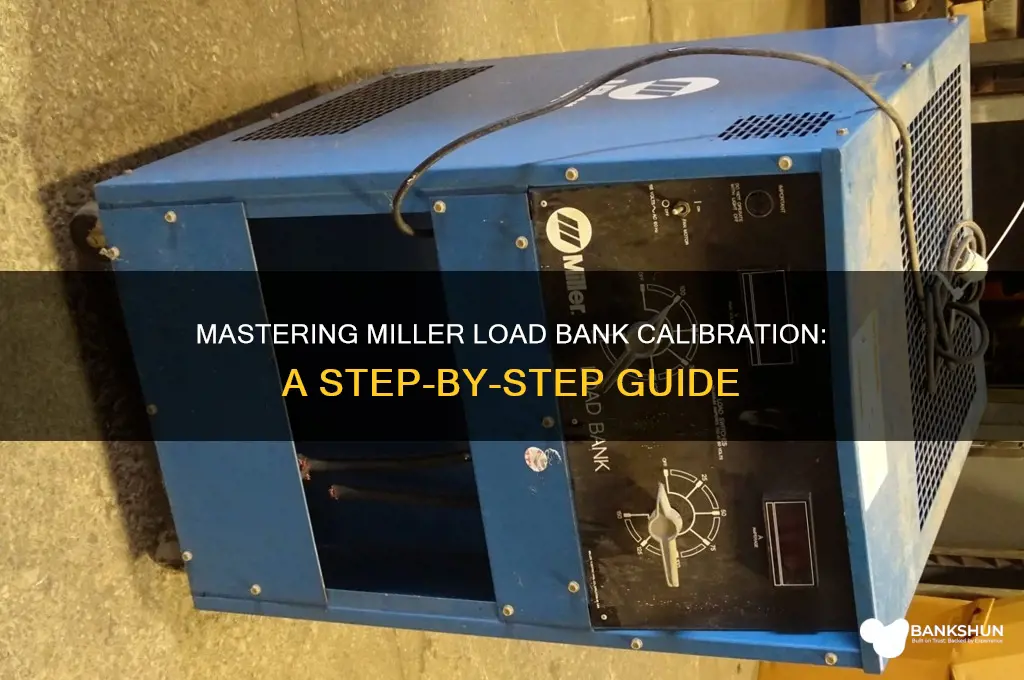

Calibrating a Miller load bank is a critical process to ensure accurate and reliable performance in testing power generation systems. This procedure involves adjusting the load bank's settings to match the manufacturer's specifications, guaranteeing precise load application and measurement. Proper calibration is essential for maintaining the integrity of test results, preventing equipment damage, and ensuring compliance with industry standards. The process typically includes verifying voltage and current readings, adjusting load steps, and confirming the accuracy of control systems. Regular calibration not only extends the lifespan of the load bank but also enhances the efficiency and safety of power system testing operations.
| Characteristics | Values |
|---|---|
| Calibration Frequency | Annually or after 500 hours of operation (whichever comes first) |
| Required Tools | Multimeter, precision resistor, calibration software (if applicable) |
| Power Source | Ensure load bank is connected to a stable power supply during calibration |
| Load Steps | Calibrate at 25%, 50%, 75%, and 100% of rated load capacity |
| Accuracy Requirement | ±1% of full-scale reading for voltage and current measurements |
| Temperature Range | Perform calibration at ambient temperatures between 15°C and 30°C |
| Safety Precautions | Ensure load bank is de-energized before calibration; wear PPE |
| Documentation | Record pre- and post-calibration readings, adjustments, and date |
| Reference Standards | Use NIST-traceable equipment for calibration |
| Software Updates | Ensure load bank firmware is up-to-date before calibration |
| Load Bank Model Compatibility | Specific to Miller load bank models (e.g., MCLB, MCLB-Pro) |
| Calibration Procedure | Follow manufacturer's manual for step-by-step instructions |
| Post-Calibration Testing | Verify load bank performance at all load steps after calibration |
| Certification | Obtain calibration certificate from accredited lab if required |
Explore related products
What You'll Learn
- Pre-Calibration Preparation: Gather tools, safety gear, and documentation. Ensure load bank is disconnected
- Initial Inspection: Check for damage, loose connections, and proper wiring before calibration
- Load Settings Adjustment: Configure load settings to match calibration requirements and test parameters
- Calibration Procedure: Apply known loads, measure outputs, and adjust for accuracy. Record results
- Post-Calibration Verification: Re-test load bank to confirm accuracy and ensure proper functionality
Pre-Calibration Preparation: Gather tools, safety gear, and documentation. Ensure load bank is disconnected
Before beginning the calibration process for a Miller load bank, it is essential to thoroughly prepare by gathering all necessary tools, safety gear, and documentation. Start by assembling the required tools, which typically include a multimeter, calibration standards, a screwdriver set, and any manufacturer-specific tools recommended in the user manual. Ensure that all tools are in good working condition to avoid any disruptions during the calibration process. Additionally, verify that you have access to a stable power source and any auxiliary equipment needed for testing.
Safety should always be a top priority during calibration. Equip yourself with appropriate personal protective equipment (PPE), such as insulated gloves, safety goggles, and a flame-resistant lab coat or apron. These items protect against electrical hazards, debris, or accidental exposure to harmful substances. It is also crucial to ensure the work area is well-ventilated and free from clutter to minimize risks. Familiarize yourself with emergency procedures and the location of first-aid kits and fire extinguishers in case of an accident.
Gather all relevant documentation, including the Miller load bank’s user manual, calibration instructions, and any previous calibration records. The user manual provides specific guidelines and technical specifications essential for accurate calibration. Previous records can offer insights into recurring issues or adjustments made during past calibrations. Having these documents readily available ensures that you follow the correct procedures and maintain consistency in the calibration process.
Before proceeding, ensure the Miller load bank is completely disconnected from the power source. This step is critical to prevent electrical accidents and ensure the safety of the operator and the equipment. Turn off the load bank and verify that all switches are in the "off" position. Use a multimeter to confirm that there is no residual voltage present in the system. Once confirmed, securely disconnect all power cables and place them in a safe position to avoid accidental reconnection during calibration.
Finally, inspect the load bank for any visible damage, wear, or loose connections that could affect the calibration process. Check the control panel, wiring, and load resistors for signs of corrosion, overheating, or physical damage. Address any issues before proceeding, as they may compromise the accuracy of the calibration or pose safety risks. Ensuring the load bank is in optimal condition before calibration will yield more reliable results and extend the equipment’s lifespan.
