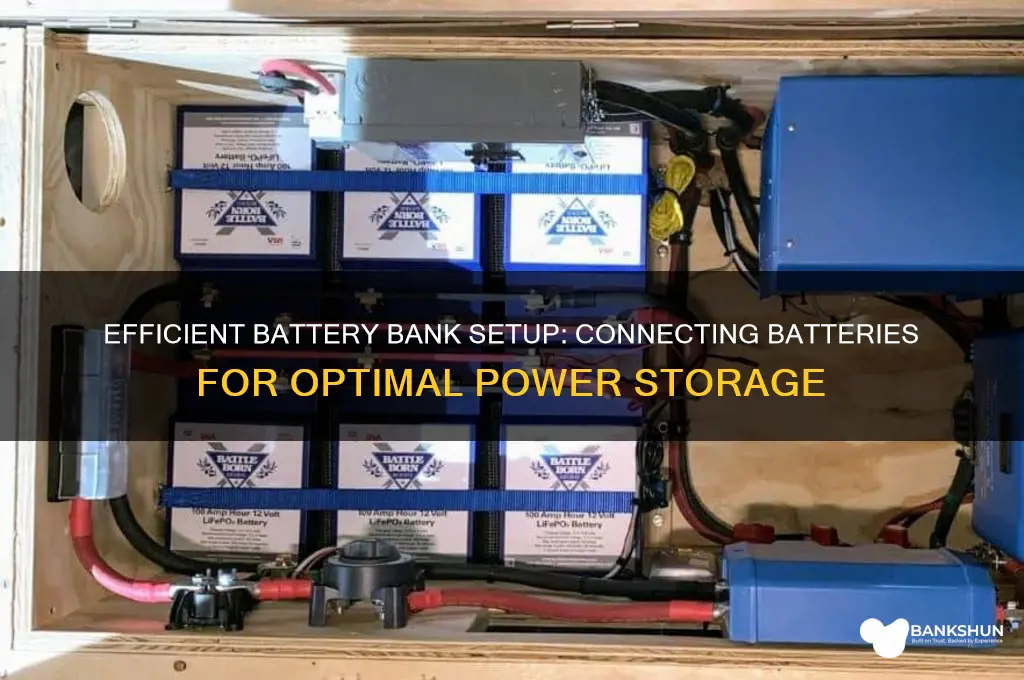

Connecting batteries to form a battery bank is a crucial step in creating a reliable and efficient power storage system, whether for off-grid solar setups, backup power, or other applications. The process involves combining multiple batteries to increase voltage, capacity, or both, depending on the specific needs of the system. There are two primary methods for connecting batteries: series and parallel. Series connections link batteries end-to-end to increase the total voltage while maintaining the same capacity, whereas parallel connections join batteries side-by-side to boost capacity while keeping the voltage constant. Understanding the correct configuration, ensuring compatibility between battery types, and using appropriate wiring and safety measures are essential to maximize performance and longevity of the battery bank.
Explore related products
What You'll Learn
- Series vs. Parallel Connections: Understand the differences and when to use each configuration
- Calculating Total Voltage: Combine battery voltages for desired system output efficiently
- Balancing Battery Capacity: Match batteries to avoid uneven charging and discharging issues
- Wiring Diagrams and Tools: Essential diagrams and tools for safe, effective connections
- Safety Precautions: Prevent short circuits, overheating, and other hazards during setup
Series vs. Parallel Connections: Understand the differences and when to use each configuration
When building a battery bank, understanding how to connect batteries in series or parallel is crucial for achieving the desired voltage and capacity. Series connections involve linking the positive terminal of one battery to the negative terminal of the next, effectively adding their voltages together while maintaining the same capacity. For example, connecting two 12V, 100Ah batteries in series results in a 24V, 100Ah battery bank. This configuration is ideal when your system requires higher voltage, such as in RVs, solar power systems, or off-grid setups that use inverters needing 24V or 48V. However, it’s important to ensure all batteries in a series connection are of the same type, capacity, and state of charge to avoid imbalances that can lead to reduced performance or damage.
On the other hand, parallel connections involve linking all positive terminals together and all negative terminals together, which increases the overall capacity while keeping the voltage the same. For instance, connecting two 12V, 100Ah batteries in parallel results in a 12V, 200Ah battery bank. This setup is advantageous when you need extended runtime at a specific voltage, such as in backup power systems or applications requiring high current draw over longer periods. Parallel connections are more forgiving than series connections because slight differences in battery capacity or age have less impact on performance. However, it’s still best to use batteries of the same type and age to ensure even charging and discharging.
Choosing between series and parallel connections depends on your system’s voltage and capacity requirements. If you need higher voltage to match the requirements of your inverter or appliances, a series connection is the way to go. Conversely, if you need more capacity to power devices for longer periods without increasing voltage, a parallel connection is more suitable. In some cases, you might combine both configurations—for example, connecting pairs of batteries in parallel and then linking those pairs in series to achieve both higher voltage and capacity.
It’s essential to consider safety and efficiency when connecting batteries. Always use appropriately sized cables and fuses to handle the current, and ensure connections are secure to prevent overheating or short circuits. Additionally, monitor the battery bank regularly, especially in series configurations, to detect and address any imbalances early. Understanding the differences between series and parallel connections empowers you to design a battery bank that meets your specific energy needs efficiently and safely.
Effective Strategies for Conducting Comprehensive Bank Stress Testing
You may want to see also
Explore related products
![[Updated Version] 3.2FT Battery Clip-on Crocodile Clamps to SAE Connector, 14AWG Solar Charger Extension Cable/Power Supply Aux Adapter/Red & Black Connecting Alligator Clips Charging Wire](https://m.media-amazon.com/images/I/61lkjEItpVL._AC_UY218_.jpg)
Calculating Total Voltage: Combine battery voltages for desired system output efficiently
When calculating the total voltage for a battery bank, the primary goal is to combine individual battery voltages to achieve the desired system output efficiently. The first step is to understand the voltage requirements of your system. Most off-grid solar systems, for example, operate on 12V, 24V, or 48V. Once you know the target voltage, you can determine how to connect your batteries in series, parallel, or a combination of both to meet that requirement. Connecting batteries in series increases the total voltage while keeping the capacity (amp-hours) the same, whereas connecting them in parallel increases the capacity while maintaining the same voltage.
To calculate the total voltage when connecting batteries in series, simply add the voltages of each battery together. For instance, if you have four 12V batteries connected in series, the total voltage will be 48V (12V + 12V + 12V + 12V). This configuration is ideal for systems requiring higher voltages, such as large solar installations or electric vehicle charging stations. Ensure all batteries in a series connection are of the same voltage and capacity to avoid imbalances that could lead to reduced performance or damage.
When connecting batteries in parallel, the total voltage remains the same as that of a single battery, but the capacity increases. For example, connecting two 12V, 100Ah batteries in parallel will still result in a 12V system but with a total capacity of 200Ah. This method is useful for systems needing higher capacity at a lower voltage, such as small off-grid cabins or backup power systems. Always use batteries of the same voltage and type when connecting in parallel to ensure even charging and discharging.
For systems requiring both higher voltage and capacity, a combination of series and parallel connections (series-parallel configuration) is necessary. For instance, to achieve a 24V system with increased capacity, you could connect two sets of two 12V batteries in parallel, and then connect these sets in series. This results in a 24V system with double the capacity of a single battery. Carefully plan the connections to ensure the total voltage and capacity meet your system’s needs while maintaining balance across the battery bank.
Lastly, always consider the limitations of your charge controller, inverter, and other system components when calculating total voltage. These devices are rated for specific voltage ranges, and exceeding these limits can cause damage or inefficiency. Use a multimeter to verify the total voltage after connecting the batteries to ensure accuracy and safety. Properly calculating and configuring your battery bank voltage ensures optimal performance, longevity, and reliability for your energy system.
Understanding 1099-R Forms: Does Your Bank Send One and Why?
You may want to see also
Explore related products
Balancing Battery Capacity: Match batteries to avoid uneven charging and discharging issues
When connecting batteries to form a battery bank, balancing battery capacity is crucial to ensure even charging and discharging. Uneven charging can lead to overcharging or undercharging of individual batteries, reducing their lifespan and efficiency. To avoid this, start by selecting batteries with the same voltage, type (e.g., lead-acid, lithium-ion), and ideally, the same age and brand. Matching these specifications ensures that all batteries in the bank have similar characteristics, promoting uniform performance. For instance, pairing a new battery with an older one can cause the newer battery to carry more load, leading to premature failure.
Once you’ve chosen compatible batteries, consider their capacity, measured in ampere-hours (Ah). Batteries with identical or very close capacities should be connected in parallel to create a larger capacity bank while maintaining the same voltage. For example, two 12V 100Ah batteries connected in parallel will provide a 12V 200Ah bank. However, if batteries with significantly different capacities are connected in parallel, the higher-capacity battery will attempt to charge the lower-capacity one, causing uneven stress. To mitigate this, use batteries with capacities within 10% of each other to ensure balanced operation.
When connecting batteries in series to increase voltage, capacity matching becomes even more critical. In a series configuration, the overall capacity of the bank is limited by the battery with the lowest capacity. For example, connecting a 100Ah battery in series with a 50Ah battery will result in a 24V 50Ah bank, as the 50Ah battery dictates the total capacity. This mismatch can lead to the lower-capacity battery being overworked during discharge, causing it to fail prematurely. Always ensure all batteries in a series configuration have the same capacity to maintain balance.
Monitoring and maintenance are essential to keep the battery bank balanced over time. Use a battery management system (BMS) or charge controller to monitor individual battery voltages and temperatures, especially in larger banks. Regularly inspect batteries for signs of swelling, leakage, or reduced performance, and replace any underperforming units promptly. Additionally, periodically equalize the batteries (if applicable) to ensure all cells are at the same state of charge, particularly in lead-acid systems.
Finally, if you must use batteries with varying capacities, consider isolating them into separate parallel groups based on their capacity ranges. Connect these groups in series to achieve the desired voltage while minimizing the impact of capacity mismatches. For example, group 100Ah batteries together and 50Ah batteries together, then connect these groups in series. This approach reduces the risk of uneven charging and discharging but requires careful planning and additional wiring. By prioritizing capacity matching and implementing these strategies, you can maintain a balanced and efficient battery bank.
Bank of the Ozarks: Drug Testing Policy Explained
You may want to see also
Explore related products
Wiring Diagrams and Tools: Essential diagrams and tools for safe, effective connections
When connecting batteries to form a battery bank, having the right wiring diagrams and tools is crucial for ensuring safety, efficiency, and longevity. Wiring diagrams serve as visual guides, illustrating how to connect batteries in series, parallel, or a combination of both, depending on your voltage and capacity requirements. For example, a series connection increases voltage while keeping the capacity the same, whereas a parallel connection increases capacity while maintaining the same voltage. Diagrams should clearly label terminals, wire paths, and fuse placements to prevent short circuits or overloading. Always use diagrams specific to your battery type (e.g., lead-acid, lithium-ion) and application (e.g., solar power, RV systems).
Essential tools for battery bank connections include a digital multimeter to verify voltage and continuity, ensuring all connections are secure and functional. Wire cutters and strippers are necessary for preparing cables, while a torque wrench ensures terminal connections are tightened to manufacturer specifications, preventing loose connections that could lead to overheating. Heat shrink tubing or electrical tape is critical for insulating exposed wires, reducing the risk of short circuits. Additionally, a fuse or circuit breaker is mandatory to protect the system from overcurrent, and a battery monitor can help track the bank's state of charge and health.
For series connections, diagrams typically show batteries connected end-to-end, with the positive terminal of one battery linked to the negative terminal of the next. This configuration requires thicker gauge wire to handle higher voltage. In parallel connections, diagrams illustrate all positive terminals connected together and all negative terminals connected together, often using a bus bar for neatness and efficiency. Bus bars are especially useful for larger battery banks, as they simplify wiring and reduce connection points, minimizing resistance and potential failure points.
When combining series and parallel connections, diagrams become more complex, showing groups of batteries wired in parallel first, then connected in series to achieve both higher voltage and capacity. This hybrid approach is common in large-scale systems like off-grid homes. Always follow the diagram meticulously, double-checking each connection before applying power. Incorrect wiring can damage batteries, void warranties, or pose safety hazards.
Finally, safety tools such as insulated gloves and safety goggles are non-negotiable when working with batteries, especially high-voltage systems. A fire extinguisher rated for electrical fires should be nearby in case of emergencies. Labeling wires and terminals with their purpose (e.g., "Positive Series Connection") can prevent confusion during maintenance or future expansions. By using the right diagrams and tools, you can build a battery bank that is safe, efficient, and tailored to your energy needs.
Revolutionizing Banking: How Technology Enhances Efficiency and Customer Experience
You may want to see also
Explore related products
Safety Precautions: Prevent short circuits, overheating, and other hazards during setup
When setting up a battery bank, safety should be your top priority to prevent short circuits, overheating, and other hazards. Always work in a well-ventilated area to avoid the buildup of potentially explosive gases emitted by lead-acid batteries. Ensure the workspace is clean, dry, and free from flammable materials. Before starting, familiarize yourself with the battery specifications, including voltage, capacity, and recommended connection methods. Wear appropriate personal protective equipment (PPE), such as insulated gloves and safety goggles, to protect against acid spills, electrical shocks, or sparks.
To prevent short circuits, double-check all connections before applying power. Use insulated tools and ensure that no metal objects, like jewelry or loose wires, can accidentally bridge the battery terminals. When connecting batteries in series or parallel, use high-quality, appropriately sized cables and connectors rated for the expected current. Avoid mixing batteries of different types, brands, or ages, as this can lead to uneven charging and discharging, increasing the risk of overheating or failure. Always connect batteries in a way that matches their polarity, ensuring positive terminals are linked to positive and negative to negative.
Overheating is a common hazard when batteries are overworked or improperly connected. To mitigate this, ensure the battery bank is not overloaded by calculating the total current draw and matching it to the battery capacity. Install a battery management system (BMS) or voltage regulator to monitor and balance the charge across all batteries. Keep the batteries in a cool, stable environment, away from direct sunlight or heat sources. Regularly inspect the battery bank for signs of swelling, leakage, or unusual heat, and address any issues immediately.
Proper grounding is essential to prevent electrical hazards. Ground the battery bank and all associated equipment to a common earth point to minimize the risk of electric shock and reduce electromagnetic interference. Use grounding straps or cables that are adequately sized for the system’s voltage and current. Additionally, install fuses or circuit breakers in each battery string to protect against overcurrent conditions, which can cause wires to overheat or melt.
Finally, always follow manufacturer guidelines and local electrical codes when setting up a battery bank. Test the system with a low-load device before connecting high-power appliances to ensure all components are functioning correctly. Label all connections clearly to avoid confusion during maintenance or future expansions. By adhering to these safety precautions, you can minimize risks and ensure a reliable, long-lasting battery bank setup.
Exploring ICICI Bank's Presence: Branch Count in Bangalore Revealed
You may want to see also
Frequently asked questions
To connect batteries in series, connect the positive terminal of the first battery to the negative terminal of the second battery, and so on. This increases the total voltage while keeping the capacity (Ah) the same. Ensure all batteries are of the same type and voltage.
To connect batteries in parallel, connect all positive terminals together and all negative terminals together. This increases the total capacity (Ah) while keeping the voltage the same. Use appropriately sized cables and ensure all batteries are of the same voltage.
It is not recommended to mix different battery types (e.g., lead-acid and lithium) or sizes (e.g., different voltages or capacities) in a battery bank. Doing so can lead to uneven charging, reduced performance, and potential damage to the batteries.
Always wear protective gear, work in a well-ventilated area, and ensure the power source is turned off before connecting batteries. Use proper cable sizes, secure connections with insulated tools, and avoid short circuits. Follow manufacturer guidelines for specific battery types.
