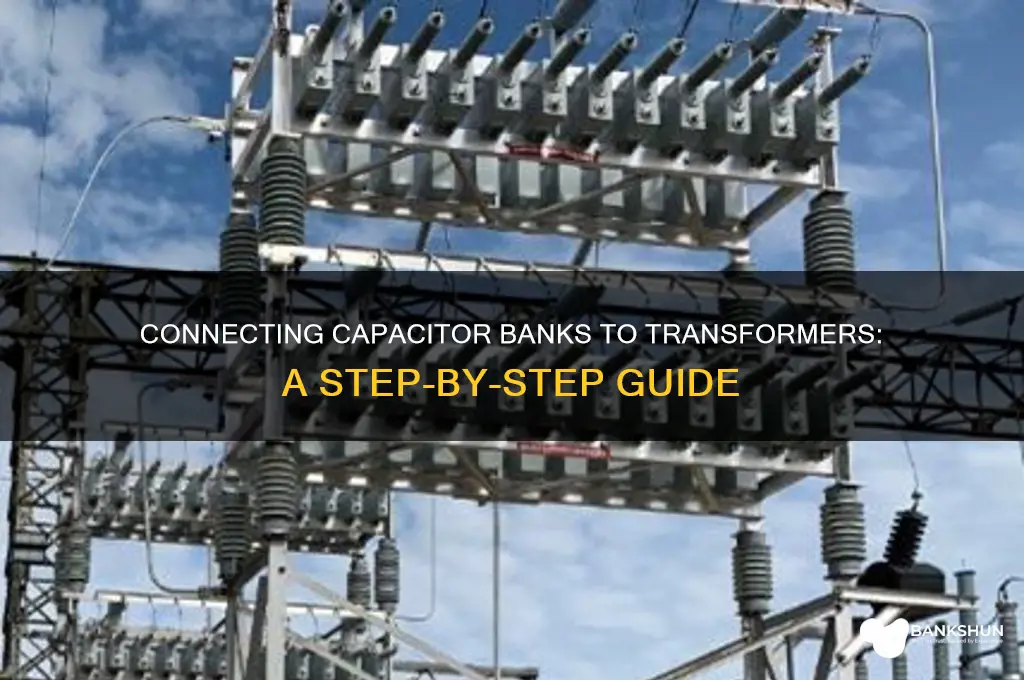

Connecting a capacitor bank to a transformer is a critical process that requires careful planning and execution to ensure optimal performance and safety. The primary purpose of this setup is to improve power factor correction, reduce energy losses, and enhance the efficiency of the electrical system. To begin, it is essential to determine the appropriate size and rating of the capacitor bank based on the transformer's specifications and the load requirements. The capacitor bank should be connected in parallel with the transformer's secondary side, typically through a switchgear or protective device to allow for controlled operation. Proper wiring and grounding are crucial to prevent electrical hazards, and the system must comply with relevant standards and regulations. Additionally, a thorough understanding of the transformer's impedance and the capacitor bank's reactive power output is necessary to avoid resonance and other potential issues. Consulting with a qualified electrical engineer is highly recommended to ensure a safe and effective installation.
Explore related products
What You'll Learn
- Determine Capacitor Bank Rating: Match bank MVAR rating to transformer kVA size and system voltage level
- Select Connection Type: Choose delta or star configuration based on transformer winding and voltage
- Install Protective Devices: Add fuses, circuit breakers, and discharge resistors for safety
- Ensure Proper Grounding: Ground neutral point and capacitor frames to prevent faults
- Verify System Resonance: Avoid harmonic amplification by checking resonance frequency with system impedance
Determine Capacitor Bank Rating: Match bank MVAR rating to transformer kVA size and system voltage level
When determining the capacitor bank rating to match the transformer kVA size and system voltage level, it is essential to follow a systematic approach to ensure optimal performance and safety. The first step is to identify the transformer's kVA rating, which represents the apparent power it can handle. This value is crucial because the capacitor bank's MVAR (Megavolt-Ampere Reactive) rating should be proportional to the transformer's capacity to avoid overloading or underutilization. A common rule of thumb is to size the capacitor bank such that the reactive power compensation does not exceed 30-40% of the transformer's kVA rating, but this can vary based on specific system requirements and load characteristics.
Next, consider the system voltage level, as the capacitor bank's rating must align with the operating voltage to ensure efficient power factor correction. Capacitors are typically rated for specific voltage levels, such as 480V, 2400V, or higher, depending on the application. The MVAR rating of the capacitor bank is directly related to the square of the system voltage (MVAR ∝ V²). Therefore, accurately measuring or confirming the system voltage is critical to calculating the appropriate capacitor bank size. For instance, a higher voltage system will require a capacitor bank with a higher MVAR rating to achieve the same level of power factor correction as a lower voltage system.
To calculate the required MVAR rating, use the formula: MVAR = (kVA × PF_desired − kVA × PF_initial), where PF_desired is the target power factor (typically close to 1 for optimal efficiency), and PF_initial is the current power factor of the system. This formula helps determine the reactive power (MVAR) needed to improve the power factor to the desired level. For example, if a 1000 kVA transformer has an initial power factor of 0.8 and the goal is to achieve a power factor of 0.95, the required MVAR can be calculated accordingly. Ensure the calculated MVAR does not exceed the recommended percentage of the transformer's kVA rating.
Additionally, consider the type of capacitors and their arrangement in the bank. Capacitors can be connected in delta or star configurations, depending on the system voltage and grounding requirements. The total MVAR rating of the bank is the sum of the individual capacitor ratings. It is also important to account for derating factors, such as temperature and harmonic content in the system, which can affect the capacitor's performance and lifespan. Derating ensures the capacitor bank operates within safe limits and avoids premature failure.
Finally, verify the compatibility of the capacitor bank with the transformer and system by consulting manufacturer specifications and industry standards. Ensure the capacitor bank includes protective devices such as fuses, circuit breakers, or discharge resistors to safeguard against overvoltage, overcurrent, or residual charge hazards. Properly matching the capacitor bank MVAR rating to the transformer kVA size and system voltage level not only improves power factor and system efficiency but also reduces energy losses and operational costs. Always consult with a qualified engineer or follow local electrical codes to ensure compliance and safety.
How to Block Someone on Chime Bank: A Step-by-Step Guide
You may want to see also
Explore related products
Select Connection Type: Choose delta or star configuration based on transformer winding and voltage
When connecting a capacitor bank to a transformer, selecting the appropriate connection type—either delta (Δ) or star (Y)—is crucial for ensuring compatibility with the transformer’s winding configuration and voltage levels. The choice depends primarily on the transformer’s secondary winding arrangement and the voltage at which the capacitor bank will operate. For instance, if the transformer’s secondary winding is configured in a delta connection, the capacitor bank should ideally be connected in a star configuration to match the phase voltage. Conversely, if the transformer’s secondary is in a star configuration, the capacitor bank can be connected in either star or delta, depending on the desired voltage distribution and system requirements.
The voltage level is a critical factor in determining the connection type. In a star connection, the phase voltage is lower than the line voltage by a factor of √3, making it suitable for systems where the capacitor bank is rated for lower voltages. For example, if the transformer’s secondary line voltage is 415V, the phase voltage in a star connection would be approximately 240V, which is ideal for capacitors rated at this level. On the other hand, a delta connection exposes the capacitor bank to the full line voltage, which is necessary if the capacitors are rated for higher voltages or if the system requires maximum voltage utilization.
Another consideration is the transformer’s winding insulation and the capacitor bank’s voltage rating. If the transformer’s secondary winding is insulated for line voltage, a delta-connected capacitor bank can be directly connected without risking insulation failure. However, if the winding is insulated for phase voltage, a star connection is safer to avoid exceeding the insulation limits. Always verify the transformer’s specifications and the capacitor bank’s voltage ratings to ensure compatibility and prevent damage.
The system’s reactive power compensation requirements also influence the connection type. A delta connection provides higher capacitance per phase compared to a star connection for the same capacitor bank rating, making it more effective for systems with significant reactive power demands. However, a star connection is often preferred for its lower phase voltage stress and easier integration with existing systems. Evaluate the system’s reactive power needs and voltage constraints to determine the most suitable configuration.
Lastly, consider the harmonics and resonance risks in the system. Delta-connected capacitor banks can amplify third-harmonic currents if not properly filtered, while star connections are less prone to this issue. If harmonics are a concern, a star connection with a neutral point may be preferable, as it allows for the installation of harmonic filters or reactors to mitigate resonance. Always perform a harmonic analysis and consult system specifications before finalizing the connection type. By carefully evaluating the transformer winding, voltage levels, insulation, reactive power needs, and harmonic risks, you can select the optimal delta or star configuration for connecting the capacitor bank to the transformer.
Add Beneficiary in ICICI Net Banking: A Step-by-Step Guide
You may want to see also
Explore related products
Install Protective Devices: Add fuses, circuit breakers, and discharge resistors for safety
When connecting a capacitor bank to a transformer, installing protective devices is crucial to ensure safety, prevent damage, and comply with electrical standards. Fuses are the first line of defense in this setup. Select fuses with a current rating that matches the capacitor bank’s maximum operating current. Install these fuses in series with the capacitor bank to protect against overcurrent conditions, such as short circuits or excessive inrush currents during switching. Ensure the fuses are easily accessible for inspection and replacement, and verify they are compatible with the system voltage and frequency.
Circuit breakers provide additional protection and operational flexibility. Choose a circuit breaker with a trip curve suited to the capacitor bank’s characteristics, typically a Type C or Type K breaker for inrush current tolerance. Install the circuit breaker in series with the capacitor bank, upstream of the fuses, to allow for manual isolation and automatic disconnection in case of faults. Ensure the breaker is rated for the system voltage and has sufficient interrupting capacity to handle potential fault currents. Regularly test the circuit breaker to ensure it operates correctly.
Discharge resistors are essential for safety, as capacitors store energy even after the power is disconnected. Install discharge resistors across each capacitor or the entire bank to dissipate residual charge. The resistor value should be calculated to discharge the capacitors to a safe voltage level (typically below 50V) within 5 minutes. Connect the resistors permanently across the capacitor terminals or use a switchable mechanism for periodic discharge. Ensure the resistors are rated for the expected power dissipation and are securely mounted to prevent overheating.
Proper wiring and connections are critical when installing these protective devices. Use appropriately sized cables and lugs to connect the fuses, circuit breakers, and discharge resistors to the capacitor bank and transformer. Ensure all connections are tight and free of corrosion to minimize resistance and heat generation. Label each device clearly for easy identification and maintenance. Follow local electrical codes and manufacturer guidelines for installation practices, grounding, and clearance requirements.
Finally, conduct a thorough inspection and testing after installation. Verify that the fuses, circuit breakers, and discharge resistors are functioning correctly and are properly integrated into the system. Perform a residual voltage test on the capacitors after power disconnection to confirm the discharge resistors are effective. Document the installation details, including device ratings and test results, for future reference and compliance purposes. By meticulously installing these protective devices, you ensure the capacitor bank operates safely and reliably when connected to the transformer.
Capital One's Banking Network: How Many Banks Does It Operate?
You may want to see also
Explore related products
$37.71
Ensure Proper Grounding: Ground neutral point and capacitor frames to prevent faults
Grounding is a critical aspect of connecting a capacitor bank to a transformer, as it ensures safety, prevents faults, and maintains system stability. The neutral point of the transformer must be securely grounded to provide a reference point for the system and to mitigate the risk of voltage imbalances. This grounding point serves as a path for fault currents, allowing protective devices to detect and isolate faults quickly. Ensure that the grounding conductor is of adequate size and material to handle fault currents without overheating or failing. Follow local electrical codes and standards to determine the appropriate grounding requirements for your specific application.
In addition to grounding the neutral point, it is essential to ground the capacitor frames to prevent the buildup of static charges and to provide a safe path for fault currents. Capacitor frames are often made of conductive materials, and without proper grounding, they can become energized, posing a significant safety hazard. Use dedicated grounding lugs provided on the capacitor frames and connect them to the main grounding system using low-impedance conductors. Avoid using long or convoluted grounding paths, as these can increase resistance and reduce the effectiveness of the grounding system.
The grounding system should be designed to minimize ground loops and ensure a single, unified grounding point for the entire installation. This is particularly important in three-phase systems, where improper grounding can lead to circulating currents and increased losses. Connect the neutral point of the transformer and the capacitor frames to a common grounding electrode, such as a grounding grid or rod, to maintain a consistent ground potential. Regularly inspect the grounding connections for corrosion, looseness, or damage, as these issues can compromise the integrity of the grounding system.
When installing the grounding conductors, ensure they are properly labeled and identifiable to facilitate maintenance and troubleshooting. Use color-coded or tagged conductors to distinguish grounding wires from other system conductors. Additionally, ensure that the grounding system is compatible with the overall electrical infrastructure, including the transformer, capacitor bank, and associated switchgear. Coordination with other grounding systems, such as those for lightning protection or electronic equipment, is also crucial to avoid conflicts and ensure comprehensive protection.
Finally, test the grounding system after installation to verify its effectiveness. Perform ground resistance measurements using a ground tester to ensure that the resistance is within acceptable limits, typically less than 5 ohms for most industrial applications. Conduct insulation resistance tests to confirm that there are no unintended connections between the grounding system and live conductors. Regularly repeat these tests as part of a preventive maintenance program to identify and address any degradation in the grounding system before it leads to faults or failures. Proper grounding is not just a safety measure—it is a fundamental requirement for the reliable operation of a capacitor bank connected to a transformer.
Regional Banks: Rate Cuts, Good or Bad?
You may want to see also
Explore related products
Verify System Resonance: Avoid harmonic amplification by checking resonance frequency with system impedance
When connecting a capacitor bank to a transformer, it is crucial to verify system resonance to avoid harmonic amplification, which can lead to equipment damage, overheating, and reduced system efficiency. Resonance occurs when the capacitive reactance of the capacitor bank matches the inductive reactance of the system, creating a low-impedance path for specific frequencies. To prevent this, start by identifying the system’s natural resonance frequencies through impedance measurements or simulation tools. Use tools like impedance analyzers or software such as ETAP or PSCAD to model the system and predict resonance points. This step ensures you understand the system’s behavior before capacitor installation.
Next, measure the system impedance at various frequencies to pinpoint potential resonance conditions. Connect an impedance analyzer to the transformer-capacitor bank setup and sweep through the frequency range of interest, typically up to the 25th harmonic (1.5 kHz for a 60 Hz system). Record the impedance values and identify frequencies where impedance drops significantly, indicating resonance. Compare these frequencies with known harmonic sources in the system, such as variable speed drives or nonlinear loads, to assess the risk of amplification. If resonance frequencies align with harmonic-rich frequencies, adjustments are necessary.
To mitigate resonance risks, consider installing detuning reactors in series with the capacitor bank. Detuning reactors slightly shift the resonance frequency away from harmonic-rich bands, reducing the likelihood of amplification. Select the reactor size based on the capacitor bank’s rating and the desired detuning percentage (typically 7-10%). Alternatively, use fixed or switchable capacitors to fine-tune the capacitance and avoid exact resonance conditions. Ensure the detuning solution is validated through simulations or field measurements before final implementation.
Monitor the system post-installation to confirm resonance is avoided. Use power quality analyzers to measure harmonic levels and system impedance under normal operating conditions. Continuously log data for at least one week to capture varying load conditions and identify any emerging resonance issues. If harmonic distortion or overheating occurs, re-evaluate the detuning strategy and adjust as needed. Regular maintenance and periodic resonance checks are essential to ensure long-term system stability.
Finally, document the resonance verification process and findings for future reference. Include details such as measured impedance curves, detuning reactor specifications, and harmonic analysis results. This documentation aids in troubleshooting and serves as a baseline for future system modifications. By systematically verifying system resonance and addressing potential issues, you ensure the capacitor bank operates safely and efficiently without amplifying harmonics.
Understanding How Banks Calculate Your Average Quarterly Balance
You may want to see also
Frequently asked questions
Connecting a capacitor bank to a transformer helps improve power factor by supplying reactive power, reducing losses, and enhancing the efficiency of the electrical system.
A capacitor bank should be connected in parallel with the transformer to correct power factor and provide reactive power compensation without affecting the transformer's primary or secondary windings.
Ensure the capacitor bank is rated for the system voltage, use proper protective devices (e.g., fuses or circuit breakers), and follow manufacturer guidelines to prevent overvoltage, harmonics, or resonance issues.
Yes, a capacitor bank can be connected directly to the transformer's secondary side, but it must be properly sized and coordinated with the load to avoid overcompensation or instability in the system.
