Connecting circuits to a battery bank requires careful planning and execution to ensure safety, efficiency, and reliability. Begin by determining the voltage and current requirements of your circuit, ensuring compatibility with the battery bank's specifications. Use appropriately rated wires and connectors to handle the expected load, and incorporate fuses or circuit breakers to protect against overcurrent. Connect the positive terminal of the circuit to the battery bank's positive terminal and the negative terminal to the negative terminal, maintaining polarity to avoid damage. For larger systems, consider using a battery management system (BMS) to monitor and balance individual battery cells, especially in series configurations. Always double-check connections for tightness and insulation to prevent short circuits, and test the setup under controlled conditions before full operation. Proper grounding and labeling of wires can further enhance safety and troubleshooting efficiency.
| Characteristics | Values |
|---|---|
| Connection Type | Series, Parallel, or Combination (Series-Parallel) |
| Voltage Matching | Ensure circuit voltage matches battery bank voltage (e.g., 12V, 24V, 48V) |
| Current Capacity | Battery bank must meet or exceed circuit's maximum current draw |
| Fuse/Breaker Protection | Install fuses or circuit breakers to prevent overcurrent |
| Wiring Gauge | Use appropriate wire gauge based on current and length (e.g., AWG 10-4) |
| Polarity | Connect positive (+) to positive and negative (-) to negative |
| Battery Management System (BMS) | Required for lithium batteries to monitor voltage, temperature, and balance |
| Temperature Considerations | Avoid extreme temperatures; ensure proper ventilation |
| Load Distribution | Distribute load evenly across parallel-connected batteries |
| Disconnect Switch | Install a master disconnect switch for safety |
| Grounding | Ground the system to prevent electrical hazards |
| Charging Compatibility | Ensure battery bank is compatible with charging source (e.g., solar, grid) |
| Maintenance | Regularly inspect connections, clean terminals, and monitor battery health |
| Safety Gear | Use insulated tools and wear protective gear during installation |
| Labeling | Label wires and components for easy identification |
| Compliance | Follow local electrical codes and standards |
Explore related products
What You'll Learn
- Battery Bank Configuration: Series vs. parallel connections for desired voltage and capacity
- Wiring and Connectors: Proper gauge wires and connectors for safe, efficient power transfer
- Fuses and Breakers: Protect circuits with correctly sized fuses or circuit breakers
- Voltage Regulation: Use charge controllers or converters to maintain stable power output
- Monitoring Systems: Install battery monitors to track charge levels and system health

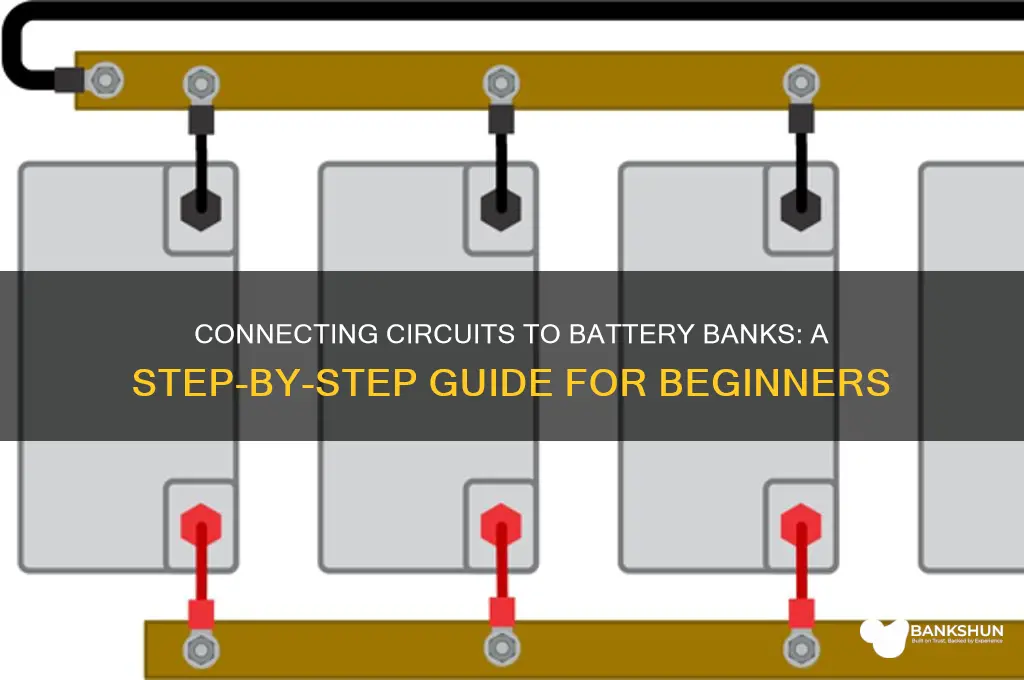

Battery Bank Configuration: Series vs. parallel connections for desired voltage and capacity
When configuring a battery bank, understanding the difference between series and parallel connections is crucial to achieving the desired voltage and capacity for your circuit. Series connections involve linking batteries end-to-end, where the positive terminal of one battery connects to the negative terminal of the next. This configuration increases the total voltage of the battery bank while keeping the capacity (ampere-hours, Ah) the same as a single battery. For example, connecting two 12V, 100Ah batteries in series results in a 24V, 100Ah battery bank. Series connections are ideal when your circuit requires higher voltage but can operate with the same capacity as a single battery.
On the other hand, parallel connections involve linking the positive terminals of all batteries together and the negative terminals together. This setup maintains the voltage of a single battery while increasing the total capacity. For instance, connecting two 12V, 100Ah batteries in parallel results in a 12V, 200Ah battery bank. Parallel connections are suitable when your circuit requires higher capacity at the same voltage. It’s important to ensure all batteries in a parallel configuration are of the same voltage and capacity to avoid imbalances that could lead to overheating or reduced performance.
Combining series and parallel connections allows for customization of both voltage and capacity. For example, to create a 24V, 200Ah battery bank, you could connect two sets of two 12V, 100Ah batteries in parallel, and then connect these sets in series. This approach provides flexibility but requires careful planning to ensure compatibility and safety. Always use batteries of the same type, age, and brand to prevent issues caused by mismatched characteristics.
When connecting circuits to a battery bank, ensure the voltage matches the circuit’s requirements. For instance, a 12V circuit should be connected to a 12V battery bank, whether it’s a single battery or multiple batteries in parallel. If the circuit requires higher voltage, a series-connected battery bank is necessary. Additionally, consider the current draw of the circuit to ensure the battery bank’s capacity can sustain the load without excessive discharge, which can shorten battery life.
Proper wiring and safety measures are essential when configuring battery banks. Use appropriately sized cables to handle the current, and incorporate fuses or circuit breakers to protect against overcurrent. Label connections clearly to avoid confusion, especially in mixed series-parallel configurations. Regularly monitor the battery bank’s voltage and capacity to ensure it operates within safe limits and meets the circuit’s demands. Understanding these principles ensures efficient and safe integration of circuits with battery banks.
