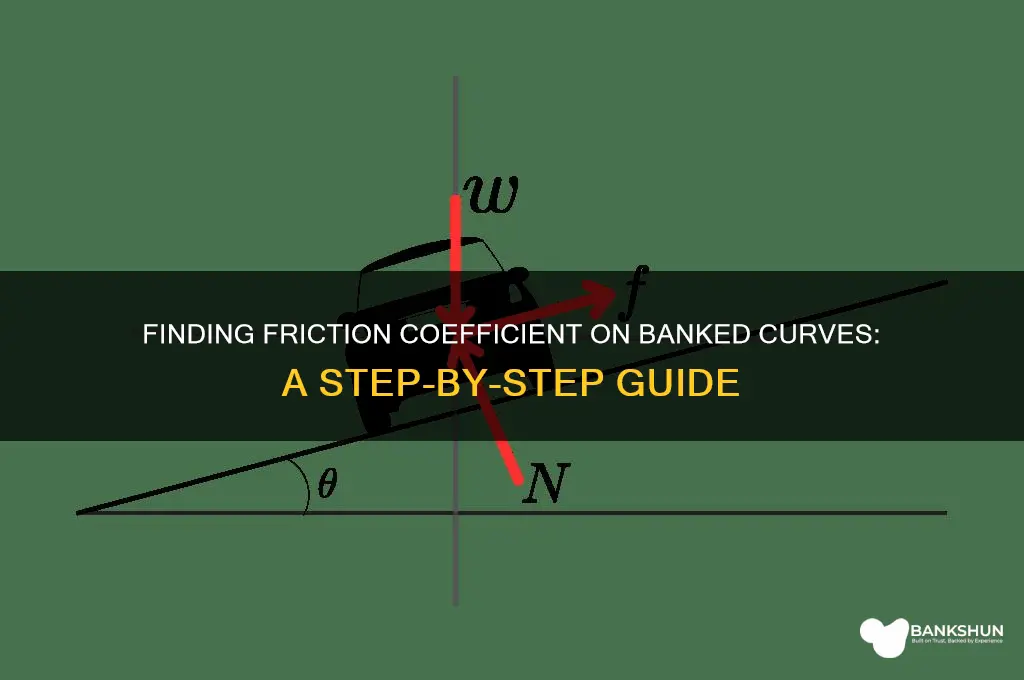

Finding the coefficient of friction on a banked curve is a critical aspect of understanding vehicle dynamics and road safety. When a vehicle navigates a curved path, the banking angle of the road helps balance the centrifugal force acting on the vehicle, reducing the reliance on friction alone to keep it on track. However, friction still plays a significant role, especially when the banking angle is insufficient or when vehicles travel at speeds higher than the curve’s design speed. The coefficient of friction can be determined by analyzing the forces acting on the vehicle, including gravity, normal force, and centrifugal force, and solving for the frictional force required to maintain equilibrium. This involves using principles of physics, such as Newton’s laws of motion and trigonometry, to derive an equation that relates the banking angle, vehicle speed, curve radius, and the friction coefficient. Understanding this process is essential for engineers designing roads, racetracks, or analyzing vehicle performance in curved paths.
| Characteristics | Values |
|---|---|
| Formula for Friction Coefficient (μ) | μ = (tan(θ) - v²/rg) / (1 + tan(θ) * v²/rg) |
| Angle of Banking (θ) | Angle between the horizontal and the banked road surface. Measured in degrees (°) or radians (rad). |
| Vehicle Speed (v) | Speed of the vehicle moving along the banked curve. Measured in meters per second (m/s) or kilometers per hour (km/h). |
| Radius of Curvature (r) | Radius of the circular path followed by the vehicle. Measured in meters (m). |
| Gravitational Acceleration (g) | Acceleration due to gravity, approximately 9.81 m/s² on Earth. |
| Optimal Speed for No Friction (v₀) | v₀ = √(rg * tan(θ)) |
| Friction Coefficient Range | Typically between 0 (no friction) and 1 (high friction), depending on road surface and tire conditions. |
| Units of Measurement | Ensure consistency in units (e.g., m, m/s, rad) for accurate calculations. |
| Assumptions | Uniform circular motion, no slipping, and negligible air resistance. |
| Practical Applications | Used in road design, racing, and vehicle dynamics to ensure safe cornering speeds. |
Explore related products
What You'll Learn
- Understanding Banked Curves: Basics of curved surfaces, banking angle, and its role in reducing friction
- Centripetal Force Calculation: Determining forces acting on an object moving along a banked curve
- Friction and Normal Force: Relationship between frictional force, normal force, and banking angle
- No-Friction Scenario: Analyzing motion on a banked curve without friction to isolate variables
- Experimental Methods: Techniques to measure friction coefficient using real-world or simulated setups
Understanding Banked Curves: Basics of curved surfaces, banking angle, and its role in reducing friction
Banked curves are a marvel of engineering, designed to allow vehicles to navigate turns at higher speeds with greater stability. The key to their effectiveness lies in the banking angle, which redistributes forces acting on a vehicle, reducing the reliance on friction alone to maintain control. When a car enters a flat curve, it depends heavily on the friction between the tires and the road to prevent skidding. However, on a banked curve, the angle of the surface shifts the vehicle’s weight, creating a component of force that pulls it toward the center of the curve. This reduces the demand on friction, allowing for safer and faster navigation.
To understand the role of the banking angle, consider the forces at play. On a flat curve, the centripetal force required to keep a vehicle moving in a circular path is entirely provided by friction. On a banked curve, this force is shared between friction and the horizontal component of the normal force exerted by the road. The banking angle, denoted as θ, is carefully calculated to balance these forces, ensuring the vehicle remains stable without excessive reliance on friction. For example, a curve banked at 45 degrees allows a vehicle to travel at higher speeds with minimal friction, as the normal force takes on a larger share of the centripetal requirement.
Calculating the coefficient of friction on a banked curve involves analyzing the relationship between the banking angle, vehicle speed, and the radius of the curve. The formula for the coefficient of friction (μ) is derived from the equation: tan(θ) = (v² / r g) - μ, where v is the vehicle’s speed, r is the radius of the curve, and g is the acceleration due to gravity. By rearranging this equation, engineers can determine the minimum friction coefficient required for a given banking angle and speed. For instance, a curve with a 30-degree banking angle and a radius of 100 meters would require a lower friction coefficient at 50 km/h compared to a flat curve under the same conditions.
Practical applications of banked curves extend beyond highways to racetracks, roller coasters, and even aircraft runways. In racetracks, banking angles are optimized to allow drivers to maintain high speeds through turns without losing control. For example, the Daytona International Speedway features a 31-degree banking angle, enabling speeds over 200 mph. Similarly, roller coasters use banked curves to enhance rider comfort and safety by minimizing lateral forces. Understanding these principles allows engineers to design curves that balance speed, safety, and efficiency, reducing wear on tires and improving overall performance.
In conclusion, the banking angle of a curve is a critical factor in reducing friction and enhancing stability. By redistributing forces, it allows vehicles to navigate turns at higher speeds with less dependence on friction alone. Calculating the coefficient of friction on a banked curve involves precise analysis of the banking angle, speed, and curve radius. Whether on highways or racetracks, this principle demonstrates the intersection of physics and engineering, offering practical solutions to real-world challenges. Mastering these basics not only improves safety but also unlocks new possibilities in transportation and design.
