Jake Miller

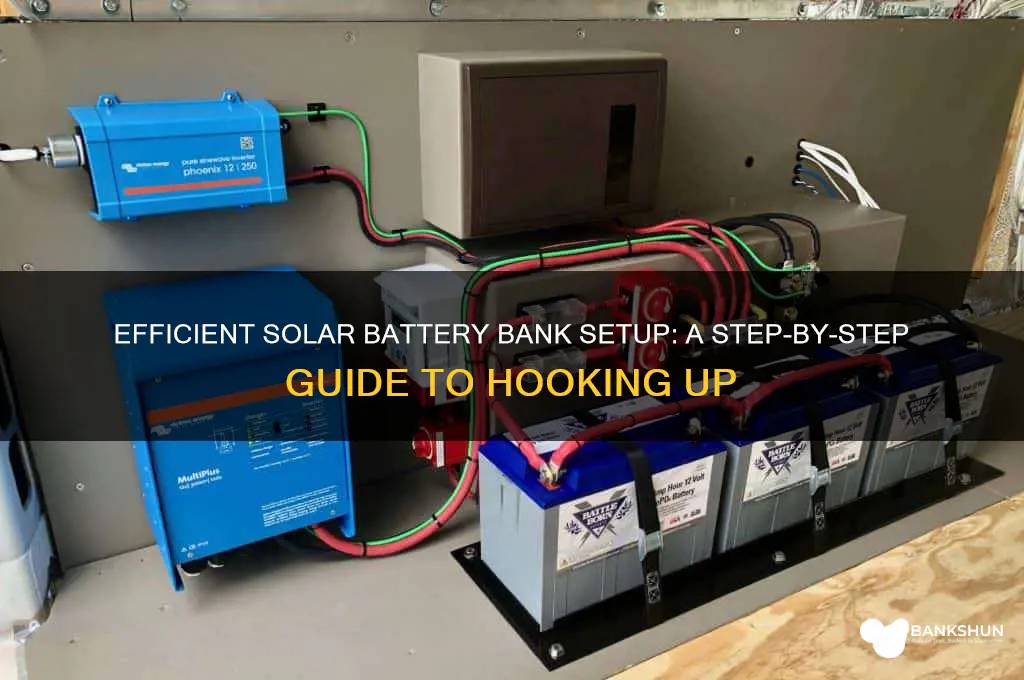

Setting up a solar battery bank is a crucial step in creating an efficient and reliable off-grid or backup power system. By connecting solar panels to a battery bank, you can store excess energy generated during the day for use at night or during periods of low sunlight. The process involves selecting the right components, such as deep-cycle batteries, a charge controller, and an inverter, and ensuring they are properly sized and compatible with your solar array. Correct wiring and safety measures, like using fuses and grounding, are essential to prevent hazards and optimize performance. Understanding the basics of solar battery bank installation not only maximizes energy efficiency but also ensures a sustainable and cost-effective power solution for your home or project.
Explore related products
What You'll Learn
- Choosing the Right Batteries: Select deep-cycle batteries (lead-acid, lithium) based on capacity, voltage, and system needs
- Wiring Batteries in Series/Parallel: Connect batteries to achieve desired voltage/capacity; series for higher voltage, parallel for more capacity
- Charge Controller Installation: Install a charge controller to regulate solar energy flow and prevent overcharging
- Inverter Setup: Add an inverter to convert DC power from batteries to AC for household use
- Safety and Maintenance: Ensure proper ventilation, secure connections, and regular checks for longevity and safety
Choosing the Right Batteries: Select deep-cycle batteries (lead-acid, lithium) based on capacity, voltage, and system needs
Deep-cycle batteries are the backbone of any solar battery bank, designed to withstand repeated charging and discharging cycles. Unlike starter batteries, which deliver short bursts of high energy, deep-cycle batteries provide steady power over extended periods, making them ideal for solar systems. When selecting batteries, the first decision is between lead-acid and lithium options. Lead-acid batteries, including flooded and sealed (AGM or gel) variants, are cost-effective and reliable but require maintenance and have a lower energy density. Lithium batteries, such as lithium iron phosphate (LiFePO4), offer higher efficiency, longer lifespans, and lighter weights but come at a premium price. Your choice depends on budget, maintenance willingness, and system demands.
Capacity, measured in ampere-hours (Ah), determines how much energy a battery can store. Calculate your daily energy consumption in watt-hours (Wh) by adding up the power needs of all connected devices and their usage hours. For example, if your system requires 2,000 Wh per day and your battery voltage is 12V, divide 2,000 Wh by 12V to get approximately 167 Ah. Always oversize your battery bank by 20–30% to account for inefficiencies and future expansion. Keep in mind that lead-acid batteries should not be discharged below 50% to avoid damage, while lithium batteries can safely discharge to 80–100%.
Voltage compatibility is critical for seamless integration with your solar system. Most residential systems operate at 12V, 24V, or 48V. Higher voltage systems reduce energy loss and are more efficient for larger setups. To achieve the desired voltage, connect batteries in series (positive to negative) to add their voltages. For instance, four 12V batteries in series create a 48V system. Ensure your charge controller, inverter, and other components match the battery bank’s voltage to prevent damage or inefficiency.
System needs dictate battery type and configuration. For off-grid homes with high energy demands, lithium batteries are often the better choice due to their higher discharge rates and longer lifespans. In contrast, lead-acid batteries may suffice for smaller, budget-conscious systems with lower energy requirements. Consider environmental factors as well: lithium batteries perform better in extreme temperatures, while lead-acid batteries may require insulation or ventilation. Always consult manufacturer specifications and seek professional advice for complex setups.
In summary, choosing the right batteries involves balancing capacity, voltage, and system requirements with your budget and maintenance preferences. Lead-acid batteries offer affordability but demand care, while lithium batteries provide superior performance at a higher cost. Calculate your energy needs accurately, ensure voltage compatibility, and tailor your choice to your system’s scale and environment. A well-selected battery bank maximizes efficiency, longevity, and reliability, ensuring your solar system operates smoothly for years to come.
Smart Mortgage Decisions: Choosing the Right Bank for Your Home Loan
You may want to see also
Explore related products
Wiring Batteries in Series/Parallel: Connect batteries to achieve desired voltage/capacity; series for higher voltage, parallel for more capacity
Connecting batteries in series or parallel is a fundamental technique for tailoring your solar battery bank to meet specific voltage and capacity requirements. In a series configuration, batteries are linked end-to-end, increasing the total voltage while keeping the capacity constant. For example, wiring two 12V, 100Ah batteries in series results in a 24V, 100Ah system, ideal for powering higher-voltage appliances like inverters or certain off-grid systems. Conversely, a parallel setup connects batteries side-by-side, doubling the capacity while maintaining the voltage. Two 12V, 100Ah batteries wired in parallel yield a 12V, 200Ah system, perfect for extended runtime in low-voltage applications.
When wiring in series, ensure all batteries are of the same voltage and type to prevent imbalances that could lead to overcharging or undercharging. Use thick, high-quality cables to minimize voltage drop, especially in larger systems. For instance, a 48V system using four 12V batteries in series requires robust wiring to handle the increased current flow. In parallel configurations, focus on matching battery capacities and states of charge to avoid one battery draining faster than others. A slight mismatch can lead to inefficiency or premature failure, so consider using batteries from the same batch or manufacturer.
Safety is paramount in both configurations. Always disconnect the battery bank from the solar charge controller or inverter before making connections. Use insulated tools and wear protective gear to prevent short circuits. In series setups, be mindful of the higher voltages, which can pose a greater risk of electrical shock. For parallel systems, install fuses or circuit breakers on each battery’s positive terminal to protect against overcurrent. Regularly inspect connections for corrosion or looseness, as these can reduce efficiency or cause overheating.
Combining series and parallel wiring allows for even greater customization. For example, to create a 24V, 200Ah system, wire two sets of two 12V, 100Ah batteries in parallel, then connect these sets in series. This hybrid approach maximizes both voltage and capacity, making it suitable for demanding off-grid setups. However, complexity increases with mixed configurations, so label each battery and connection clearly to avoid confusion during maintenance or troubleshooting.
In practice, the choice between series and parallel wiring depends on your solar system’s load requirements. If you’re powering a cabin with 12V LED lights and a small fridge, a parallel setup might suffice. For a larger home with high-voltage appliances like air conditioners or water pumps, series wiring is often necessary. Always consult your solar system’s specifications and consider consulting a professional for systems exceeding 48V or 800Ah, as these require advanced planning and safety measures. By understanding these wiring principles, you can optimize your solar battery bank for efficiency, longevity, and performance.
Steps to Launch Your Career as a Bank Trust Officer
You may want to see also
Explore related products
Charge Controller Installation: Install a charge controller to regulate solar energy flow and prevent overcharging
A charge controller is the unsung hero of your solar battery bank setup, acting as a gatekeeper between your solar panels and batteries. Its primary role is to regulate the flow of electricity, ensuring your batteries charge efficiently without the risk of overcharging, which can significantly reduce their lifespan. Without a charge controller, your system is akin to a car without brakes—functional but dangerously unpredictable.
Installation begins with selecting the right charge controller for your system. There are two main types: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking). PWM controllers are simpler and more affordable, suitable for smaller systems with panels closely matched to battery voltage. MPPT controllers, while pricier, are more efficient, especially in larger systems or when panel voltage exceeds battery voltage. For a 12V battery bank, an MPPT controller can improve efficiency by up to 30%, making it a worthwhile investment for long-term savings.
Mounting the charge controller requires strategic placement. Position it in a dry, well-ventilated area, close to both the battery bank and solar panels to minimize energy loss from long cable runs. Ensure it’s easily accessible for monitoring and maintenance. Secure it to a non-conductive surface using screws or brackets, and avoid areas prone to extreme temperatures, as heat can degrade its performance.
Wiring the charge controller follows a specific sequence. Start by connecting the battery to the charge controller’s battery terminals, ensuring polarity is correct. Next, link the solar panels to the controller’s solar input terminals. Always connect the battery first to prevent damage to the controller. Use appropriately sized cables—for a 100-watt solar panel system, 10-gauge wire is typically sufficient. Double-check connections with a multimeter to confirm voltage compatibility before powering on.
Post-installation, configure the charge controller settings. Most modern controllers have programmable parameters like battery type (lead-acid, lithium-ion), voltage set points, and load control. For a 12V lead-acid battery, set the absorption voltage to 14.4V and the float voltage to 13.6V to optimize charging without overloading. Refer to the manufacturer’s manual for precise settings tailored to your battery chemistry and system size.
Regular maintenance ensures longevity. Periodically inspect the charge controller for loose connections, corrosion, or error codes displayed on its screen. Clean the unit and vents to prevent dust buildup, which can cause overheating. Monitor performance using the controller’s display or a connected monitoring system to catch inefficiencies early. A well-maintained charge controller not only protects your battery bank but also maximizes the return on your solar investment.
QuickBooks Guide: Easily Add Vendor Bank Details for Seamless Payments
You may want to see also
Explore related products
Inverter Setup: Add an inverter to convert DC power from batteries to AC for household use
The heart of any solar battery bank system is the inverter, a critical component that bridges the gap between the stored DC power in your batteries and the AC power your household appliances crave. Without it, your solar energy remains trapped in a form incompatible with most modern devices.
Inverter selection demands careful consideration. Wattage rating is paramount; choose an inverter capable of handling your peak power consumption, typically 20-30% higher than your average daily usage. For example, a household consuming 5,000 watt-hours daily should opt for a 6,000-7,000 watt inverter. Pure sine wave inverters, while pricier than modified sine wave models, are essential for powering sensitive electronics like computers and TVs, ensuring clean, stable power without interference.
Installation requires precision and safety. Connect the inverter's DC input terminals directly to your battery bank, ensuring polarity alignment (positive to positive, negative to negative). Grounding is crucial; connect the inverter's grounding terminal to a dedicated ground rod or your home's grounding system. Secure all connections with appropriate torque specifications, using marine-grade connectors for outdoor installations to withstand environmental factors.
Regular maintenance is key to longevity. Keep the inverter clean and well-ventilated, free from dust and debris. Monitor battery voltage levels to prevent over-discharge, which can damage both batteries and inverter. Periodic firmware updates, if available, ensure optimal performance and address potential vulnerabilities.
While DIY installation is possible, consulting a qualified electrician is highly recommended, especially for larger systems or those integrated with the grid. They can ensure compliance with local codes, proper grounding, and safe interconnection with your home's electrical panel. Remember, a well-chosen and properly installed inverter is the linchpin of your solar battery bank system, transforming stored sunlight into the power that fuels your daily life.
Equity Bank Receiving Funds: Are There Charges Involved?
You may want to see also
Explore related products
Safety and Maintenance: Ensure proper ventilation, secure connections, and regular checks for longevity and safety
Proper ventilation is non-negotiable when setting up a solar battery bank. Batteries, especially lead-acid types, release hydrogen gas during charging, which is highly flammable. Accumulation in an enclosed space can lead to explosions. Ensure your battery bank is housed in a well-ventilated area, ideally with passive vents or an exhaust fan. For lithium-ion batteries, while they produce less gas, heat buildup remains a concern. Maintain at least 6 inches of clearance around the batteries and avoid placing them in direct sunlight or near heat sources. Regularly inspect vents for blockages caused by dust, debris, or insect nests, and clean them as needed.
Secure connections are the backbone of a safe and efficient solar battery bank. Loose or corroded terminals can lead to voltage drops, overheating, or even fires. Use torque wrenches to tighten terminals to manufacturer specifications—typically 12–15 lb-ft for lead-acid batteries. Apply a thin layer of petroleum jelly or anti-corrosion grease to terminals to prevent oxidation. For high-current systems, consider using battery interconnect cables with fused links to protect against short circuits. Inspect connections monthly for signs of wear, corrosion, or melting, and replace damaged components immediately.
Regular checks are the key to longevity and safety. Create a maintenance schedule that includes monthly visual inspections and quarterly performance tests. Check battery fluid levels in lead-acid batteries, ensuring they cover the plates by 1/8–1/4 inch; use distilled water to top off as needed. Test the specific gravity of each cell with a hydrometer (1.265–1.299 is ideal for fully charged batteries). For lithium-ion batteries, monitor the battery management system (BMS) for voltage and temperature anomalies. Annually, perform a load test by discharging the battery bank to 50% capacity and observing recovery time. Replace batteries that fail to meet 80% of their rated capacity.
Comparing maintenance practices between lead-acid and lithium-ion batteries highlights the importance of tailoring your approach. Lead-acid batteries require more hands-on care, including fluid checks and equalization charging every 6 months to prevent stratification. Lithium-ion batteries, while lower maintenance, demand vigilance for BMS alerts and temperature control. Both types benefit from keeping the battery bank clean and dry, using a damp cloth to wipe down surfaces and avoiding harsh chemicals. Investing in a battery monitor or smart shunt provides real-time data on state of charge, voltage, and current, enabling proactive maintenance.
Finally, safety should always trump convenience. Install a battery disconnect switch within easy reach to isolate the system during maintenance or emergencies. Label all components clearly, including polarity markings and voltage ratings. Keep a Class C fire extinguisher nearby, specifically designed for electrical fires. Educate all household members on basic safety protocols, such as avoiding metal tools near batteries and never touching terminals with bare hands. By prioritizing ventilation, secure connections, and regular checks, you not only protect your investment but also safeguard your home and family.
How Banking Evolved: Creating Banks
You may want to see also
Frequently asked questions
The size of your solar battery bank depends on your daily energy consumption, the number of days of autonomy you need (backup power during no sun), and your solar panel output. Calculate your daily energy usage in watt-hours (Wh), then choose a battery bank capacity that meets or exceeds this, factoring in depth of discharge (DoD) and efficiency losses.
Batteries can be connected in series (to increase voltage) or parallel (to increase capacity). For most solar systems, a combination of both is used. Ensure all batteries are of the same type, age, and capacity to avoid imbalances. Use proper wiring and fuses, and consult a wiring diagram for your specific setup.
Deep-cycle batteries are best for solar battery banks, as they are designed for repeated discharge and recharge cycles. Common options include lead-acid (flooded, AGM, or gel), lithium-ion (LiFePO4), and saltwater batteries. Lithium-ion batteries are more expensive but offer higher efficiency, longer lifespan, and lighter weight.
