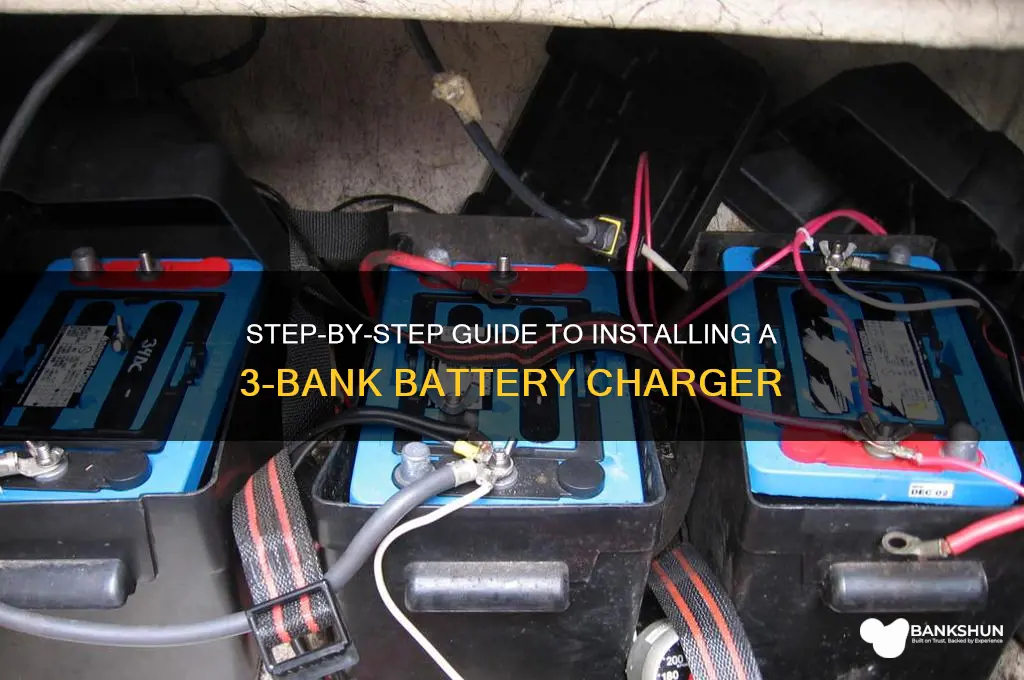

Installing a 3-bank battery charger is a practical solution for efficiently managing multiple batteries, commonly used in marine, RV, or off-grid solar systems. This setup allows simultaneous charging of three separate batteries, ensuring each receives the appropriate voltage and current without overcharging. To begin, select a charger compatible with your battery types (e.g., lead-acid, AGM, or lithium) and ensure it has sufficient amperage for your needs. Installation involves connecting the charger to a power source, typically a shore power outlet or generator, and then wiring each bank to its respective battery using proper gauge cables and fuses for safety. Follow the manufacturer’s instructions carefully, ensuring polarity is correct and connections are secure. Regularly monitor the charger’s performance and maintain batteries to maximize their lifespan and efficiency. Proper installation not only optimizes battery health but also enhances the reliability of your power system.
Explore related products
$16.99 $23.5
What You'll Learn
- Gather Tools & Materials: Wire cutters, crimpers, marine-grade wire, fuses, battery charger, mounting hardware
- Plan Battery Connections: Series or parallel setup, voltage compatibility, battery bank capacity
- Mount the Charger: Secure charger in dry, ventilated area, away from batteries
- Wire the System: Connect batteries to charger, use proper gauge wire, install fuses
- Test & Verify: Check connections, ensure proper charging, monitor voltage levels
Gather Tools & Materials: Wire cutters, crimpers, marine-grade wire, fuses, battery charger, mounting hardware
Before embarking on the installation of a 3-bank battery charger, it’s crucial to assemble the right tools and materials to ensure a seamless and safe process. Wire cutters and crimpers are your foundational tools, enabling precise cutting and secure connections of marine-grade wire, which is essential for withstanding harsh marine environments. Marine-grade wire is specifically designed to resist corrosion, moisture, and temperature fluctuations, making it a non-negotiable choice for this project. Skimping on quality here could lead to system failures or safety hazards down the line.
Fuses are another critical component, acting as the first line of defense against electrical overloads. For a 3-bank battery charger, select fuses rated to handle the combined amperage of all three batteries, typically ranging from 10 to 30 amps per bank depending on your setup. Always consult the charger’s manual for specific recommendations. Mounting hardware, such as stainless steel screws and brackets, ensures the charger is securely fastened to prevent movement or damage during rough conditions. Stainless steel is ideal due to its corrosion resistance, especially in saltwater environments.
The battery charger itself is the heart of the system, and choosing the right one is paramount. Opt for a 3-bank charger with independent outputs for each battery, allowing simultaneous charging without overcharging. Look for features like automatic temperature compensation and multi-stage charging to prolong battery life. Brands like ProMariner, Minn Kota, and NOCO are reputable choices, offering models with built-in safety features like reverse polarity protection and spark-proof technology.
When gathering materials, consider the length and gauge of the marine-grade wire. A common rule of thumb is to use 8-gauge wire for runs up to 6 feet and 6-gauge for longer distances to minimize voltage drop. Measure the distance from the charger to each battery to determine the required wire length, adding extra for routing and connections. Labeling wires during installation can save time and confusion, especially when dealing with multiple batteries.
Finally, organization is key to a successful installation. Lay out all tools and materials before starting, ensuring nothing is missing or damaged. A well-prepared workspace not only speeds up the process but also reduces the risk of errors. Keep safety in mind by wearing protective gear, such as gloves and safety glasses, when handling tools and wires. With the right tools and materials in hand, you’re well-equipped to tackle the installation of your 3-bank battery charger with confidence.
