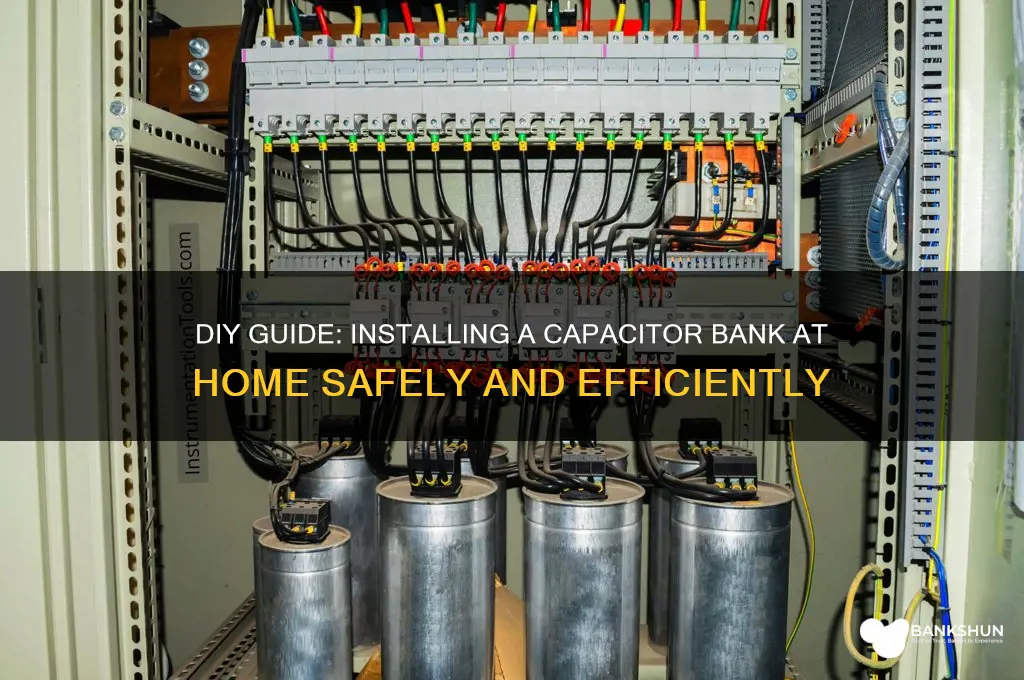

Installing a capacitor bank at home can significantly improve the efficiency of your electrical system by correcting power factor and reducing energy consumption. This process involves selecting the appropriate capacitor bank size based on your home’s electrical load, ensuring compatibility with your existing wiring and circuit breaker panel. Safety is paramount, so it’s essential to turn off the main power supply and follow proper grounding procedures. The installation typically includes mounting the capacitor bank near the main panel, connecting it in parallel with the load, and verifying its functionality with a power factor meter. Consulting a licensed electrician is highly recommended to ensure compliance with local codes and to avoid potential hazards.
Explore related products
What You'll Learn
- Safety Precautions: Essential safety measures to follow during capacitor bank installation at home
- Required Tools: List of tools and equipment needed for capacitor bank installation
- Location Selection: Choosing the optimal location for installing a capacitor bank at home
- Wiring Connections: Step-by-step guide to properly connect the capacitor bank to your system
- Testing & Maintenance: Procedures to test and maintain the capacitor bank after installation
Safety Precautions: Essential safety measures to follow during capacitor bank installation at home
Installing a capacitor bank at home can significantly improve power factor correction and stabilize voltage, but it’s a task that demands meticulous attention to safety. Before you begin, ensure the main power supply is completely shut off at the breaker panel. Even a momentary lapse in this step can lead to severe electrical shock or equipment damage. Use a non-contact voltage tester to double-check that no live current is present in the wires you’ll be working with. This simple precaution is non-negotiable and forms the foundation of a safe installation process.
Once power is confirmed off, focus on personal protective equipment (PPE). Wear insulated gloves rated for electrical work, safety goggles to protect against short-circuit sparks, and non-conductive footwear. Capacitors store energy even when disconnected, so discharge them fully before handling. Use a resistor or a specialized discharge tool to ensure all stored charge is depleted. Skipping this step risks accidental shocks, as capacitors can retain dangerous voltage levels long after power is disconnected.
Proper grounding is another critical safety measure. Ensure the capacitor bank’s enclosure and mounting surface are securely grounded to prevent electrical faults. Use a grounding strap or wire with a minimum gauge of 10 AWG, connected to the home’s grounding system. Inadequate grounding can lead to electrical fires or damage to connected appliances. Verify the connection with a multimeter to ensure continuity between the capacitor bank and the grounding point.
Finally, consider the environment and placement of the capacitor bank. Install it in a well-ventilated area, away from flammable materials and moisture. Overheating is a common risk, so avoid cramped spaces or areas prone to high temperatures. Label the installation clearly, indicating the presence of high-voltage components and instructions for safe disconnection. This not only protects you but also safeguards anyone who might interact with the system in the future. By adhering to these safety measures, you minimize risks and ensure a secure, efficient capacitor bank installation.
