Jumping out O2 Bank 2, a term often associated with automotive diagnostics, refers to the process of bypassing or testing the oxygen (O2) sensor in the second bank of a vehicle's engine. This procedure is typically performed to diagnose issues related to fuel efficiency, emissions, or engine performance. By temporarily disconnecting or jumping out the O2 sensor, mechanics can assess whether the sensor is functioning correctly or if it is contributing to the problem. This method is commonly used in vehicles with V6 or V8 engines, which have multiple banks of cylinders, each equipped with its own set of O2 sensors. Understanding how to jumper out O2 Bank 2 requires knowledge of the vehicle's wiring diagram and the use of appropriate tools to ensure the process is done safely and effectively.
| Characteristics | Values |
|---|---|
| Purpose | To bypass or "jumper out" a faulty O2 sensor in Bank 2 of a vehicle's exhaust system. |
| Common Reasons | Faulty O2 sensor, diagnostic troubleshooting, or temporary fix. |
| Tools Required | Jumper wires, multimeter, and basic hand tools. |
| Location of O2 Sensor | Bank 2 refers to the side of the engine opposite the #1 cylinder (typically the passenger side in V6/V8 engines). |
| Sensor Type | Typically a downstream (post-catalytic converter) O2 sensor. |
| Jumper Method | Connect a jumper wire between the signal wire and the ground wire of the O2 sensor connector. |
| Signal Wire Color | Varies by vehicle; consult wiring diagram (commonly black/white or gray). |
| Ground Wire Color | Varies by vehicle; consult wiring diagram (commonly black). |
| Voltage Reading | Should read ~0.1V to ~0.9V when jumpered; steady voltage indicates a successful bypass. |
| Effects on Engine | May cause a check engine light (CEL) and affect fuel efficiency or emissions. |
| Legal Considerations | Illegal in many regions due to emissions regulations; use only for diagnostic purposes. |
| Alternative Solutions | Replace the faulty O2 sensor or consult a professional mechanic. |
| Safety Precautions | Disconnect the battery before working on the electrical system. |
| Vehicle Compatibility | Method applies to vehicles with OBD-II systems (1996 and newer in the U.S.). |
| Diagnostic Codes | Related codes include P0136, P0138, P0156, P0158 (Bank 2 O2 sensor issues). |
Explore related products
What You'll Learn

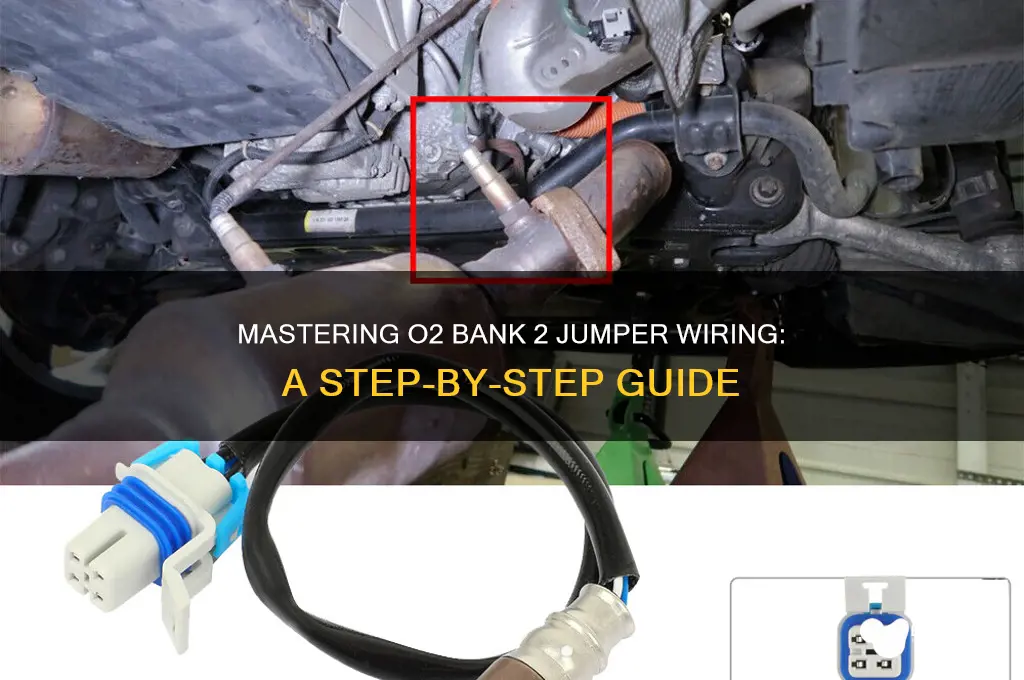

Locate O2 Sensor Bank 2
Locating the O2 sensor for Bank 2 is the first critical step in any attempt to jumper or bypass it. This sensor is typically found on the passenger side of the vehicle, downstream from the catalytic converter. However, this placement can vary depending on the make and model of your car. For instance, some vehicles may have the Bank 2 sensor located near the firewall or even on the driver’s side if the engine configuration is unusual. Always consult your vehicle’s service manual or use an online resource specific to your car’s year, make, and model to confirm the exact location.
Once you’ve identified the general area, visually inspect the exhaust system. The O2 sensor will be a small, cylindrical component screwed into the exhaust pipe, often with a wiring harness connected to it. If the sensor is difficult to access due to tight spacing or surrounding components, consider using a mirror or a flexible camera tool to pinpoint its location. Remember, Bank 2 refers to the side of the engine with cylinders 2, 4, 6, etc., so ensure you’re focusing on the correct side of the engine block.
For those working on V6 or V8 engines, locating Bank 2 becomes more straightforward once you understand the firing order. For example, in a Chevrolet V8 with a traditional firing order, Bank 2 will be the passenger side. In contrast, some Ford V8 engines place Bank 2 on the driver’s side. Knowing this can save you time and prevent unnecessary disassembly of the wrong components. If you’re unsure, trace the exhaust manifold from the engine to the catalytic converter to visually confirm which side corresponds to Bank 2.
After locating the sensor, take note of its condition. A faulty O2 sensor may show signs of contamination, such as oil residue or carbon buildup, which can affect its performance. If the sensor appears damaged or inaccessible, consider whether jumper or bypass is the best course of action. In some cases, replacing the sensor may be more practical than attempting a temporary fix. Always weigh the risks of bypassing a critical emissions component against the immediate need for vehicle functionality.
Finally, before proceeding with any jumper or bypass procedure, ensure you have the necessary tools and safety equipment. A wrench or O2 sensor socket, dielectric grease, and a multimeter are essential for testing and manipulating the sensor. Additionally, work in a well-ventilated area and allow the exhaust system to cool to avoid burns. Properly locating and assessing the O2 sensor for Bank 2 sets the foundation for a successful and safe repair or modification.
