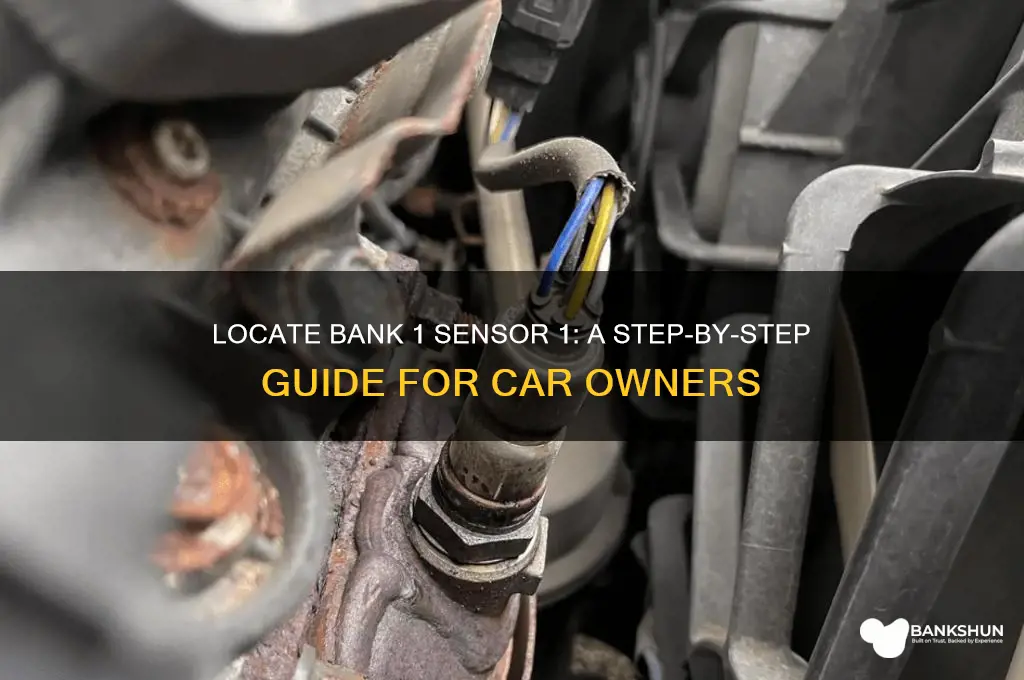

Locating Bank 1 Sensor 1 is a common task for vehicle diagnostics, particularly when addressing check engine light issues related to oxygen sensor malfunctions. Bank 1 refers to the side of the engine with cylinder 1, while Sensor 1 is the upstream oxygen sensor, located closest to the engine before the catalytic converter. To find it, start by identifying the engine’s cylinder numbering sequence, typically found in the vehicle’s manual or online resources. Once Bank 1 is confirmed, trace the exhaust manifold or pipe from the engine to locate the first sensor in the exhaust system. It’s usually positioned near the firewall or close to the engine block, depending on the vehicle’s make and model. Using a repair manual or online diagrams specific to your vehicle can provide precise guidance for accurate identification and access.
| Characteristics | Values |
|---|---|
| Location | Typically located before the catalytic converter on the exhaust manifold. |
| Bank Designation | Bank 1 refers to the side of the engine with cylinder 1 (driver side in most V6/V8 engines). |
| Sensor Type | Oxygen sensor (O2 sensor), specifically the upstream sensor. |
| Function | Measures the oxygen level in the exhaust to optimize fuel-air mixture. |
| Connector Type | Usually a 4-wire connector for heated oxygen sensors. |
| Common Engine Types | V6, V8, and inline engines with multiple cylinder banks. |
| Tools Required for Identification | Repair manual, OBD-II scanner, or visual inspection. |
| Replacement Difficulty | Moderate; requires basic tools and access to the exhaust system. |
| Cost of Replacement | $50 to $200 depending on the vehicle and sensor type. |
| Symptoms of Failure | Poor fuel efficiency, rough idle, check engine light (CEL) illumination. |
| Diagnostic Codes | P0130, P0135 (common O2 sensor-related codes). |
| Lifespan | Typically 60,000 to 90,000 miles, depending on usage and conditions. |
Explore related products
What You'll Learn
- Understanding OBD2 Codes: Learn what OBD2 codes mean and how they relate to bank 1 sensor 1
- Vehicle Layout Basics: Identify engine layout to determine bank 1 location in your specific vehicle
- Sensor Identification Tips: Recognize the physical appearance and common locations of oxygen sensors
- Using Repair Manuals: Locate bank 1 sensor 1 with detailed diagrams from vehicle-specific repair manuals
- Professional Diagnostic Tools: Utilize scan tools to pinpoint the exact location of bank 1 sensor 1

Understanding OBD2 Codes: Learn what OBD2 codes mean and how they relate to bank 1 sensor 1
Modern vehicles are equipped with On-Board Diagnostics (OBD2) systems that monitor performance and emissions, flagging issues via error codes. When your check engine light illuminates, an OBD2 scanner reveals a code like P0135, which often points to a malfunction in Bank 1 Sensor 1—the oxygen sensor located before the catalytic converter on the engine’s first cylinder bank. Understanding these codes is crucial for diagnosing problems accurately and avoiding unnecessary repairs. For instance, a P0135 code specifically indicates a circuit malfunction in Bank 1 Sensor 1, while a P0137 code suggests low voltage, often due to a faulty sensor or wiring issue.
To locate Bank 1 Sensor 1, start by identifying your engine’s cylinder banks. In most inline engines, Bank 1 is the side with cylinder 1, while V-shaped engines typically have Bank 1 on the driver’s side. Consult your vehicle’s manual or a repair guide for confirmation. Once identified, trace the exhaust manifold to find the sensor positioned before the catalytic converter. This sensor measures exhaust oxygen levels, providing critical data for fuel-air mixture adjustments. A malfunctioning sensor can lead to poor fuel efficiency, rough idling, or failed emissions tests, making timely diagnosis essential.
Analyzing OBD2 codes requires more than just reading them—it involves interpreting their context. For example, a P0132 code indicates Bank 1 Sensor 1 is detecting too rich a mixture, which could stem from a faulty sensor, fuel injector, or even a vacuum leak. Cross-referencing codes with symptoms and performing additional tests, such as checking sensor voltage with a multimeter, can pinpoint the root cause. Ignoring these codes or misinterpreting them can lead to costly repairs or further damage, emphasizing the need for a systematic approach.
Practical tips for troubleshooting Bank 1 Sensor 1 issues include inspecting the sensor’s wiring for damage or corrosion, ensuring the sensor is securely connected, and verifying its heating element functionality. If the sensor is confirmed faulty, replacement is straightforward but requires the correct part—sensors are not universal. After installation, clear the OBD2 code using a scanner to reset the system and confirm the issue is resolved. Regular maintenance, such as checking for exhaust leaks and keeping the engine tuned, can prevent sensor-related codes from appearing in the first place.
In conclusion, OBD2 codes are a powerful diagnostic tool, but their value lies in understanding their specifics and context. Bank 1 Sensor 1 codes, in particular, highlight issues with oxygen sensing and fuel management, directly impacting performance and emissions. By combining code interpretation with practical troubleshooting, vehicle owners can address problems efficiently, saving time and money while ensuring their vehicle operates optimally.
Soros vs. Bank of England: The Black Wednesday Currency Battle
You may want to see also
Explore related products

Vehicle Layout Basics: Identify engine layout to determine bank 1 location in your specific vehicle
Understanding your vehicle's engine layout is the first step in locating Bank 1 Sensor 1, a critical component for emissions and performance monitoring. Modern vehicles, particularly those with multi-cylinder engines, often feature a V-shaped or inline configuration. In a V-shaped engine, the cylinders are divided into two banks, typically angled at 60, 90, or 120 degrees. Bank 1 is usually the side of the engine that includes cylinder 1, which is identified by the firing order sequence. For inline engines, Bank 1 is typically the side closest to the vehicle's front, though this can vary by manufacturer. Knowing this layout is essential because Bank 1 Sensor 1 is always located on the first cylinder of Bank 1, which is crucial for accurate diagnostics and repairs.
To identify your engine layout, start by consulting your vehicle’s manual or searching for the specific make and model online. For example, a Chevrolet Silverado with a V8 engine will have Bank 1 on the driver’s side, while a Honda Civic with an inline-4 engine will have Bank 1 at the front of the engine block. Once you’ve determined the layout, locate the cylinder numbering sequence, often found on the intake manifold or valve cover. This sequence is vital because it confirms which cylinder is number 1, thereby pinpointing Bank 1. If you’re unsure, use a cylinder firing order chart specific to your engine, which can be found in repair manuals or online forums.
A practical tip for visual identification is to inspect the engine bay for labels or markings. Some manufacturers stamp the cylinder numbers directly onto the engine block or provide diagrams on the underside of the hood. For instance, in a Ford F-150 with a V6 engine, Bank 1 is typically on the passenger side, and cylinder 1 is the frontmost cylinder on that bank. If labels are absent, trace the spark plug wires or fuel injectors, as they often follow a sequential pattern corresponding to the firing order. This method requires patience but is highly effective for confirming Bank 1’s location.
Caution should be exercised when working around the engine, especially if it’s hot. Always allow the engine to cool before attempting to locate sensors or cylinders. Additionally, avoid relying solely on generic diagrams, as engine layouts can vary even within the same model year due to regional differences or mid-year updates. For instance, a Toyota Camry with a 2.5L engine may have Bank 1 on the driver’s side in U.S. models but on the passenger side in European versions. Cross-referencing multiple sources ensures accuracy and prevents misidentification, which could lead to incorrect repairs or sensor replacements.
In conclusion, identifying your vehicle’s engine layout is a foundational skill for locating Bank 1 Sensor 1. By understanding whether your engine is inline or V-shaped, consulting specific resources, and using visual cues, you can confidently determine Bank 1’s position. This knowledge not only aids in diagnostics but also empowers you to perform maintenance tasks more efficiently, saving time and potential costs associated with professional repairs. Always approach the task methodically, prioritizing safety and accuracy for optimal results.
Cord Tissue Banking: Is It Necessary?
You may want to see also
Explore related products

Sensor Identification Tips: Recognize the physical appearance and common locations of oxygen sensors
Oxygen sensors, often referred to as O2 sensors, are critical components in modern vehicles, monitoring the exhaust gases to optimize engine performance and fuel efficiency. Identifying Bank 1 Sensor 1, the most upstream sensor on the engine’s first cylinder bank, begins with understanding its physical characteristics. Typically, these sensors are cylindrical in shape, measuring about 1 to 1.5 inches in length, with a threaded body for secure mounting. The tip of the sensor, which comes into contact with exhaust gases, is usually white or gray due to heat exposure and oxidation. A wiring harness connects to the sensor, featuring 3 to 4 wires that transmit data to the vehicle’s engine control unit (ECU). Recognizing these features is the first step in locating the sensor accurately.
Once you’ve familiarized yourself with the sensor’s appearance, understanding its common locations is crucial. Bank 1 Sensor 1 is always positioned upstream of the catalytic converter on the exhaust manifold or downpipe of the first cylinder bank. In inline engines, this sensor is typically found near the firewall or front of the engine bay. For V-shaped engines, it’s located on the side of the engine corresponding to the first cylinder bank, often near the front of the vehicle. For example, in a V6 or V8 engine, if cylinder 1 is on the driver’s side, Bank 1 Sensor 1 will be on that side as well. Referencing your vehicle’s repair manual or a diagram of the engine layout can provide precise guidance tailored to your make and model.
A practical tip for locating Bank 1 Sensor 1 is to follow the exhaust system from the engine to the catalytic converter. Start by identifying the exhaust manifold, which is directly connected to the engine’s cylinder head. Trace the exhaust pipe from the manifold to the catalytic converter, and the first sensor you encounter is likely Bank 1 Sensor 1. Be cautious, as the exhaust system can be extremely hot if the engine has been running recently. Allow the vehicle to cool for at least 30 minutes before attempting to inspect or replace the sensor. Additionally, using a flashlight and a mirror can help you spot the sensor in hard-to-reach areas.
While physical appearance and location are key, it’s also important to differentiate between upstream and downstream sensors. Bank 1 Sensor 1 is always upstream, meaning it’s positioned before the catalytic converter. Downstream sensors, such as Bank 1 Sensor 2, are located after the catalytic converter and serve a different purpose—monitoring the converter’s efficiency. Misidentifying these sensors can lead to incorrect diagnostics or replacements, wasting time and money. Always double-check the sensor’s position relative to the catalytic converter to ensure accuracy.
In conclusion, recognizing the physical appearance and common locations of oxygen sensors is essential for accurately locating Bank 1 Sensor 1. By understanding its cylindrical shape, wiring harness, and typical placement upstream of the catalytic converter, you can efficiently identify the sensor. Combining this knowledge with practical tips, such as tracing the exhaust system and using tools for visibility, ensures a successful identification process. Whether you’re performing diagnostics or replacing the sensor, these insights will save you time and prevent errors, making your task both straightforward and effective.
Does GoBank Charge for Insufficient Funds? Fees Explained
You may want to see also
Explore related products
$30.99

Using Repair Manuals: Locate bank 1 sensor 1 with detailed diagrams from vehicle-specific repair manuals
Locating Bank 1 Sensor 1 can be a daunting task without the right resources. Vehicle-specific repair manuals are invaluable tools that provide detailed diagrams and step-by-step instructions tailored to your car’s make, model, and year. These manuals eliminate guesswork by pinpointing the exact location of the sensor, often accompanied by visual aids that highlight its position relative to other engine components. Whether you’re a DIY enthusiast or a professional mechanic, relying on a repair manual ensures accuracy and saves time, preventing unnecessary disassembly or damage to surrounding parts.
Analyzing the structure of repair manuals reveals a consistent approach to sensor location. Most manuals categorize information by engine type and layout, making it easier to navigate to the relevant section. For example, in a V6 engine, Bank 1 Sensor 1 is typically located on the cylinder bank closest to the firewall, but this can vary based on manufacturer design. Diagrams in these manuals often use color-coding or labels to distinguish sensors, exhaust components, and mounting points, providing a clear visual reference. By cross-referencing the diagram with the accompanying text, you can confidently identify the sensor’s position without relying on generic online advice.
One practical tip when using repair manuals is to pay attention to the sensor’s orientation and mounting style. Some sensors screw directly into the exhaust manifold, while others are bolted onto a flange. The manual will specify the type of wrench or socket needed for removal, as well as torque specifications for reinstallation. For instance, oxygen sensors often require a specialized socket to avoid stripping the threads, and overtightening can cause damage. Repair manuals also highlight potential obstacles, such as heat shields or wiring harnesses, that may need to be temporarily removed for access.
Comparing vehicle-specific manuals to generic guides underscores their superiority in precision and reliability. Generic resources often provide broad, one-size-fits-all instructions that may not apply to your specific vehicle. In contrast, manufacturer-approved repair manuals account for variations in engine design, ensuring the information is accurate and up-to-date. For example, a manual for a 2015 Toyota Camry will detail the exact location of Bank 1 Sensor 1 in its 2.5L inline-4 engine, whereas a generic guide might incorrectly assume a V6 layout. This level of specificity is crucial for avoiding errors and ensuring a successful repair.
In conclusion, using vehicle-specific repair manuals is the most effective method for locating Bank 1 Sensor 1. Their detailed diagrams, precise instructions, and practical tips provide a comprehensive solution tailored to your vehicle. By investing in the right manual, you not only locate the sensor efficiently but also gain a deeper understanding of your car’s engine layout. This approach not only saves time and effort but also minimizes the risk of mistakes, making it an essential resource for any automotive repair task.
Challenging Yet Rewarding: Exploring the Banks Peninsula Track's Difficulty
You may want to see also
Explore related products

Professional Diagnostic Tools: Utilize scan tools to pinpoint the exact location of bank 1 sensor 1
Locating Bank 1 Sensor 1 can be a daunting task without the right tools, especially when dealing with modern vehicles equipped with complex engine management systems. Professional diagnostic tools, such as scan tools, are indispensable in this process. These devices not only read error codes but also provide real-time data and schematics that can guide you directly to the sensor's location. By connecting a scan tool to your vehicle’s OBD-II port, you can access manufacturer-specific diagrams and descriptions that eliminate guesswork, ensuring you’re working on the correct component.
One of the key advantages of using a scan tool is its ability to cross-reference diagnostic trouble codes (DTCs) with detailed vehicle-specific information. For instance, if your vehicle throws a P0133 code (O2 Sensor Circuit Slow Response Bank 1 Sensor 1), the scan tool can pull up a diagram showing the exact placement of Bank 1 Sensor 1 relative to the engine. This is particularly useful in vehicles with V6 or V8 engines, where the cylinder banks are not always intuitively labeled. Some advanced tools even offer augmented reality overlays, projecting the sensor’s location onto a live image of the engine bay.
While scan tools are powerful, their effectiveness depends on proper usage. Start by ensuring your tool is updated with the latest software to support your vehicle’s make and model. Once connected, navigate to the "Live Data" or "Sensor Location" menu, where you’ll find visual aids or textual descriptions. For example, a Ford F-150’s Bank 1 Sensor 1 is typically located before the catalytic converter on the driver’s side, but a scan tool can confirm this based on the vehicle’s specific year and engine variant. Always refer to the tool’s user manual for vehicle-specific instructions.
A cautionary note: not all scan tools are created equal. Basic code readers may lack the detailed schematics needed for precise sensor location. Invest in a professional-grade tool like the Autel MaxiSYS or Snap-on Zeus for comprehensive diagnostics. Additionally, be wary of relying solely on generic diagrams found online, as they often omit critical details unique to your vehicle. Combining a scan tool with a factory service manual can provide the most accurate and efficient path to locating Bank 1 Sensor 1.
In conclusion, professional diagnostic tools are the cornerstone of accurately locating Bank 1 Sensor 1. By leveraging their advanced features, you can save time, reduce errors, and ensure a successful repair. Whether you’re a seasoned mechanic or a DIY enthusiast, investing in a quality scan tool is a decision that pays dividends in precision and efficiency. Always pair technology with knowledge for the best results.
Easy Guide to Exchanging Currency at SBI Bank: Tips & Steps
You may want to see also
Frequently asked questions
Bank 1 Sensor 1, also known as the upstream oxygen sensor, is located before the catalytic converter on the engine’s first cylinder bank. It monitors the air-fuel mixture and sends data to the engine control module (ECM) to optimize performance and reduce emissions.
To locate Bank 1 Sensor 1, first identify the engine’s cylinder banks (Bank 1 is usually the side with cylinder 1). Follow the exhaust manifold to the first oxygen sensor before the catalytic converter. Refer to your vehicle’s manual or a repair guide for specific placement.
Yes, you can replace Bank 1 Sensor 1 yourself if you have basic mechanical skills. Tools typically needed include a wrench or socket set, penetrating oil (if the sensor is stuck), and possibly a sensor socket. Ensure the engine is cool before starting the replacement.
