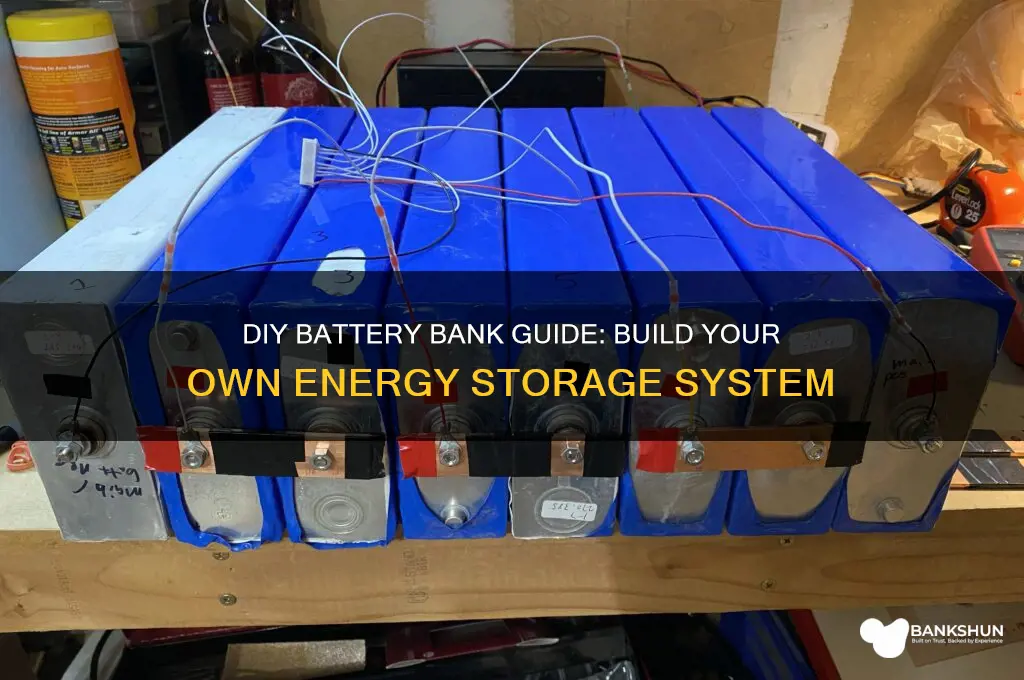

Creating a DIY battery bank is an excellent way to store energy for off-grid systems, emergency backups, or renewable energy setups. By combining multiple batteries in series or parallel, you can increase voltage or capacity to meet specific power needs. The process involves selecting the right type of batteries, such as deep-cycle lead-acid or lithium-ion, and ensuring they are compatible with your intended use. You’ll also need to assemble a battery management system (BMS) to monitor voltage, temperature, and charge levels, preventing overcharging or discharging. Proper wiring, safety precautions, and a sturdy enclosure are essential to protect the system and maximize efficiency. Whether for a solar-powered cabin or a home backup, a DIY battery bank offers a cost-effective and customizable energy storage solution.
Explore related products
What You'll Learn
- Choosing the Right Batteries: Select deep-cycle batteries (lead-acid, lithium) based on capacity, voltage, and energy needs
- Wiring Batteries in Series/Parallel: Connect batteries to achieve desired voltage and capacity for your system
- Building a Battery Enclosure: Create a safe, ventilated, and insulated box to house the battery bank
- Adding a Battery Management System (BMS): Install a BMS to monitor and protect lithium batteries from overcharge/discharge
- Connecting to Charge Controller/Inverter: Link the bank to a charge controller and inverter for power management
Choosing the Right Batteries: Select deep-cycle batteries (lead-acid, lithium) based on capacity, voltage, and energy needs
Deep-cycle batteries are the backbone of any DIY battery bank, designed to provide sustained power over long periods rather than short bursts. Unlike starter batteries found in cars, deep-cycle batteries can discharge up to 80% of their capacity without damage, making them ideal for off-grid systems, RVs, or renewable energy setups. The two primary types—lead-acid and lithium—each have distinct advantages and trade-offs. Lead-acid batteries are cost-effective and reliable but heavier and less efficient, while lithium batteries offer higher energy density, longer lifespan, and faster charging at a premium price. Your choice depends on your budget, space constraints, and energy demands.
Capacity, measured in ampere-hours (Ah), determines how much energy a battery can store. For example, a 100Ah battery can theoretically deliver 1 amp of current for 100 hours or 10 amps for 10 hours. To calculate your needs, list all devices you plan to power, their wattage, and estimated daily usage hours. Convert wattage to amp-hours by dividing by the battery voltage (e.g., 12V). A common rule of thumb is to oversize your battery bank by 20–30% to account for inefficiencies and future expansion. For instance, if your daily energy consumption is 500Wh, a 12V battery bank should have a minimum capacity of 42Ah (500Wh ÷ 12V), but 55Ah would provide a safer margin.
Voltage is another critical factor, as it must match your system’s requirements. Most DIY battery banks operate at 12V, 24V, or 48V. Higher voltages reduce energy loss over longer cable runs and are more efficient for high-power applications. To achieve higher voltages, connect batteries in series (positive to negative) for lead-acid or use lithium batteries designed for higher voltage systems. Always ensure your inverter, charge controller, and other components are rated for the chosen voltage to avoid damage or inefficiency.
Energy needs dictate not only capacity and voltage but also the type of battery chemistry. Lead-acid batteries, including flooded, sealed gel, and AGM variants, are well-suited for low-cost, low-drain applications. Lithium batteries, particularly lithium iron phosphate (LiFePO4), excel in high-drain scenarios and offer a lifespan of 3,000–5,000 cycles compared to 300–800 cycles for lead-acid. For example, a solar-powered cabin with occasional use might benefit from AGM lead-acid batteries, while a full-time off-grid home would see greater long-term value from lithium.
Practical tips include considering maintenance requirements—flooded lead-acid batteries need regular water refilling, while lithium and AGM batteries are maintenance-free. Always use batteries from the same brand, model, and age to ensure balanced charging and discharging. Install a battery management system (BMS) for lithium batteries to prevent overcharging or overheating. Finally, factor in disposal and recycling costs; lead-acid batteries are widely recyclable but contain hazardous materials, while lithium batteries are more environmentally friendly but require specialized recycling. Choosing the right battery is a balance of upfront cost, long-term performance, and system compatibility.
Step-by-Step Guide to Accessing BOI Mobile Banking Securely
You may want to see also
Explore related products
Wiring Batteries in Series/Parallel: Connect batteries to achieve desired voltage and capacity for your system
Connecting batteries in series or parallel is a fundamental technique for tailoring voltage and capacity to meet the specific demands of your DIY battery bank. In a series configuration, the positive terminal of one battery connects to the negative terminal of the next, effectively adding their voltages together while maintaining the same capacity. For instance, wiring two 12V, 100Ah batteries in series yields a 24V, 100Ah system—ideal for applications requiring higher voltage, like powering inverters or certain appliances. Conversely, a parallel configuration links all positive terminals together and all negative terminals together, boosting total capacity while keeping voltage constant. Two 12V, 100Ah batteries wired in parallel result in a 12V, 200Ah system, suitable for extended runtime in low-voltage setups.
When deciding between series and parallel wiring, consider your system’s voltage and capacity requirements. For example, a solar-powered cabin might need a 24V system to reduce energy loss over long cable runs, making series wiring essential. However, a 12V off-grid lighting system could benefit from parallel wiring to maximize runtime. Always ensure batteries are of the same type, age, and capacity to avoid imbalances that can lead to overheating or reduced performance. Mismatched batteries can cause one to overcharge or over-discharge, shortening the lifespan of the entire bank.
Implementing these configurations requires careful attention to detail. Use appropriately sized cables to minimize resistance and voltage drop, especially in high-current applications. For series wiring, connect the first battery’s positive terminal to the second battery’s negative terminal, and so on, until the desired voltage is achieved. In parallel setups, join all positive terminals with a single cable and all negative terminals with another, ensuring secure connections to prevent arcing or disconnection. Fuse each battery individually in parallel systems to protect against short circuits and isolate faulty batteries.
A practical tip for DIY enthusiasts is to label each battery and its connections clearly to avoid confusion during maintenance or expansion. For instance, mark series-wired batteries as "Battery 1 (12V) → Battery 2 (12V) = 24V System" and parallel-wired batteries as "Battery A (100Ah) + Battery B (100Ah) = 200Ah System." Additionally, incorporate a battery management system (BMS) if using lithium-ion batteries to monitor voltage, current, and temperature, ensuring safe operation.
In conclusion, mastering series and parallel wiring empowers you to customize your DIY battery bank for specific energy needs. Whether you’re building a high-voltage system for efficiency or a high-capacity setup for endurance, understanding these configurations ensures optimal performance and longevity. Always prioritize safety, use compatible components, and plan for future scalability to create a reliable and efficient energy storage solution.
Step-by-Step Guide to Applying for Standard Bank Learnership Program
You may want to see also
Explore related products
Building a Battery Enclosure: Create a safe, ventilated, and insulated box to house the battery bank
A battery enclosure is more than a box; it’s a critical safety and performance component for your DIY battery bank. Batteries generate heat, emit gases, and require protection from environmental factors. Without proper ventilation, insulation, and structural integrity, you risk overheating, gas buildup, or physical damage. Think of it as a controlled environment—a mini-ecosystem designed to keep your batteries stable, efficient, and secure.
Material Selection: Balancing Strength and Functionality
Start with non-conductive, fire-resistant materials like plywood, ABS plastic, or fiberglass for the enclosure’s structure. Plywood, when treated with fire-retardant coatings, offers affordability and ease of customization. For higher durability, consider aluminum or stainless steel, though these require insulation to prevent thermal conductivity. Avoid flammable materials like untreated wood or Styrofoam. Insulate the interior with foam boards or mineral wool to regulate temperature, especially in extreme climates. For ventilation, incorporate vents with mesh screens to block debris while allowing airflow.
Ventilation Design: Preventing Gas Accumulation
Lead-acid batteries release hydrogen gas during charging, which is explosive at concentrations above 4%. Lithium-ion batteries, while safer, still require airflow to dissipate heat. Install passive vents at the bottom and top of the enclosure to create natural convection. For active ventilation, add a 12V fan wired to your battery management system, triggering when temperatures exceed 85°F (29°C). Ensure vents face downward to prevent water ingress during rain. Calculate airflow needs based on battery capacity—a 100Ah bank typically requires 5-10 cubic feet per minute (CFM) of ventilation.
Safety Features: Fire Suppression and Access Control
Incorporate a fire suppression system, such as a small ABC dry chemical extinguisher or an automatic aerosol can mounted inside. Add a hinged, lockable door with a gasket seal to prevent moisture entry while allowing quick access in emergencies. Label the enclosure with hazard warnings and include a disconnect switch outside the box to isolate the bank without opening it. For added protection, line the interior with fire-resistant blankets or intumescent paint, which expands to block oxygen during a fire.
Practical Tips: Sizing and Placement
Size the enclosure to allow 2-3 inches of clearance around all battery sides for airflow and maintenance. Place it in a dry, shaded area, avoiding direct sunlight or proximity to flammable materials. Elevate the box on rubber feet to reduce vibration and moisture absorption. Test ventilation effectiveness by placing a smoke generator inside—smoke should exit within 30 seconds. Regularly inspect vents for blockages and clean dust or debris to maintain efficiency.
By combining robust materials, strategic ventilation, and proactive safety measures, your battery enclosure becomes a safeguard for both your system and your space. It’s not just about containment—it’s about creating a resilient, long-lasting solution for your DIY battery bank.
Does US Bank Offer High Yield Savings Accounts? A Review
You may want to see also
Explore related products
Adding a Battery Management System (BMS): Install a BMS to monitor and protect lithium batteries from overcharge/discharge
Lithium batteries, while powerful and efficient, are notoriously sensitive to overcharging and deep discharging, which can lead to reduced lifespan, performance degradation, or even safety hazards like thermal runaway. A Battery Management System (BMS) acts as a safeguard, continuously monitoring voltage, current, and temperature to prevent these risks. Without a BMS, your DIY battery bank is essentially operating blind, leaving your investment vulnerable to irreversible damage.
Installing a BMS involves connecting it in series with your lithium batteries, ensuring it sits between the battery pack and the load. Most BMS units feature a main positive and negative terminal, as well as individual cell taps that connect to each battery in the series. For example, a 4S (4-cell series) battery pack requires a BMS with four cell taps to monitor each cell’s voltage independently. Always match the BMS’s specifications to your battery configuration—a 4S BMS won’t work with a 3S or 5S pack. Use high-gauge wires (10 AWG or thicker) for the main terminals to handle high currents efficiently, and secure all connections with heat shrink tubing to prevent short circuits.
While a BMS primarily protects against overcharge and deep discharge, advanced models offer additional features like temperature monitoring, cell balancing, and communication protocols (e.g., CAN or RS485). Cell balancing is particularly crucial for series-connected batteries, as it redistributes energy from higher-charged cells to lower ones, ensuring uniform capacity across the pack. For instance, a 100A BMS with active balancing can extend the lifespan of a 12V, 200Ah battery bank by up to 30% compared to passive balancing systems. When selecting a BMS, consider your system’s maximum charge/discharge current and the number of cells in your pack.
One common mistake DIYers make is underestimating the importance of proper BMS placement and cooling. Mount the BMS in a well-ventilated area, away from heat sources like inverters or solar charge controllers. Overheating can cause the BMS to malfunction or trigger false alarms. Additionally, ensure the BMS is compatible with your charging system—some BMS units require specific voltage cutoff settings or communication protocols to work seamlessly with solar charge controllers or MPPTs. Always test the system under load before full deployment to verify the BMS’s functionality.
Incorporating a BMS into your DIY battery bank isn’t just a technical upgrade—it’s a necessity for safety and longevity. By investing in a quality BMS and following proper installation practices, you’ll protect your lithium batteries from premature failure and potential hazards. Think of the BMS as the brain of your battery bank, ensuring every cell operates within safe parameters and maximizing the return on your DIY project. Without it, you’re not just risking your batteries—you’re risking the entire system’s reliability.
Unlocking Meridian Bank Grant Opportunities: A Step-by-Step Application Guide
You may want to see also
Explore related products
Connecting to Charge Controller/Inverter: Link the bank to a charge controller and inverter for power management
To harness the full potential of your DIY battery bank, integrating it with a charge controller and inverter is essential. These components act as the brain and heart of your power system, ensuring efficient energy flow and longevity of your batteries. The charge controller regulates the voltage and current from your solar panels or other charging sources, preventing overcharging and extending battery life. The inverter, on the other hand, converts the stored DC power into AC power, making it usable for household appliances. Without these, your battery bank would be a mere energy reservoir, incapable of delivering power effectively or sustainably.
Step-by-Step Connection Process:
- Charge Controller Setup: Begin by connecting your battery bank to the charge controller. Use appropriately sized cables (e.g., 4 AWG for a 100A system) to minimize energy loss. Connect the positive terminal of the battery bank to the charge controller’s battery positive input and the negative terminal to the battery negative input. Ensure all connections are tight and secure to prevent overheating.
- Inverter Integration: Next, link the charge controller to the inverter. Most charge controllers have a load output terminal. Connect this to the inverter’s DC input using cables rated for the expected current. For a 2000W inverter, for instance, 8 AWG cables are typically sufficient.
- Grounding: Safety is paramount. Ground both the charge controller and inverter to a common grounding point, such as a grounding rod or your electrical panel. This prevents electrical faults and ensures compliance with safety standards.
Cautions and Considerations:
Always disconnect the power source before making connections to avoid short circuits. Verify compatibility between your charge controller, inverter, and battery bank. For example, a 12V battery bank requires a 12V-compatible charge controller and inverter. Overloading the system can damage components, so ensure your inverter’s capacity matches your expected load. For instance, a 3000W inverter can handle a maximum of 25A at 120V, so plan your appliance usage accordingly.
Practical Tips for Efficiency:
Position your charge controller and inverter close to the battery bank to reduce cable length and energy loss. Use fuses or circuit breakers between the battery bank and charge controller to protect against overcurrent. Regularly monitor the system using a multimeter or built-in display to ensure all components are functioning optimally. For solar setups, angle your panels to maximize sunlight exposure, as this directly impacts charging efficiency.
By meticulously connecting your battery bank to a charge controller and inverter, you create a robust, efficient, and safe power management system. This setup not only optimizes energy usage but also safeguards your investment, ensuring your DIY battery bank operates reliably for years to come.
Step-by-Step Guide to Investing in Republic Bank Shares
You may want to see also
Frequently asked questions
You’ll need deep-cycle batteries (lead-acid, AGM, or lithium), a battery charger, a battery management system (BMS) for lithium batteries, wiring (gauge depends on amperage), fuses, a battery monitor, and a container or rack to hold the batteries securely.
Batteries can be connected in series (to increase voltage) or parallel (to increase capacity). Use heavy-duty cables and ensure all connections are tight and secure. Always follow safety guidelines and use proper insulation to prevent short circuits.
If you’re using lithium batteries, a BMS is essential to monitor and balance cell voltages, prevent overcharging or overdischarging, and ensure safety. Lead-acid batteries don’t require a BMS but benefit from a charge controller or battery monitor.
Work in a well-ventilated area, wear protective gear, and avoid sparks or open flames near batteries. Use proper fuses and circuit breakers, secure batteries to prevent tipping, and regularly inspect connections for corrosion or damage. Always follow manufacturer guidelines for charging and maintenance.
