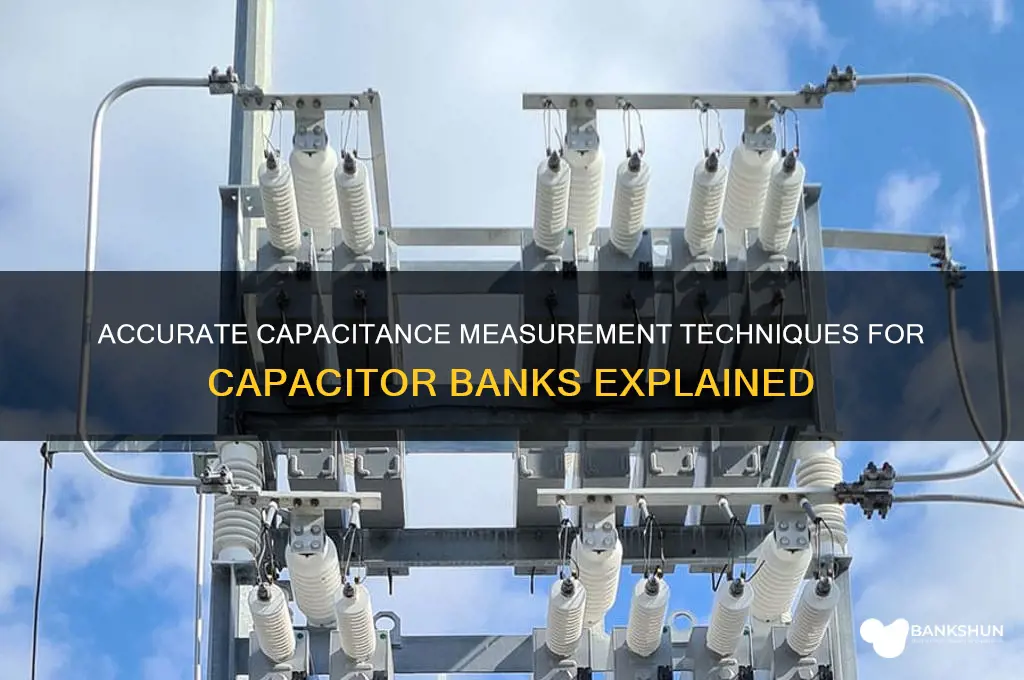

Measuring the capacitance of a capacitor bank is a critical task in electrical engineering, ensuring the bank operates efficiently and safely within its intended application. Capacitor banks, commonly used in power factor correction, filtering, and energy storage systems, consist of multiple capacitors connected in series or parallel. To accurately measure their capacitance, one must consider the combined effect of individual capacitors and the configuration of the bank. Common methods include using a capacitance meter, bridge circuits like the Schering bridge, or specialized equipment such as LCR meters, which provide precise measurements of capacitance, resistance, and inductance. Proper safety precautions, such as discharging the capacitors before testing, are essential to prevent accidents. Understanding the total capacitance of the bank is vital for optimizing performance and ensuring compatibility with the system it is integrated into.
| Characteristics | Values |
|---|---|
| Measurement Method | Bridge Method, LCR Meter, Multimeter (for rough estimation), Oscilloscope (for ESR) |
| Required Equipment | Capacitance Bridge, LCR Meter, Multimeter, Oscilloscope, Signal Generator, Discharge Resistor |
| Accuracy | Bridge Method: High (0.1-1%), LCR Meter: Very High (0.01-0.1%), Multimeter: Low (10-20%) |
| Measurement Range | Depends on equipment, typically from pF to several thousand µF |
| Safety Precautions | Discharge capacitors before measurement, use appropriate voltage ratings, wear protective gear |
| Test Frequency | Typically 1 kHz for general measurements, higher frequencies for specific applications |
| Temperature Consideration | Measure at operating temperature for accurate results, as capacitance varies with temperature |
| ESR Measurement | Measured using an LCR meter or oscilloscope, important for power electronics applications |
| Tolerance | Depends on capacitor type, typically ±5%, ±10%, or ±20% |
| Applications | Power Factor Correction, Energy Storage, Filtering, Motor Starters |
| Common Capacitor Types in Banks | Film, Electrolytic, Ceramic, Super Capacitors |
| Data Sheet Reference | Always refer to manufacturer’s data sheet for specific characteristics and measurement guidelines |
Explore related products
What You'll Learn
- Using a Multimeter: Measure capacitance directly with a digital multimeter's capacitance setting
- Bridge Method: Apply a Wheatstone bridge circuit for precise capacitance measurement
- RC Time Constant: Calculate capacitance using the RC time constant formula
- Resonant Frequency: Determine capacitance via resonant frequency in an LC circuit
- Charging/Discharging: Measure capacitance by analyzing charging/discharging curves of the capacitor bank
Using a Multimeter: Measure capacitance directly with a digital multimeter's capacitance setting
Digital multimeters (DMMs) equipped with a capacitance setting offer a straightforward method for measuring the capacitance of individual capacitors or a capacitor bank. This approach is ideal for quick checks and troubleshooting, providing immediate feedback on whether a capacitor is functioning within its specified range. To begin, ensure the capacitor bank is fully discharged to prevent damage to the multimeter or personal injury. Connect the multimeter’s test leads to the capacitor terminals, observing polarity if the capacitors are electrolytic. Select the capacitance (often denoted by an icon resembling a capacitor or the letter "F" for farads) on the multimeter’s dial. The display will show the measured capacitance value, typically in microfarads (µF) or nanofarads (nF), depending on the range setting.
While this method is convenient, it has limitations, particularly for large capacitor banks. Most handheld multimeters are designed for capacitors in the range of a few picofarads to several thousand microfarads, making them unsuitable for high-capacity banks used in industrial applications. Additionally, the accuracy of the measurement depends on the multimeter’s quality and calibration. For precise measurements, especially in critical systems, specialized equipment like bridge circuits or LCR meters may be necessary. However, for hobbyists or routine maintenance, a DMM provides a practical and cost-effective solution.
When measuring a capacitor bank, isolate each capacitor if possible to avoid cumulative errors. If the bank must be measured as a whole, ensure all capacitors are of the same type and voltage rating to prevent discrepancies. Be cautious of voltage ratings; exceeding the multimeter’s input limit can damage the device. For example, a typical handheld multimeter may handle up to 1000V, but always verify the specifications. If the capacitor bank operates at higher voltages, discharge it using a resistor rated for the expected energy to avoid residual charge.
A practical tip is to compare the measured capacitance against the manufacturer’s specifications. A variance of ±10% is generally acceptable for most applications, but significant deviations may indicate a faulty capacitor. For instance, a 1000µF capacitor reading 800µF or 1200µF could signal degradation or manufacturing defects. Regularly testing individual capacitors in a bank can help identify weak components before they fail, preventing system downtime.
In conclusion, using a digital multimeter to measure capacitance is a simple yet effective technique for assessing capacitor health. While it may not replace specialized tools for high-precision or high-capacity applications, it remains an indispensable tool for basic diagnostics. By following safety precautions and understanding the multimeter’s limitations, users can confidently evaluate capacitor banks in various settings, from electronics repair to industrial maintenance.
