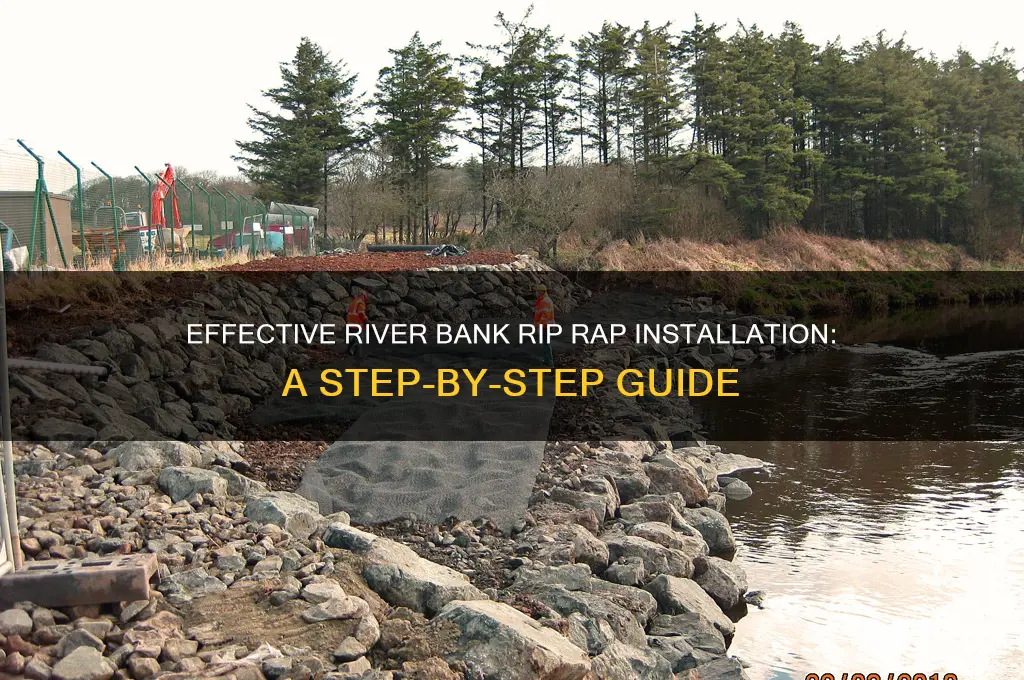

Riprapping a river bank is an effective erosion control technique that involves placing a layer of large, durable rocks or concrete along the shoreline to protect it from the erosive forces of water. This method is particularly useful in areas with high water flow or wave action, where soil and vegetation alone cannot withstand the constant wear. The process begins with site preparation, including clearing debris and stabilizing the bank, followed by selecting the appropriate rock size and type to ensure stability and longevity. Proper installation requires careful placement of the riprap to create a stable, interlocking structure that absorbs and dissipates wave energy. When done correctly, riprap not only prevents erosion but also enhances the riverbank’s natural appearance while providing habitat for aquatic life.
| Characteristics | Values |
|---|---|
| Purpose | Erosion control, bank stabilization, flood protection |
| Materials | Angular rocks (2-12 inches in diameter), concrete rubble, boulders |
| Placement | Along riverbanks, shorelines, bridge abutments, culverts |
| Design Considerations | Slope stability, water velocity, wave action, soil type, environmental impact |
| Installation Steps | 1. Site preparation (clearing, grading) 2. Geotextile fabric installation (optional) 3. Rock placement in layers 4. Compaction and settling |
| Rock Size | Varies based on water velocity and erosion severity (larger rocks for higher energy) |
| Layer Thickness | Typically 1-2 feet, depending on design requirements |
| Slope | Designed to match natural bank slope or steeper for stability |
| Maintenance | Periodic inspection, rock replacement, debris removal |
| Environmental Impact | Can alter habitat, affect water quality, and impact aquatic life if not properly designed |
| Cost | Varies widely based on materials, site conditions, and project scale (typically $20-$100 per square foot) |
| Lifespan | 20-50+ years with proper maintenance |
| Regulations | Permits often required; compliance with local, state, and federal regulations (e.g., Clean Water Act) |
| Alternatives | Vegetated slopes, gabions, concrete walls, bioengineering techniques |
| Benefits | Durable, low maintenance, effective erosion control, natural appearance |
| Challenges | High initial cost, heavy equipment required, potential environmental concerns |
Explore related products
What You'll Learn
- Material Selection: Choose durable rocks like granite or limestone for long-lasting erosion protection
- Slope Design: Ensure a stable slope angle (1:1 to 2:1) to resist water flow
- Foundation Prep: Clear debris, compact soil, and add geotextile fabric for stability
- Placement Techniques: Hand-place or use machinery to tightly pack rocks for maximum coverage
- Maintenance Tips: Inspect annually, remove debris, and repair gaps to preserve effectiveness
Material Selection: Choose durable rocks like granite or limestone for long-lasting erosion protection
The choice of material is critical when riprapping a river bank, as it directly determines the structure's longevity and effectiveness against erosion. Durable rocks like granite and limestone are ideal because they resist weathering, maintain structural integrity under water pressure, and provide a stable armor layer. Granite, with its high compressive strength (typically 150–250 MPa), is particularly suited for high-energy environments where wave action or strong currents are present. Limestone, while slightly softer (compressive strength around 50–150 MPa), offers excellent durability in less aggressive conditions and is often more cost-effective due to its widespread availability.
Selecting the right rock size is equally important. For most river bank applications, rocks ranging from 6 to 12 inches (15–30 cm) in diameter are recommended. This size ensures the stones interlock effectively, preventing displacement by water flow. Smaller rocks may wash away, while larger ones can create gaps that undermine stability. A gradation of sizes, with a mix of larger base rocks and smaller filler stones, enhances the riprap’s ability to absorb energy and resist scouring. Always ensure the rock size aligns with the river’s hydraulic forces, as calculated by a hydrologist or engineer.
Granite and limestone also excel in their ability to withstand freeze-thaw cycles, a common challenge in temperate climates. When water seeps into cracks in rocks and freezes, it expands, causing weaker materials to fracture. Granite’s low porosity and limestone’s dense structure minimize this risk, ensuring the riprap remains intact over decades. For regions with extreme temperature fluctuations, granite is often the superior choice due to its greater resistance to thermal stress.
Cost and availability should factor into material selection, but not at the expense of durability. While granite may be pricier, its longevity often justifies the investment, especially in high-risk erosion zones. Limestone, being more abundant in certain regions, can reduce transportation costs and project timelines. Local quarries can provide samples for testing, ensuring the rock meets engineering specifications. Always prioritize quality over initial savings to avoid costly repairs or failures later.
Finally, consider the environmental impact of your material choice. Both granite and limestone are natural materials that blend into the landscape, minimizing visual disruption. However, sourcing rocks from local quarries reduces the carbon footprint associated with transportation. Additionally, ensure the extraction process complies with environmental regulations to protect ecosystems. By balancing durability, cost, and sustainability, you can create a riprap system that safeguards the river bank while preserving the natural environment.
Step-by-Step Guide to Register for Bandhan Bank Net Banking
You may want to see also
Explore related products
Slope Design: Ensure a stable slope angle (1:1 to 2:1) to resist water flow
A stable slope is the backbone of any successful riprap installation. Imagine a riverbank as a fortress wall; the slope is its foundation. A poorly designed slope, too steep or too gradual, crumbles under the relentless assault of flowing water, rendering the riprap ineffective.
The ideal slope angle for riprapped riverbanks falls between 1:1 and 2:1. This means for every horizontal foot, the slope rises one to two feet vertically. This range strikes a balance. A 1:1 slope provides maximum resistance to water flow, deflecting its energy upward. A 2:1 slope offers greater stability against sliding, especially in areas with high water velocity or seismic activity.
Think of it like a staircase. A steeper staircase (1:1) is harder to climb, forcing water to expend more energy. A gentler staircase (2:1) is easier to navigate but requires a stronger foundation to prevent collapse. The chosen slope angle depends on the river's characteristics: its average flow rate, peak flood levels, and the type of soil beneath the riprap.
A 1:1 slope is ideal for fast-flowing rivers with high energy, while a 2:1 slope suits slower-moving water and areas prone to erosion.
Achieving the correct slope isn't just about aesthetics. It's a precise calculation. Engineers factor in the river's hydraulic gradient, the weight of the riprap material, and the soil's shear strength. Miscalculations can lead to costly failures, with riprap washing away and the bank eroding further.
Why Banks Decline Bonds: A Risk-Based Approach
You may want to see also
Explore related products
Foundation Prep: Clear debris, compact soil, and add geotextile fabric for stability
Before placing riprap, the riverbank's foundation must be meticulously prepared to ensure long-term stability. This begins with clearing all debris, including vegetation, rocks, and organic matter, which can decompose and create voids beneath the riprap, leading to settlement and failure. Use heavy machinery like excavators or skid steers for efficient removal, ensuring the area is completely free of obstructions down to the mineral soil.
Compaction of the soil is the next critical step. Loose or poorly compacted soil will settle under the weight of the riprap and water pressure, causing the armor layer to shift or sink. Achieve proper compaction by using a vibratory plate compactor or a smooth drum roller, working in lifts of 6 to 8 inches. Aim for a minimum of 95% Standard Proctor Density, testing periodically to ensure compliance. For cohesive soils, pre-moisten the soil to optimal moisture content (typically 8-12%) before compacting to avoid dust and ensure maximum density.
Once the soil is compacted, install a geotextile fabric to separate the riprap from the soil, prevent erosion, and allow water to drain freely. Choose a non-woven geotextile with a minimum grab tensile strength of 280 lbs and a puncture resistance of 120 lbs, suitable for the anticipated load and soil conditions. Lay the fabric smoothly over the compacted soil, overlapping seams by 12 inches and securing it with fabric pins or staples. Ensure the fabric is free of wrinkles or tears, as these can compromise its effectiveness.
The interplay between these steps—clearing, compacting, and fabric installation—creates a robust foundation that resists erosion and supports the riprap. Skipping any step risks undermining the entire structure. For instance, debris left beneath the fabric can puncture it, while inadequate compaction leads to settlement. Conversely, a well-prepared foundation ensures the riprap remains stable, even under extreme hydraulic forces.
In practice, consider the site’s specific conditions. Steep banks may require additional compaction passes, while areas with high water flow might benefit from a heavier geotextile. Always inspect the foundation after preparation, looking for signs of weakness like soft spots or uneven surfaces. Address these issues immediately—re-compact or add fill as needed—before proceeding with riprap placement. This meticulous approach guarantees a foundation capable of withstanding the test of time and nature.
PNC Bank: Tennessee Branches and Services
You may want to see also
Explore related products
Placement Techniques: Hand-place or use machinery to tightly pack rocks for maximum coverage
The choice between hand-placing and using machinery to install riprap hinges on scale, precision, and budget. For small-scale projects like stabilizing a backyard creek bend, hand-placement offers unparalleled control. You can meticulously arrange rocks to interlock, creating a dense, natural-looking barrier that mimics the river’s organic contours. This method, though labor-intensive, ensures each stone contributes maximally to erosion resistance. For instance, a 30-foot section might require 2–3 days of work but yields a custom fit that machinery struggles to replicate.
Contrast this with large-scale projects, where excavators and skid steers become indispensable. Machinery can place and compact tons of rock per hour, ideal for shorelines spanning hundreds of feet. A 20-ton excavator with a thumb attachment, for example, can position boulders up to 3 feet in diameter with precision, while a vibratory plate compactor ensures layers are tightly packed. However, this speed comes with trade-offs: machine placement often requires larger rocks (12–24 inches) to minimize gaps, and the finished product may appear less natural.
A hybrid approach often yields the best results. Start by machine-placing the base layer, using angular rocks (not rounded river stones) to create a stable foundation. Follow this with hand-placed capstones along the water’s edge, where aesthetics and wave impact are critical. For example, a 4-inch layer of hand-set, flat-faced rocks can deflect 80% more wave energy than a machine-placed slope, according to a 2019 study by the U.S. Army Corps of Engineers.
Regardless of method, compaction is non-negotiable. Rocks must be packed tightly to prevent shifting under water pressure. For hand-placement, use a sledgehammer to settle stones into the soil or underlying gravel base. When using machinery, ensure the operator works in 6–8 inch lifts, compacting each layer before adding the next. A common mistake is overloading the slope, which can lead to settling and voids—limit rock size to 1.5 times the water depth to maintain stability.
Finally, consider the environmental impact. Hand-placement allows for selective grading, preserving native vegetation between rocks to enhance habitat. Machinery, while efficient, often requires clearing larger areas. For sensitive ecosystems, combine hand-placement with biodegradable erosion mats beneath the riprap to promote plant regrowth. This dual strategy not only stabilizes the bank but also fosters ecological recovery, turning a functional structure into a living shoreline.
Central Bank Strategies: Combating Inflation and Stabilizing Economies
You may want to see also
Explore related products
Maintenance Tips: Inspect annually, remove debris, and repair gaps to preserve effectiveness
Riprap, a durable armor of rocks and boulders, safeguards riverbanks from erosion, but its effectiveness isn’t set-it-and-forget-it. Annual inspections are your first line of defense. Walk the entire length of the riprap, noting any shifts, cracks, or exposed areas where water might undermine the structure. Look for signs of animal burrowing or vegetation growth, both of which can destabilize the rock layer. Use a measuring tape to check the thickness of the riprap layer; it should remain consistent with the original design, typically 1.5 to 2 times the diameter of the largest rock used. Document your findings with photos and notes to track changes over time.
Debris accumulation is a silent saboteur of riprap integrity. Leaves, branches, and sediment can trap water, accelerating erosion beneath the rocks. Remove debris at least twice a year, or more frequently after heavy storms. Use a rake or shovel to clear the surface, but avoid heavy machinery that could displace the rocks. For larger debris like fallen trees, consider hiring professionals to ensure safe removal without damaging the riprap. In areas prone to high water flow, install debris screens upstream to reduce the workload.
Gaps in riprap are more than eyesores—they’re invitations for erosion. Repair them promptly using rocks of similar size and shape to the existing material. Ensure new rocks are placed tightly against the adjacent stones, maintaining the interlocking structure. For larger gaps, refill the void with smaller gravel or sand before adding the replacement rock to ensure stability. If gaps recur in the same area, investigate the underlying cause, such as poor foundation preparation or inadequate rock size, and address it to prevent further issues.
Preserving riprap effectiveness is a proactive process, not a reactive one. Combine annual inspections, debris removal, and gap repairs with a long-term maintenance plan. Budget for these tasks annually, and train staff or contractors to recognize early warning signs of failure. In regions with extreme weather, schedule additional inspections after major storms. By treating riprap maintenance as an ongoing commitment, you’ll extend its lifespan and protect your riverbank investment for decades.
Discover Jos. A. Bank Pants: Linen or Not?
You may want to see also
Frequently asked questions
Rip rap is a layer of large, loose stones or concrete chunks used to protect shorelines, river banks, and other areas from erosion. It absorbs and deflects the energy of waves and currents, preventing soil erosion and maintaining the structural integrity of the bank.
The size of rip rap depends on the velocity of the water and the slope of the bank. Generally, larger stones (6–12 inches) are used for high-energy areas, while smaller stones (3–6 inches) are suitable for lower-energy zones. Consult a hydraulic engineer or use design guidelines for precise sizing.
Installation involves clearing the area, grading the bank to the desired slope, laying a geotextile fabric to prevent soil migration, and placing the rip rap stones in a stable, interlocking pattern. Ensure proper compaction and overlap to maximize effectiveness.
Yes, permits are often required for river bank stabilization projects due to environmental regulations. Check with local, state, or federal agencies (e.g., Army Corps of Engineers) to ensure compliance with laws protecting waterways and wildlife.
Regularly inspect the rip rap for displacement, settling, or damage. Remove debris, repair gaps, and replace stones as needed. Monitor the bank for signs of erosion and address issues promptly to ensure long-term stability.
