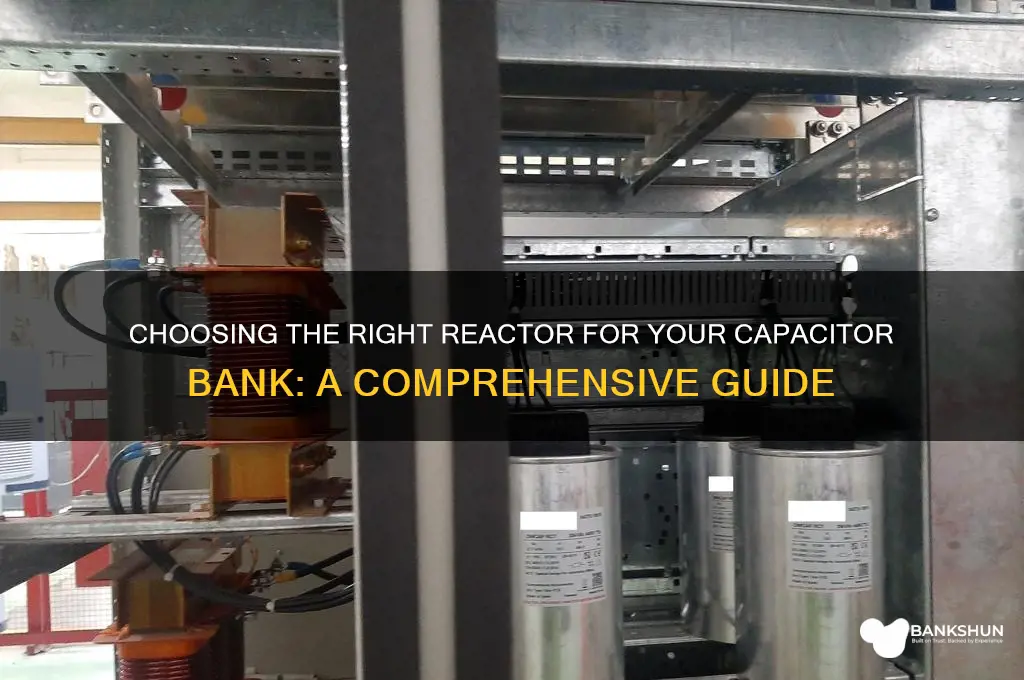

Selecting the appropriate reactor for a capacitor bank is crucial to ensure efficient power factor correction, mitigate harmonic distortion, and protect the system from overvoltages. The choice depends on factors such as the capacitor bank’s rating, system voltage, expected harmonic levels, and compliance with standards like IEEE 519. Reactors are typically sized to limit inrush currents, reduce harmonic amplification, and provide a safe resonance margin. Key considerations include the reactor’s inductance value, which should be calculated based on the capacitor bank’s reactive power and the desired resonance frequency, as well as its thermal and mechanical specifications to handle continuous and transient loads. Additionally, the reactor’s design—whether air-core or iron-core—impacts its performance, cost, and suitability for the application. Proper selection ensures system stability, prolongs equipment lifespan, and optimizes energy efficiency.
Explore related products
What You'll Learn
- Voltage & Current Ratings: Match reactor ratings to capacitor bank voltage and current for safe operation
- System Frequency: Select reactor based on system frequency (50/60 Hz) for optimal performance
- Harmonic Mitigation: Choose reactor to filter harmonics and protect capacitors from distortion
- Reactor Type Selection: Decide between air-core, iron-core, or tuned reactors based on application
- Size & Cooling: Ensure reactor size and cooling method fit installation space and thermal requirements
Voltage & Current Ratings: Match reactor ratings to capacitor bank voltage and current for safe operation
Selecting a reactor for a capacitor bank demands precision in voltage and current ratings to ensure safe and efficient operation. The reactor must be rated to handle the maximum voltage and current levels present in the system, accounting for both steady-state and transient conditions. For instance, if the capacitor bank operates at 12 kV, the reactor should be rated at least 12 kV, but a 15 kV rating provides a safety margin against voltage spikes. Similarly, the reactor’s current rating must match or exceed the capacitor bank’s reactive current, typically calculated as \( I = Q \times V \), where \( Q \) is the reactive power in var and \( V \) is the voltage in volts. Overlooking these ratings risks equipment failure or reduced system lifespan.
Consider the practical implications of mismatched ratings. A reactor with insufficient voltage rating can lead to insulation breakdown, while one with inadequate current capacity may overheat or saturate, degrading performance. For example, a 10 kV reactor paired with a 12 kV capacitor bank could fail catastrophically during voltage surges, common in industrial environments. Conversely, a reactor rated for 20 kV but only handling 50 A in a system requiring 100 A would bottleneck current flow, increasing losses and inefficiency. These scenarios underscore the need for meticulous alignment of reactor and capacitor bank specifications.
To achieve this alignment, follow a systematic approach. First, determine the capacitor bank’s nominal voltage and reactive power (var) rating. Next, calculate the reactive current using the formula mentioned earlier. For instance, a 1,000 var capacitor bank at 480 V requires a reactor rated for \( I = \frac{1,000}{480} \approx 2.08 \) A. Then, select a reactor with a voltage rating at least 10–20% higher than the system voltage to accommodate transients. Finally, ensure the reactor’s current rating meets or exceeds the calculated reactive current. This methodical process minimizes risks and optimizes system performance.
A comparative analysis reveals the consequences of under- or over-sizing reactors. An undersized reactor may fail prematurely, while an oversized one adds unnecessary cost and bulk. For example, a 5 Mvar capacitor bank at 6.6 kV requires a reactor rated for approximately 750 A. Choosing a reactor rated for 500 A would lead to overheating, whereas a 1,500 A reactor, though safe, would be excessively expensive. Striking the right balance ensures reliability without overspending, making it a critical aspect of reactor selection.
In conclusion, matching reactor voltage and current ratings to the capacitor bank’s requirements is non-negotiable for safe and efficient operation. By calculating reactive current, accounting for voltage transients, and avoiding over-specification, engineers can select reactors that protect equipment, minimize losses, and extend system life. This precision-driven approach transforms reactor selection from guesswork into a science, safeguarding both investment and performance.
