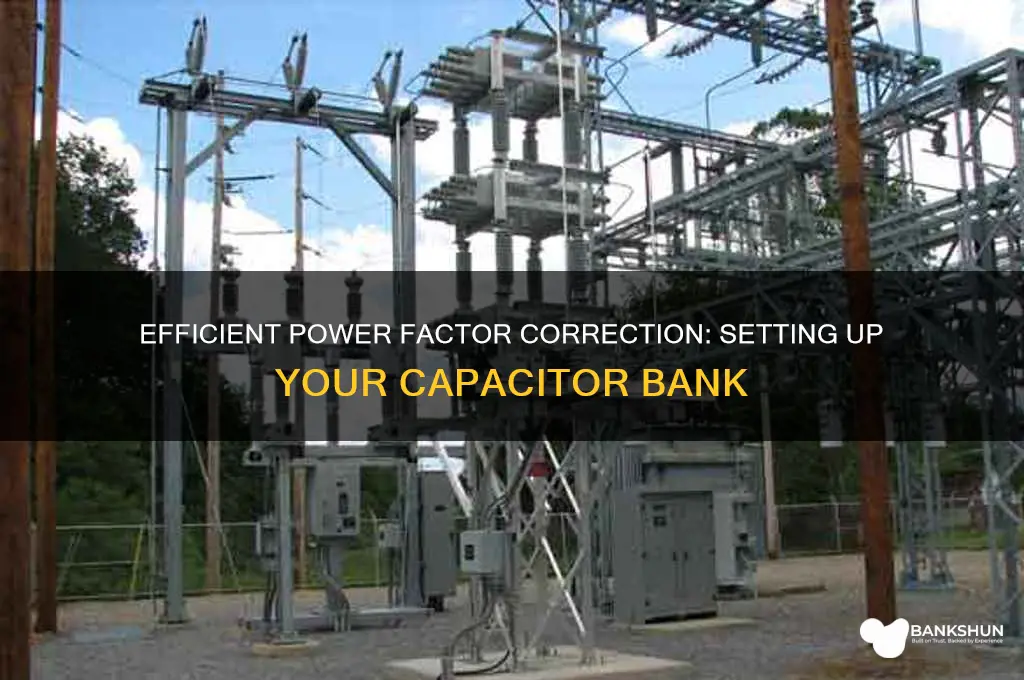

Setting up a capacitor bank is a critical process that involves careful planning, selection, and installation to ensure optimal performance and safety. A capacitor bank is typically used in electrical systems to improve power factor, reduce energy losses, and stabilize voltage levels. The first step is to assess the system’s requirements, including the desired power factor correction, voltage rating, and reactive power needs. Next, select capacitors with appropriate ratings, ensuring compatibility with the system’s voltage and frequency. Proper arrangement and connection of capacitors, whether in series, parallel, or a combination, are essential to achieve the desired capacitance and withstand system demands. Adequate protection devices, such as fuses or circuit breakers, must be installed to safeguard against overcurrent and short circuits. Finally, thorough testing and commissioning are necessary to verify the capacitor bank’s functionality and integration with the existing electrical system. Following these steps ensures a reliable and efficient capacitor bank setup.
Explore related products
What You'll Learn
- Capacitor Selection: Choose capacitors based on voltage rating, capacitance, and energy storage needs
- Series/Parallel Configuration: Determine wiring to achieve desired voltage and capacitance levels
- Safety Precautions: Install discharge resistors, fuses, and insulation to prevent hazards
- Mounting and Cooling: Ensure proper ventilation and secure mounting to avoid overheating
- Testing and Maintenance: Verify functionality, monitor performance, and conduct regular inspections for reliability
Capacitor Selection: Choose capacitors based on voltage rating, capacitance, and energy storage needs
Selecting the right capacitors for your bank is a critical step that hinges on three key parameters: voltage rating, capacitance, and energy storage requirements. Voltage rating must exceed the maximum voltage in your system to prevent dielectric breakdown. For instance, if your application operates at 400V, choose capacitors rated at least 20% higher—opt for 480V or 500V capacitors to ensure safety and longevity. Ignoring this can lead to catastrophic failure, as capacitors under voltage stress degrade rapidly and may even rupture.
Capacitance determines the amount of charge a capacitor can store, directly impacting its ability to smooth voltage fluctuations or deliver energy bursts. Calculate your required capacitance by assessing the load’s demand and the desired ripple voltage reduction. For example, a motor drive requiring 1000µF at 400V might need multiple 220µF capacitors in parallel to achieve the total capacitance. However, be cautious: excessive capacitance can lead to inrush currents or prolonged discharge times, straining the system.
Energy storage needs tie capacitance and voltage together, as energy stored in a capacitor is proportional to both. The formula \( E = \frac{1}{2}CV^2 \) is your guide here. For a high-energy application like a pulsed laser system, prioritize capacitors with both high voltage ratings and large capacitance values. For instance, a 1000µF capacitor at 500V stores 125 joules, while a 220µF capacitor at the same voltage stores only 27.5 joules. Match the energy storage to the application’s pulse duration and power requirements to avoid underperformance or inefficiency.
Practical tips include considering the capacitor’s equivalent series resistance (ESR) and temperature stability, as these affect efficiency and reliability under varying loads and environments. For high-frequency applications, low ESR capacitors minimize heat generation and improve performance. Additionally, series or parallel configurations can tailor voltage and capacitance to your needs—just ensure not to exceed individual capacitor ratings. For example, connecting two 250V capacitors in series doubles the voltage handling to 500V but halves the total capacitance.
In summary, capacitor selection is a balance of voltage safety, capacitance adequacy, and energy storage precision. Start with your system’s voltage and energy demands, then work backward to identify capacitors that meet or exceed these criteria. Always factor in a safety margin and consider environmental conditions to ensure your capacitor bank operates reliably and efficiently.
Does the Federal Reserve Offer Banking Services? Unveiling Its Role
You may want to see also
Explore related products
Series/Parallel Configuration: Determine wiring to achieve desired voltage and capacitance levels
Capacitors in series divide voltage across each component, while those in parallel sum their capacitance values. This fundamental principle underpins the wiring strategy for capacitor banks, allowing you to tailor voltage and capacitance to specific application needs. For instance, if you have three 100μF capacitors rated at 50V each, connecting them in parallel yields a 300μF capacitance at 50V, whereas a series configuration results in a 100μF capacitance at 150V. Understanding this relationship is crucial for designing capacitor banks that meet both voltage and energy storage requirements.
To achieve a desired voltage rating, capacitors must be wired in series. Each capacitor’s voltage rating adds up, but the total capacitance decreases. For example, if you need a 200V bank and have four 50V capacitors, connect them in series. However, the total capacitance will be one-fourth of a single capacitor’s value. This trade-off necessitates careful planning, especially in high-voltage applications like power factor correction or pulse discharge systems. Always ensure each capacitor’s voltage rating exceeds the expected operating voltage by at least 20% to account for spikes.
Parallel wiring, on the other hand, increases total capacitance while maintaining the voltage rating of individual capacitors. This configuration is ideal for applications requiring high energy storage, such as flash photography or motor start circuits. For example, connecting six 10μF, 250V capacitors in parallel results in a 60μF, 250V bank. However, parallel configurations demand balancing resistors or specialized components to prevent current hogging, which can lead to overheating or failure of individual capacitors.
A hybrid approach—combining series and parallel wiring—offers flexibility for complex requirements. Suppose you need a 150μF, 300V bank. Start by connecting three 50μF, 100V capacitors in parallel to achieve 150μF at 100V. Then, wire three of these parallel groups in series to reach 300V. This method requires precision in component selection and wiring, but it allows for fine-tuning both voltage and capacitance. Always verify the final configuration with a multimeter to ensure accuracy and safety.
Practical tips include using capacitors with identical specifications to avoid imbalances and selecting components with higher voltage ratings than necessary for added safety. Label each capacitor and its position in the bank to simplify troubleshooting. For high-energy applications, incorporate a bleed resistor across the bank to discharge stored energy safely. By mastering series and parallel configurations, you can design capacitor banks that meet exacting specifications, ensuring optimal performance and reliability in diverse electrical systems.
Does FINRA Rule 3210 Apply to Banks? Key Insights
You may want to see also
Explore related products
Safety Precautions: Install discharge resistors, fuses, and insulation to prevent hazards
Capacitors store energy, and a capacitor bank amplifies this storage capacity, making it a powerful yet potentially dangerous component in electrical systems. Without proper safety measures, residual charge can remain even after power is disconnected, posing risks of electric shock, equipment damage, or fire. Discharge resistors, fuses, and insulation are critical components that mitigate these hazards, ensuring safe operation and maintenance.
Discharge resistors are the first line of defense against residual charge. These resistors are connected in parallel with each capacitor and provide a low-resistance path for stored energy to dissipate quickly after the system is powered down. For optimal safety, select resistors with a power rating that can handle the maximum energy stored in the capacitors and a resistance value that allows discharge within a safe timeframe, typically under one minute. A common rule of thumb is to use a resistor value of approximately 10 times the capacitor’s equivalent series resistance (ESR) for effective discharge without excessive power loss during operation.
Fuses serve as a fail-safe mechanism to protect the capacitor bank and connected equipment from overcurrent conditions. Install a fuse in series with each capacitor or group of capacitors, ensuring the fuse rating matches the maximum current the capacitors can handle. For example, a capacitor bank rated for 100A should use a fuse with a slightly lower rating, such as 80–90A, to interrupt faults before they cause damage. Avoid the temptation to use higher-rated fuses, as this compromises protection and increases the risk of catastrophic failure.
Insulation is equally vital, particularly in high-voltage capacitor banks, to prevent short circuits and electric shock. Use materials like epoxy-coated boards, silicone rubber, or high-voltage insulation paper to isolate capacitor terminals and busbars. Ensure all exposed conductive surfaces are covered, and maintain proper spacing between components according to voltage ratings—a minimum of 1 cm per kV is a standard guideline. Regularly inspect insulation for cracks, wear, or contamination, especially in humid or dusty environments, and replace it immediately if compromised.
Combining these measures creates a robust safety framework for capacitor banks. Discharge resistors neutralize residual charge, fuses protect against overcurrent, and insulation prevents electrical faults. While these components add complexity and cost, they are indispensable for safeguarding personnel, equipment, and infrastructure. Always consult manufacturer guidelines and industry standards, such as IEC 6239 or UL 810, to ensure compliance and optimal performance. By prioritizing safety at every stage of setup and maintenance, you can harness the power of capacitor banks without compromising reliability or security.
Quick Guide to Locating Your PNC Bank User ID Easily
You may want to see also
Explore related products
Mounting and Cooling: Ensure proper ventilation and secure mounting to avoid overheating
Capacitors generate heat during operation, and without adequate ventilation, this heat can accumulate, leading to reduced efficiency, shortened lifespan, or even failure. Proper mounting ensures that heat is dissipated effectively, while secure installation prevents physical damage from vibration or movement. For instance, a capacitor bank in an industrial setting might require a minimum clearance of 2–3 inches around each unit to allow for airflow, with additional spacing if the environment exceeds 40°C (104°F).
Instructive steps begin with selecting a mounting location that avoids direct sunlight, high humidity, or proximity to heat sources like motors or transformers. Use non-conductive, heat-resistant materials for mounting brackets to prevent electrical shorts and thermal transfer. Secure capacitors with vibration-damping mounts, especially in environments with machinery or frequent movement. For example, rubber isolators can reduce vibration by up to 80%, minimizing stress on solder joints and internal components.
Comparatively, passive cooling through natural convection is sufficient for small capacitor banks (under 100 kVAR), but larger setups (over 500 kVAR) often require active cooling solutions like fans or heat sinks. Forced air systems, such as those used in data centers, can maintain temperatures below 60°C (140°F), which is critical for high-power applications. However, active cooling adds complexity and cost, so balance the need for cooling with the system’s size and budget.
Descriptively, imagine a poorly ventilated capacitor bank in a cramped electrical room. Over time, the heat builds, causing the capacitors to expand and contract, weakening their casings. Eventually, one fails, triggering a chain reaction that damages adjacent units. In contrast, a well-ventilated setup with spaced-out units and a fan-assisted cooling system operates smoothly, with temperature sensors showing consistent readings below 50°C (122°F), ensuring reliability and longevity.
Persuasively, investing in proper mounting and cooling isn’t just about preventing failure—it’s about optimizing performance. Overheated capacitors can lose up to 20% of their capacitance, reducing the efficiency of power factor correction systems. By prioritizing ventilation and secure mounting, you not only protect your equipment but also maximize energy savings and operational uptime. Practical tips include using thermal paste on heat sinks, installing temperature alarms, and scheduling biannual inspections to ensure airflow pathways remain unobstructed.
Effortless Tax Payment: A Step-by-Step Guide to Net Banking
You may want to see also
Explore related products
Testing and Maintenance: Verify functionality, monitor performance, and conduct regular inspections for reliability
Regular testing and maintenance are critical to ensuring the reliability and longevity of a capacitor bank. Begin by verifying functionality immediately after installation. Use a multimeter to check each capacitor’s voltage and compare it against the manufacturer’s specifications. Look for deviations of more than ±5%, as these could indicate faulty components or improper connections. Additionally, perform an insulation resistance test using a megohmmeter to ensure the capacitors can withstand operational stresses without failing prematurely.
Monitoring performance over time is equally vital. Install a power quality analyzer to track key metrics such as reactive power compensation, harmonic distortion, and energy savings. Set thresholds for alerts—for instance, a 10% drop in capacitance or a 5% increase in harmonic levels—to flag potential issues before they escalate. Log data monthly and compare it against baseline readings to identify trends, such as gradual capacitance loss or rising operating temperatures, which may signal degradation.
Inspections should be conducted at regular intervals, with frequency determined by the bank’s operating conditions. For indoor installations in controlled environments, biannual inspections suffice, while outdoor or high-stress setups require quarterly checks. During inspections, visually examine capacitors for swelling, leakage, or discoloration, which are telltale signs of failure. Also, inspect busbars and connections for corrosion or overheating, tightening loose terminals with a torque wrench to manufacturer-recommended values (typically 20–30 Nm for M8 bolts).
A proactive maintenance schedule extends beyond inspections. Implement a cleaning routine to remove dust and debris, which can cause overheating, using compressed air or a soft brush. For banks in humid environments, consider adding desiccant packs to control moisture levels. Finally, keep detailed records of all tests, repairs, and replacements, as this documentation aids in troubleshooting and ensures compliance with safety standards. By adhering to these practices, you safeguard the capacitor bank’s performance and minimize downtime.
Provident Bank Employee Count: Unveiling the Workforce Behind the Institution
You may want to see also
Frequently asked questions
A capacitor bank is a group of capacitors connected in parallel or series to store electrical energy and improve power factor in electrical systems. It is used to reduce reactive power, stabilize voltage, and enhance efficiency in industrial and commercial applications.
Calculate the required capacitance (kVAR) based on your system's reactive power demand, typically measured through a power factor analysis. A general rule is to aim for a power factor of 0.95 or higher, and consult an engineer or use sizing tools for accuracy.
In series, the total capacitance decreases, and voltage rating increases, while in parallel, the total capacitance increases, and the voltage rating remains the same as individual capacitors. Parallel is more common for capacitor banks to achieve higher capacitance.
Ensure the system is de-energized before installation, use proper personal protective equipment (PPE), and install discharge resistors to safely dissipate stored energy. Follow manufacturer guidelines and local electrical codes.
Yes, capacitor banks can be installed in both single-phase and three-phase systems. However, the configuration and sizing will differ based on the system type and load requirements. Always consult a professional for proper setup.
