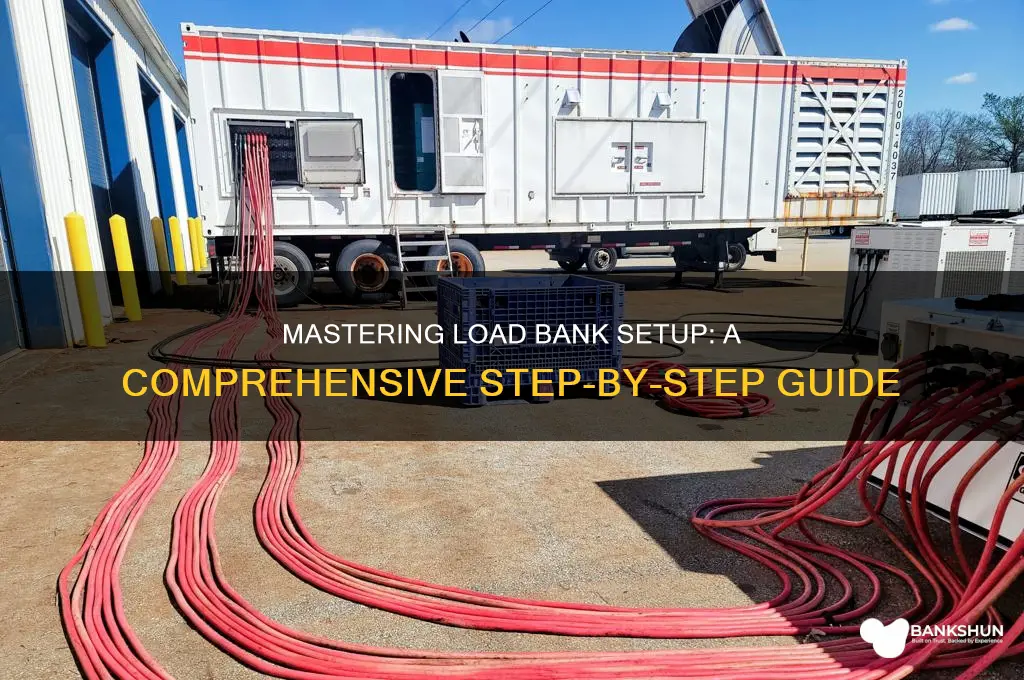

Setting up a load bank is a critical process for testing and maintaining power generation systems, ensuring they operate efficiently and reliably under various load conditions. A load bank simulates electrical loads to test the performance, capacity, and stability of generators, UPS systems, and other power sources. To begin, select the appropriate type of load bank—resistive, reactive, or a combination—based on the specific testing requirements. Next, ensure the load bank is properly connected to the power source using suitable cables and connectors, adhering to safety standards and manufacturer guidelines. Gradually apply the load in increments to avoid sudden stress on the system, monitoring parameters such as voltage, current, and temperature throughout the test. Finally, record the results to assess the system’s performance and identify any potential issues, ensuring it meets operational standards before deployment. Proper setup and operation of a load bank are essential for preventing equipment failure and ensuring long-term reliability.
| Characteristics | Values |
|---|---|
| Purpose | To test and validate the performance of power generation systems (e.g., generators, UPS). |
| Location | Outdoor or indoor with proper ventilation to dissipate heat. |
| Power Source | Connect to the power generation system being tested (generator, UPS, etc.). |
| Load Bank Type | Resistive, Reactive, or Combined (depending on testing requirements). |
| Capacity | Match or exceed the rated capacity of the power system being tested. |
| Connection | Use appropriately sized cables and connectors (e.g., Camlock, lug terminals). |
| Safety Measures | Ensure proper grounding, use PPE, and follow manufacturer guidelines. |
| Control Panel | Set desired load levels using the control panel or remote interface. |
| Monitoring | Monitor voltage, current, frequency, and temperature during testing. |
| Cooling System | Ensure the load bank's cooling system (fans, heat sinks) is functional. |
| Testing Duration | Test for a specified duration (e.g., 1 hour, 8 hours) based on requirements. |
| Load Steps | Gradually increase or decrease load in steps to avoid stress on the system. |
| Data Logging | Record test data for analysis and reporting. |
| Post-Test Procedures | Disconnect the load bank, inspect for damage, and store properly. |
| Maintenance | Regularly inspect and clean the load bank to ensure optimal performance. |
| Compliance | Ensure setup complies with local safety and electrical codes. |
Explore related products
What You'll Learn
- Load Bank Types: Understand resistive, reactive, and electronic load banks for specific testing needs
- Capacity Calculation: Determine required load bank capacity based on system or equipment size
- Safety Precautions: Implement grounding, ventilation, and PPE to ensure safe operation
- Connection Setup: Connect load banks to power sources using proper cables and configurations
- Testing Procedures: Follow step-by-step protocols for load testing, monitoring, and data recording
Load Bank Types: Understand resistive, reactive, and electronic load banks for specific testing needs
Load banks are essential tools for testing and maintaining power systems, but not all load banks are created equal. Understanding the differences between resistive, reactive, and electronic load banks is crucial for selecting the right type for your specific testing needs. Each type serves distinct purposes, and their applications vary widely depending on the system being tested.
Resistive load banks are the most straightforward and commonly used type. They simulate real-world loads by converting electrical energy into heat through resistive elements. These load banks are ideal for testing generators, uninterruptible power supplies (UPS), and batteries under purely resistive conditions. For instance, when testing a diesel generator, a resistive load bank can be used to apply a load of up to 100% of the generator’s rated capacity in 25% increments. This allows operators to verify performance, fuel consumption, and temperature stability under full load. A key advantage of resistive load banks is their simplicity and durability, making them cost-effective for basic load testing.
Reactive load banks, on the other hand, introduce inductive or capacitive loads to simulate real-world power factors. Power factor is a critical parameter in AC systems, representing the efficiency of power transmission. Reactive load banks are essential for testing generators and UPS systems in environments where motors, transformers, or other inductive loads are present. For example, a generator supplying power to a manufacturing facility with heavy machinery would need to be tested under a lagging power factor (inductive load). Reactive load banks can be adjusted to create power factors ranging from 0.8 lagging to 0.8 leading, ensuring the system performs reliably under varying conditions. However, these load banks are more complex and expensive than resistive types, making them suitable for specialized applications.
Electronic load banks represent the most advanced and versatile option. Unlike resistive and reactive load banks, which rely on physical components, electronic load banks use solid-state technology to simulate a wide range of loads dynamically. They can mimic resistive, inductive, and capacitive loads simultaneously, allowing for precise control over voltage, current, and frequency. This makes them ideal for testing modern power systems, such as renewable energy inverters or data center UPS units, which require highly accurate and programmable load conditions. For instance, an electronic load bank can simulate a sudden drop in load to test a UPS’s transfer time or apply a step load to assess a generator’s response to rapid changes. While electronic load banks are the most expensive option, their flexibility and precision justify the investment for advanced testing scenarios.
Choosing the right load bank type depends on the specific testing requirements and the system being evaluated. For basic load testing and verification, a resistive load bank is often sufficient. When power factor correction or inductive load simulation is necessary, a reactive load bank becomes essential. For cutting-edge applications requiring dynamic and precise load control, an electronic load bank is the only viable choice. Regardless of the type, proper setup and safety precautions are critical. Always ensure the load bank is rated for the system’s voltage and current, and follow manufacturer guidelines for connection and operation. By understanding the unique capabilities of each load bank type, operators can ensure accurate, reliable, and efficient testing of their power systems.
