Shoring up a river bank is essential for preventing erosion, protecting property, and maintaining the health of aquatic ecosystems. Riverbanks are naturally susceptible to erosion from water flow, wave action, and weather events, which can lead to land loss, infrastructure damage, and sedimentation in waterways. Effective bank stabilization methods include the use of natural materials like vegetation, coir logs, or native plants, which promote root growth to hold soil in place, as well as engineered solutions such as riprap (stacked stone), retaining walls, or geotextiles. The choice of method depends on factors like the river’s velocity, soil type, and environmental impact, with sustainable practices often prioritizing eco-friendly approaches to balance human needs with ecological preservation. Proper planning, regular maintenance, and compliance with local regulations are critical to ensuring long-term success in shoring up riverbanks.
| Characteristics | Values |
|---|---|
| Purpose | Prevent erosion, stabilize banks, protect property, improve water quality, enhance habitat |
| Methods | Riprap, vegetation, retaining walls, bioengineering, geotextiles, articulated concrete blocks, gabions |
| Riprap | Durable rocks or concrete placed along the bank to absorb wave energy and prevent erosion. Sizes range from 4-24 inches. Requires proper foundation and drainage. |
| Vegetation | Native plants with deep roots stabilize soil, reduce water velocity, and filter pollutants. Examples: willows, grasses, shrubs. Requires regular maintenance. |
| Retaining Walls | Vertical structures made of concrete, stone, or wood to hold back soil and water. Expensive, requires engineering, and may disrupt natural processes. |
| Bioengineering | Combines vegetation with natural materials like coconut fiber or jute mats to create living structures. Environmentally friendly, cost-effective, and self-sustaining. |
| Geotextiles | Synthetic fabrics used to stabilize soil, prevent erosion, and promote vegetation growth. Often used in conjunction with other methods. |
| Articulated Concrete Blocks | Interlocking concrete blocks that mimic natural rock formations. Absorb wave energy, allow water flow, and support vegetation. |
| Gabions | Wire baskets filled with rocks or concrete. Provide flexible, permeable structures that adapt to changing conditions. |
| Cost | Varies widely based on method, size, and location. Riprap: $10-$30/sq.ft., Retaining Walls: $20-$100/sq.ft., Bioengineering: $5-$20/sq.ft. |
| Maintenance | Regular inspections, vegetation management, debris removal, and repairs as needed. |
| Environmental Impact | Bioengineering and vegetation have minimal impact, while retaining walls and riprap may disrupt habitats and water flow. |
| Permits | Required for most projects, especially near protected waterways or floodplains. Check local regulations. |
| Lifespan | Varies by method: Vegetation: indefinite with maintenance, Riprap: 20-50 years, Retaining Walls: 50+ years. |
| Effectiveness | Depends on site conditions, method chosen, and proper installation. Combine methods for best results. |
Explore related products
What You'll Learn
- Use Riprap: Place large rocks along the bank to absorb wave energy and prevent erosion
- Install Gabions: Wire baskets filled with rocks stabilize banks and reduce water impact
- Plant Vegetation: Root systems of native plants hold soil and prevent erosion effectively
- Build Retaining Walls: Construct walls to support banks and prevent collapse from water flow
- Apply Geotextiles: Use fabric mats to protect soil and enhance bank stability against erosion

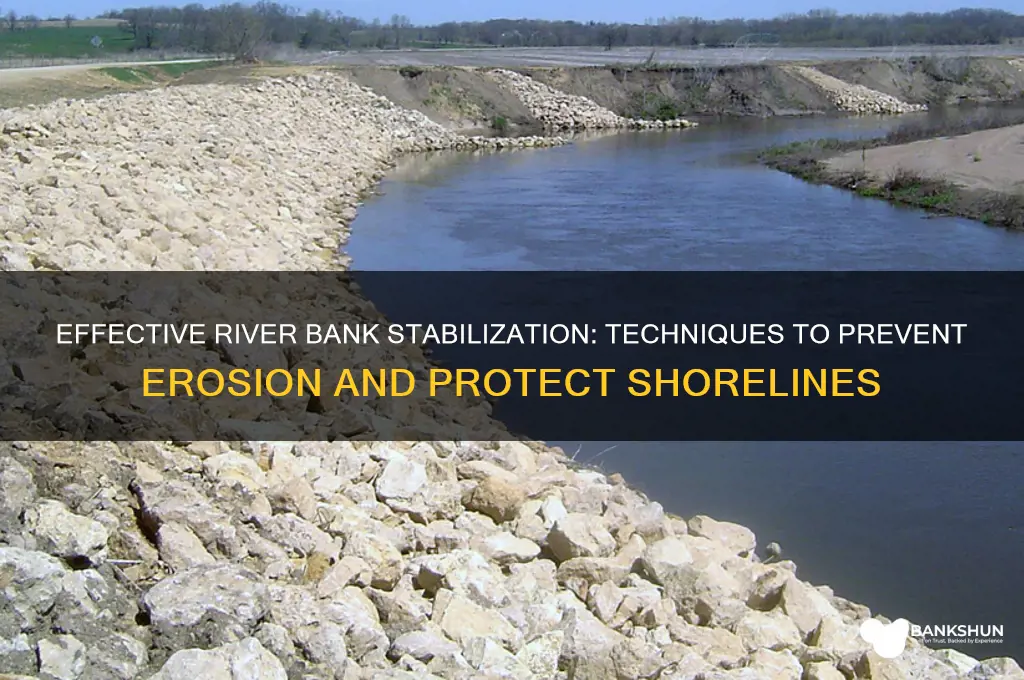

Use Riprap: Place large rocks along the bank to absorb wave energy and prevent erosion
Riprap, a simple yet effective technique, involves strategically placing large rocks along a riverbank to combat erosion. This method harnesses the natural strength and stability of rocks to dissipate wave energy, protecting the bank from the relentless forces of flowing water. The concept is straightforward: by creating a barrier of rugged, interlocking stones, you provide a sacrificial layer that absorbs the impact of waves and currents, shielding the vulnerable soil beneath.
The effectiveness of riprap lies in its ability to mimic natural rock formations found along stable riverbanks. These rocks, typically ranging from 4 to 24 inches in diameter, are carefully selected for their durability and size. Larger rocks are used for areas with higher wave energy, while smaller ones are suitable for gentler flows. The key is to create a stable, interlocking structure that can withstand the river's force without being dislodged. For instance, a riverbank prone to frequent flooding might require a riprap layer 2-3 feet thick, with rocks sized to ensure they don't get washed away during high water events.
Implementing riprap is a labor-intensive process but offers long-term benefits. First, the bank is prepared by removing any loose material and ensuring a stable foundation. Rocks are then placed in a staggered pattern, starting from the water's edge and extending upwards, creating a slope that encourages water to flow smoothly over the surface. This technique is particularly useful in areas where vegetation alone cannot provide sufficient protection, such as steep banks or sections with high water velocity.
One of the advantages of riprap is its low maintenance requirement compared to other erosion control methods. Once installed, the rocks can last for decades, providing continuous protection. However, periodic inspections are necessary to ensure the structure remains intact, especially after significant weather events. If rocks become dislodged or the layer thins, prompt repairs are essential to maintain the bank's integrity.
In contrast to softer erosion control methods like vegetation or geotextiles, riprap offers a more immediate and robust solution. While it may not provide the aesthetic appeal of a natural, vegetated bank, it is invaluable in critical areas where rapid erosion control is necessary. For riverbanks facing severe erosion threats, riprap can be a lifesaver, quite literally, by preventing the loss of land and potential damage to nearby structures. This method's effectiveness has been proven in numerous river restoration projects, making it a go-to strategy for engineers and environmental managers alike.
Step-by-Step Guide to Registering for BDO Internet Banking Online
You may want to see also
Explore related products
Install Gabions: Wire baskets filled with rocks stabilize banks and reduce water impact
Gabions, wire baskets filled with rocks, offer a robust solution for stabilizing river banks and mitigating the erosive force of flowing water. Their effectiveness lies in their ability to absorb and dissipate energy, creating a barrier that withstands the river’s relentless pressure. Unlike rigid structures like concrete walls, gabions flex slightly under stress, reducing the risk of catastrophic failure while maintaining their integrity over time. This natural give-and-take mimics the river’s dynamics, making gabions a harmonious addition to riparian environments.
Installing gabions begins with careful planning. Assess the bank’s slope, soil type, and water flow patterns to determine the optimal placement and size of the gabions. Typically, baskets are stacked in tiers, with each layer stepped back slightly to create a stable, terraced structure. The wire mesh should be galvanized or coated to prevent rust, ensuring longevity in wet conditions. Rocks used to fill the baskets should be angular and range in size from 3 to 8 inches for maximum interlocking and stability. Avoid rounded stones, as they can shift under pressure, compromising the structure.
One of the key advantages of gabions is their dual functionality: they not only stabilize banks but also enhance habitat. The voids between rocks provide shelter for small aquatic organisms and plants, fostering biodiversity. Over time, vegetation can grow through the gabions, further anchoring them and blending them into the natural landscape. This symbiotic relationship between engineering and ecology makes gabions a preferred choice for environmentally conscious projects.
Despite their benefits, gabions require maintenance to ensure long-term effectiveness. Inspect them annually for signs of wear, such as rusted wire or displaced rocks, and address issues promptly. Vegetation should be managed to prevent roots from compromising the structure. While the initial cost of gabions can be higher than some alternatives, their durability and low maintenance needs often make them a cost-effective solution over time. When installed correctly, gabions can protect river banks for decades, offering both resilience and aesthetic appeal.
Exploring Diverse Banking Options Available in Gilbert, Iowa
You may want to see also
Explore related products
Plant Vegetation: Root systems of native plants hold soil and prevent erosion effectively
Native plants are nature’s engineers when it comes to stabilizing riverbanks. Their root systems, often deep and extensive, act as a natural mesh that binds soil particles together, reducing the risk of erosion caused by water flow. Unlike superficial solutions like concrete barriers, these roots penetrate multiple soil layers, providing structural integrity that adapts to seasonal changes. For instance, the roots of willows and dogwoods can extend several feet downward and outward, creating a subsurface network that withstands both steady currents and sudden floods. This biological approach not only preserves the bank but also enhances the ecosystem by supporting local wildlife and improving water quality.
Selecting the right native species is critical for maximizing erosion control. Plants like sedges, rushes, and native grasses are particularly effective due to their fibrous root systems, which form dense mats that anchor soil in place. For steeper banks, consider shrubs or trees with deeper taproots, such as blackberry or cottonwood, which provide additional stability. When planting, space seedlings 12–18 inches apart to ensure root systems interlock as they grow. Avoid invasive species, as they can outcompete native plants and disrupt the balance of the ecosystem. Local nurseries or conservation agencies often provide region-specific recommendations tailored to your riverbank’s conditions.
Timing and technique are key to successful vegetation establishment. Plant during the dormant season (late fall to early spring) when plants are less stressed and can focus energy on root development. Prepare the site by loosening compacted soil and adding organic matter to improve water retention. Use biodegradable coir mats or jute netting to protect young plants from immediate erosion until roots take hold. Water regularly for the first growing season, but avoid overwatering, as this can weaken root systems. Mulching around plants helps retain moisture and suppress weeds, giving natives a competitive edge.
While planting vegetation is highly effective, it’s not a standalone solution for severely eroded banks. Combine it with complementary techniques like riparian buffers or bioengineering structures (e.g., brush layering or fascines) for added resilience. Monitor the site annually, replacing any plants that fail to establish and removing invasive species that encroach. Over time, a well-planted riverbank will not only stabilize but also evolve into a thriving habitat, proving that working with nature yields far more sustainable results than fighting against it.
Does Commerce Bank Offer Coin Counting Machines? A Quick Guide
You may want to see also
Explore related products
Build Retaining Walls: Construct walls to support banks and prevent collapse from water flow
Retaining walls are a proven method for stabilizing riverbanks, offering both structural integrity and long-term erosion control. These walls act as barriers, counteracting the hydraulic forces that erode soil and cause bank collapse. Constructed from materials like concrete, stone, or timber, they can be tailored to the specific needs of the site, balancing durability with environmental considerations. For instance, a concrete retaining wall might be ideal for high-flow areas, while a timber wall could blend more naturally into a scenic riverside setting.
The process of building a retaining wall begins with a thorough site assessment. Factors such as soil type, water flow rate, and bank slope must be evaluated to determine the wall’s design and material requirements. For example, sandy soils may require deeper foundations to prevent undermining, while clay soils might need additional drainage to avoid water buildup behind the wall. Once the design is finalized, excavation and foundation preparation follow. Proper compaction of the base is critical to ensure the wall’s stability, often requiring machinery like compactors for larger projects.
One of the key advantages of retaining walls is their versatility. They can be designed to include features like stepped terraces or integrated vegetation pockets, which not only enhance aesthetics but also promote ecological health. For instance, planting native grasses or shrubs in these pockets can improve soil cohesion and provide habitat for local wildlife. However, it’s essential to consider the wall’s height and the potential for increased water pressure during floods. Walls over 4 feet tall often require professional engineering to ensure they can withstand extreme conditions without failing.
Maintenance is another critical aspect of retaining walls. Regular inspections for cracks, bulges, or signs of erosion around the base can prevent small issues from becoming major problems. Cleaning drainage systems, such as weep holes or gravel backfills, is equally important to avoid water accumulation behind the wall. In regions with freeze-thaw cycles, using materials resistant to cracking and ensuring proper water runoff can extend the wall’s lifespan significantly.
While retaining walls are effective, they are not a one-size-fits-all solution. Costs can vary widely, from $25 to $100 per square foot, depending on materials and complexity. Additionally, environmental regulations may restrict their use in certain areas, particularly in habitats sensitive to alteration. Despite these considerations, when properly designed and maintained, retaining walls remain a robust and reliable method for shoring up riverbanks, protecting both property and ecosystems from the relentless forces of water flow.
Maximize Your Bank Storage in Tera: Essential Tips and Tricks
You may want to see also
Explore related products
Apply Geotextiles: Use fabric mats to protect soil and enhance bank stability against erosion
Geotextiles, often referred to as fabric mats, are a versatile and effective solution for stabilizing river banks and preventing erosion. These materials act as a barrier, filtering water while retaining soil particles, thereby reducing the erosive power of flowing water. Made from synthetic fibers like polyester or polypropylene, geotextiles are designed to withstand harsh environmental conditions, including UV exposure and microbial degradation. Their application is particularly beneficial in areas with high water flow or where traditional methods like concrete walls are impractical or undesirable.
To apply geotextiles effectively, begin by preparing the river bank. Clear the area of debris, vegetation, and loose soil to create a smooth, even surface. Next, unroll the geotextile fabric along the bank, ensuring it extends both horizontally and vertically to cover the entire vulnerable area. Secure the fabric using stakes, pins, or anchors, spacing them approximately 1 to 2 meters apart for optimal stability. For added protection, consider layering the geotextile with natural materials like gravel or soil, which can enhance its erosion-resistant properties.
One of the key advantages of geotextiles is their ability to promote vegetation growth while still providing structural support. By allowing water and nutrients to pass through, these fabrics create an ideal environment for plants to take root. Over time, the root systems of grasses, shrubs, or other vegetation further stabilize the bank, creating a natural, self-sustaining barrier against erosion. This dual functionality makes geotextiles a cost-effective and environmentally friendly option compared to rigid structures.
However, it’s essential to select the appropriate type of geotextile for your specific needs. Non-woven geotextiles are ideal for filtration and drainage, making them suitable for banks with high water flow. Woven geotextiles, on the other hand, offer greater tensile strength and are better suited for stabilizing steep slopes or areas prone to heavy erosion. Consult with a geotechnical expert or supplier to determine the best material and thickness for your project, as these factors can significantly impact performance and longevity.
In conclusion, applying geotextiles is a practical and sustainable method for shoring up river banks. By combining the protective qualities of synthetic fabrics with the natural stabilizing power of vegetation, this approach addresses both immediate and long-term erosion concerns. With proper installation and material selection, geotextiles can transform vulnerable river banks into resilient, ecologically balanced landscapes.
How to Easily Calculate Your Total Bank Payments: A Guide
You may want to see also
Frequently asked questions
Effective methods include riprap (using rocks or concrete), vegetative stabilization (planting native plants), retaining walls, bioengineering techniques (like coir logs or geotextiles), and bank grading to reduce erosion.
Vegetation helps by binding soil with roots, reducing water flow velocity, and preventing soil erosion. Native plants are best as they adapt well to local conditions and provide long-term stability.
Yes, riprap is suitable for both small and large-scale projects. For smaller areas, smaller rocks or interlocking concrete blocks can be used to create a stable barrier against water flow.
Geotextiles act as a barrier and filter, preventing soil erosion while allowing water to pass through. They are often used in combination with vegetation or riprap for added stability.
Regular maintenance includes inspecting for erosion, replanting vegetation as needed, removing debris, and repairing any damage to structures like retaining walls or riprap. Monitoring after heavy rains is crucial.
