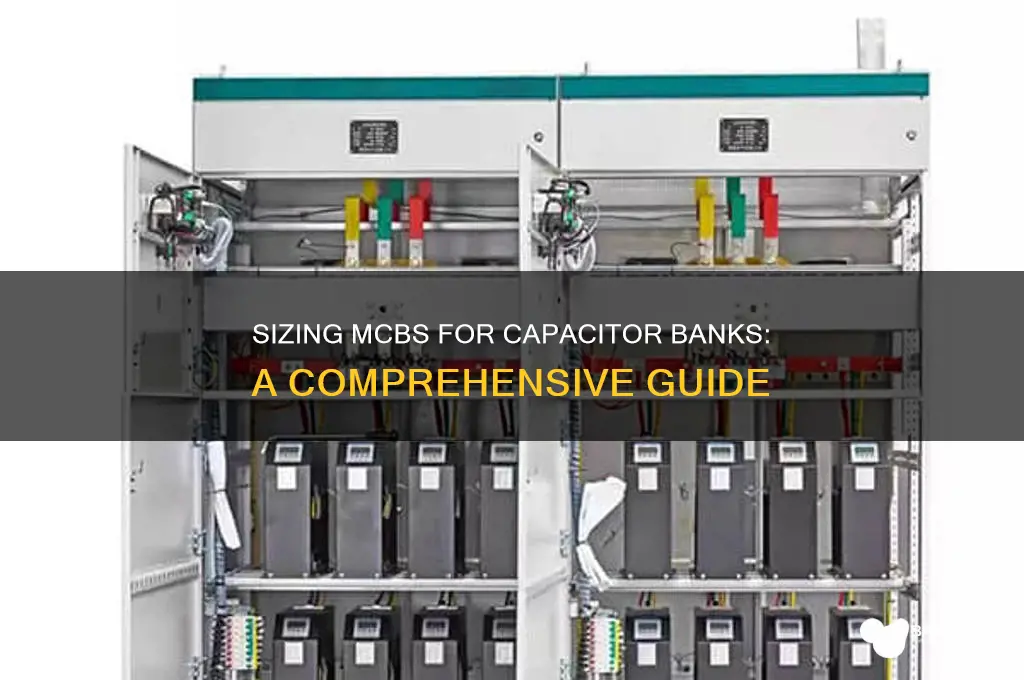

Sizing a Miniature Circuit Breaker (MCB) for a capacitor bank is a critical task that ensures the protection and efficient operation of the electrical system. The MCB must be appropriately rated to handle the inrush currents and steady-state conditions associated with capacitor banks, which can include high initial currents during charging and potential harmonic distortions. Key factors to consider include the total capacitance of the bank, the system voltage, and the expected fault current levels. The MCB should have a continuous current rating that exceeds the steady-state current of the capacitor bank and a breaking capacity sufficient to handle short-circuit currents. Additionally, the MCB’s trip characteristics should align with the system’s protective requirements to prevent nuisance tripping while ensuring safety. Proper sizing not only safeguards the capacitor bank but also enhances the overall reliability and performance of the electrical installation.
Explore related products
What You'll Learn
Calculate Total Capacitor Bank Current
To accurately size a Miniature Circuit Breaker (MCB) for a capacitor bank, the first critical step is calculating the total capacitor bank current. This current is not merely the sum of individual capacitor currents but involves understanding reactive power dynamics and system harmonics. The formula to calculate the total current (I_total) is derived from the reactive power (Q) of the capacitor bank and the voltage (V) of the system: I_total = Q / (√3 × V). For instance, a 100 kVAR capacitor bank operating at 415V would yield I_total = 100,000 / (√3 × 415) ≈ 139A. This calculation assumes a perfectly sinusoidal waveform, but real-world applications require adjustments for harmonic distortion and power factor correction efficiency.
In practice, the calculated current is not the only factor influencing MCB sizing. Capacitor banks introduce inrush currents during energization, typically 10 to 20 times the steady-state current, lasting milliseconds. For example, the 139A steady-state current from the previous example could surge to 1,390A to 2,780A momentarily. MCBs must handle this inrush without tripping, necessitating the selection of a device with a higher interrupting rating and a time-delay characteristic. Ignoring this could lead to frequent nuisance trips, disrupting power factor correction efforts.
Another critical aspect is the impact of harmonics, which distort the current waveform and increase effective current. Harmonics are common in systems with non-linear loads like variable frequency drives or LED lighting. A harmonic study using tools like power quality analyzers can reveal Total Harmonic Distortion (THD) levels, which should not exceed 5% for current as per IEEE 519. If harmonics are present, derating the capacitor bank or installing harmonic filters becomes essential. For instance, a THD of 10% would require derating the MCB by 20% to prevent overheating and premature failure.
Finally, the MCB’s continuous current rating must exceed the calculated total current, including a safety margin of 20-25%. Using the earlier example, an MCB rated for 175A would be appropriate for a 139A steady-state current. However, if inrush or harmonic currents are significant, a higher rating or a specialized device like a motor protection circuit breaker (MPCB) might be necessary. Always consult manufacturer datasheets and adhere to local electrical codes to ensure compliance and reliability.
In summary, calculating total capacitor bank current is a foundational step in MCB sizing, but it’s just the beginning. Inrush currents, harmonics, and safety margins must be factored in to avoid operational issues. By combining theoretical calculations with practical considerations, engineers can ensure the capacitor bank operates efficiently and safely within the electrical system.
