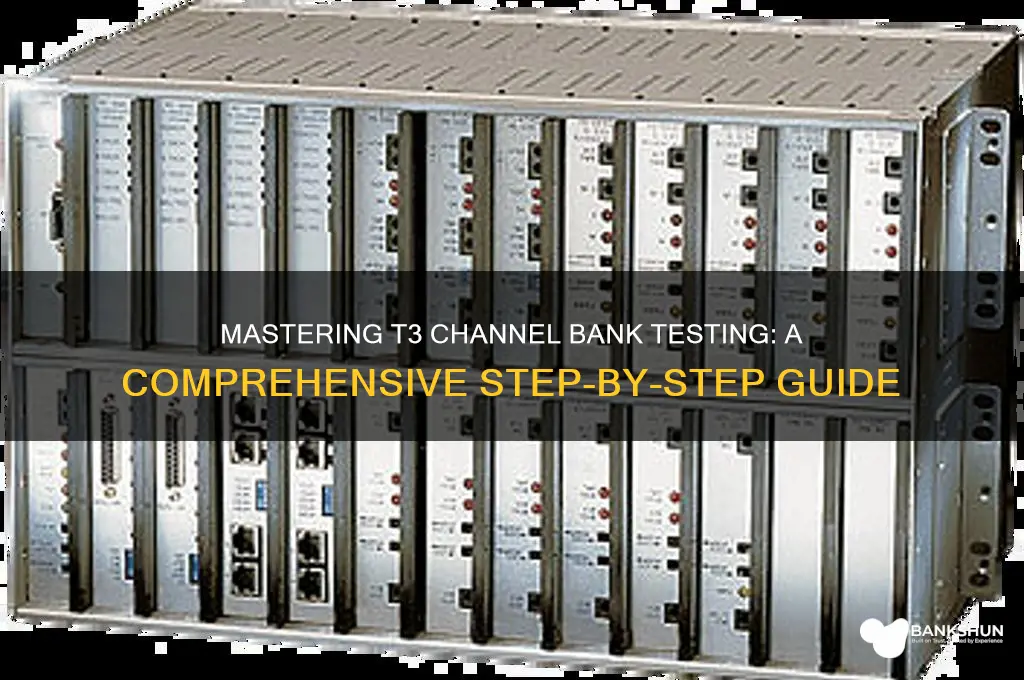

Testing a T3 channel bank involves a systematic approach to ensure its proper functionality and performance. A T3 channel bank is a critical component in telecommunications networks, capable of handling high-speed data transmission over multiple channels. To test it, start by verifying the physical connections, ensuring all cables and interfaces are securely attached. Next, use a protocol analyzer or a specialized testing tool to check for signal integrity, synchronization, and error rates across all channels. Monitor the alarm indicators to identify any faults or anomalies. Additionally, perform a loopback test to confirm end-to-end connectivity and validate the channel bank’s ability to transmit and receive data accurately. Finally, compare the test results against the manufacturer’s specifications to ensure compliance and diagnose any issues. This comprehensive testing process ensures the T3 channel bank operates reliably in a high-capacity network environment.
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, documentation, and ensure the T3 channel bank is powered off and safe to test
- Physical Inspection: Check cables, connectors, and hardware for damage or loose connections before proceeding
- Power-Up Sequence: Follow manufacturer guidelines to power on the unit and verify initial status indicators
- Signal Testing: Use a T3 analyzer to check for proper signal transmission, reception, and error rates
- Diagnostic Checks: Run built-in diagnostics to identify faults, review logs, and confirm operational integrity
Pre-Test Preparation: Gather tools, documentation, and ensure the T3 channel bank is powered off and safe to test
Before testing a T3 channel bank, meticulous preparation is critical to ensure accuracy, safety, and efficiency. Begin by gathering the essential tools: a multimeter, loopback plugs, a T3 bit error rate tester (BERT), and a protocol analyzer. These instruments are indispensable for diagnosing signal integrity, verifying connectivity, and assessing error rates. Equally important is having the channel bank’s documentation at hand, including schematics, user manuals, and maintenance logs. These resources provide critical insights into the device’s specifications, expected performance, and troubleshooting procedures, enabling a targeted and informed testing approach.
Documentation serves as the backbone of pre-test preparation, offering a roadmap for both routine checks and complex diagnostics. Review the manufacturer’s guidelines to understand the channel bank’s operational parameters, such as voltage requirements, signal thresholds, and error tolerance levels. Cross-reference these with historical maintenance logs to identify recurring issues or anomalies. For instance, if previous tests revealed intermittent signal degradation, prioritize verifying line integrity and connector health during the upcoming assessment. This analytical approach ensures that testing is not just procedural but also proactive in addressing known vulnerabilities.
Safety is non-negotiable when working with telecommunications equipment. Before initiating any tests, confirm that the T3 channel bank is completely powered off. Visually inspect power indicators and use a multimeter to verify the absence of voltage at critical points. Failure to do so risks electrical hazards, equipment damage, or inaccurate test results. Additionally, ensure the work area is free of obstructions and that all personnel are aware of the testing schedule to prevent accidental interference. A systematic safety check transforms a potentially hazardous task into a controlled and secure process.
Practical tips can streamline pre-test preparation and enhance its effectiveness. Label cables and ports to avoid confusion during testing, especially in complex setups with multiple connections. Use anti-static wrist straps to protect sensitive components from electrostatic discharge, a common yet often overlooked risk. If the channel bank is mounted in a rack, secure it to prevent accidental dislodging during handling. These small but impactful measures not only save time but also elevate the overall quality of the testing process, ensuring reliability from start to finish.
