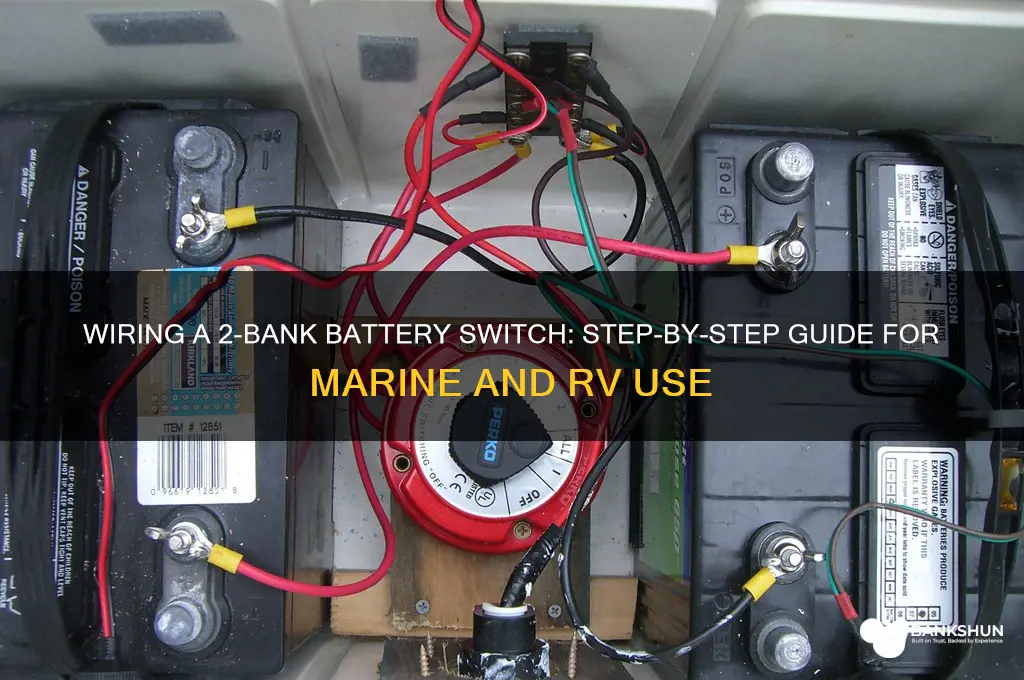

Wiring a 2-bank battery switch is a crucial task for anyone looking to manage multiple batteries in their boat, RV, or off-grid system efficiently. This setup allows you to isolate, combine, or disconnect batteries as needed, ensuring optimal power distribution and extending battery life. The process involves connecting the battery switch to two separate battery banks, typically using heavy-duty marine-grade cables, and configuring the switch to control power flow between them. Proper installation requires careful planning, adherence to safety guidelines, and an understanding of electrical principles to prevent short circuits or damage to the system. Whether for backup power, dual-battery setups, or emergency use, mastering this wiring technique is essential for reliable and safe energy management.
| Characteristics | Values |
|---|---|
| Purpose | To connect and manage two battery banks, allowing for isolation, parallel operation, or both |
| Switch Types | 1. Manual Battery Switch (e.g., Blue Sea Systems, Guest) 2. Automatic Charging Relay (ACR) 3. Battery Combiner/Separator |
| Wiring Configuration | 1. Series: Connect batteries in series for higher voltage (rare in most applications) 2. Parallel: Connect batteries in parallel for increased capacity (most common) |
| Required Components | 1. 2-Bank Battery Switch 2. Batteries (same voltage and type) 3. Marine-grade battery cables 4. Terminal rings/connectors 5. Fuses (recommended for safety) |
| Wiring Steps | 1. Disconnect all power sources. 2. Connect battery 1 to switch terminal 1. 3. Connect battery 2 to switch terminal 2. 4. Connect load/alternator to common terminal. 5. Secure all connections with proper torque. |
| Switch Positions | 1. Off: Isolates both batteries. 2. Battery 1: Only battery 1 is active. 3. Battery 2: Only battery 2 is active. 4. Both: Batteries are connected in parallel. |
| Safety Considerations | 1. Use proper gauge wiring for current draw. 2. Install fuses near batteries for short-circuit protection. 3. Ensure switch is rated for system voltage and amperage. |
| Applications | Marine, RV, off-grid solar, emergency backup systems |
| Advantages | 1. Redundancy (backup power source). 2. Ability to isolate batteries for charging/maintenance. 3. Extended runtime when batteries are combined. |
| Disadvantages | 1. Requires proper wiring to avoid voltage drop. 2. Potential for unequal charging if batteries are not matched. |
| Maintenance | Regularly inspect connections for corrosion and tightness. Test switch functionality periodically. |
Explore related products
What You'll Learn
- Identify Battery Types: Determine battery types (lead-acid, lithium) and their compatibility with the switch
- Gather Tools & Materials: Collect wire cutters, crimpers, marine-grade wire, heat shrink, and the switch
- Connect Batteries to Switch: Attach positive and negative terminals of both batteries to the switch
- Ground the System: Securely ground the switch and batteries to the boat or vehicle chassis
- Test & Verify: Check connections for tightness, test switch positions, and verify proper battery operation
Identify Battery Types: Determine battery types (lead-acid, lithium) and their compatibility with the switch
Before wiring a 2-bank battery switch, understanding the battery types involved is critical. Lead-acid batteries, the traditional choice for marine and automotive applications, operate at 12V and require regular maintenance to prevent sulfation. Lithium batteries, on the other hand, offer higher energy density, faster charging, and longer lifespans but typically run at 12.8V or 13.2V. The voltage difference and charging profiles of these batteries mean not all switches are compatible with both types. Always check the switch’s specifications to ensure it supports the battery chemistry you’re using.
Compatibility isn’t just about voltage; it’s also about current handling and safety features. Lead-acid batteries can handle higher surge currents, making them suitable for heavy-duty applications like starting engines. Lithium batteries, while efficient, require switches with built-in protection against over-discharge and over-current, as they are more sensitive to misuse. For instance, a switch rated for 200A continuous current may work for both, but lithium setups often need additional BMS (Battery Management System) integration. Ignoring these details can lead to inefficiency, damage, or even safety hazards.
When selecting a switch, consider the battery’s charging profile. Lead-acid batteries follow a bulk-absorb-float charging pattern, while lithium batteries require a constant-current/constant-voltage (CC/CV) profile. Some switches come with built-in chargers or compatibility with external chargers, but not all support both profiles. For dual-battery systems mixing lead-acid and lithium, a switch with isolated outputs and separate charging controls is essential to prevent cross-charging, which can damage the batteries or reduce their lifespan.
Practical tip: If you’re unsure about compatibility, consult the battery and switch manufacturers’ datasheets. Look for terms like “lithium-ready” or “lead-acid compatible” in the switch’s documentation. For DIY setups, consider using a voltage-sensitive relay (VSR) instead of a manual switch, especially if combining battery types. VSRs automatically manage charging and isolation based on voltage levels, reducing the risk of user error. Always prioritize safety by ensuring the switch’s amperage rating exceeds the combined load of your system to avoid overheating or failure.
