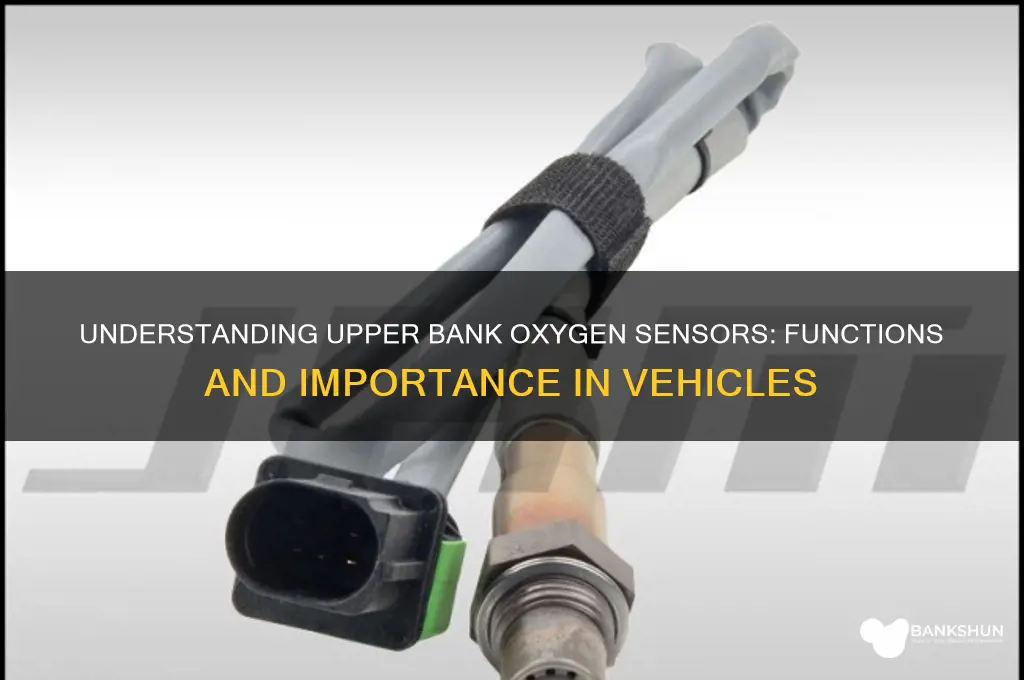

The upper bank oxygen sensor, also known as the upstream or primary O2 sensor, is a critical component in modern vehicle emissions systems, typically located in the exhaust manifold or close to the engine's exhaust ports. Its primary function is to monitor the oxygen levels in the exhaust gases before they reach the catalytic converter, providing real-time data to the engine control unit (ECU) to optimize the air-fuel mixture for efficient combustion. This sensor plays a vital role in reducing harmful emissions, improving fuel efficiency, and ensuring the vehicle complies with environmental regulations. By detecting whether the engine is running rich (excess fuel) or lean (excess air), the upper bank oxygen sensor enables the ECU to make precise adjustments, maintaining optimal performance and minimizing environmental impact.
Explore related products
What You'll Learn
- Location and Placement: Where the upper bank oxygen sensor is typically installed in a vehicle
- Function and Purpose: Role in monitoring exhaust gas for optimal engine performance
- Common Symptoms of Failure: Signs indicating the sensor may be malfunctioning or faulty
- Testing and Diagnosis: Methods to check if the upper bank oxygen sensor is working correctly
- Replacement and Maintenance: Steps and tips for replacing or maintaining the sensor effectively
Location and Placement: Where the upper bank oxygen sensor is typically installed in a vehicle
The upper bank oxygen sensor, a critical component in modern vehicle emissions systems, is strategically positioned to monitor the oxygen levels in the exhaust stream of engines with a V-configuration. Its location is not arbitrary; it is meticulously chosen to ensure accurate readings that directly influence fuel injection and engine performance. Typically, this sensor is installed in the exhaust manifold or the exhaust pipe, specifically on the upper bank of the engine, which corresponds to the side with cylinders 1, 3, 5, and so on, in a V6 or V8 engine. This placement allows the sensor to detect oxygen levels immediately after combustion, providing real-time data to the engine control unit (ECU) for precise fuel adjustments.
Analyzing the installation process reveals that the upper bank oxygen sensor is often placed before the catalytic converter. This pre-catalyst position is crucial because it measures the raw exhaust gases, enabling the ECU to make immediate corrections to the air-fuel mixture. For instance, in a V8 engine, the sensor is usually threaded into the exhaust manifold near cylinder 4 or 5, depending on the manufacturer’s design. Technicians must ensure the sensor is tightened to the manufacturer’s torque specifications, typically ranging from 20 to 30 foot-pounds, to prevent leaks or damage. Proper placement and secure installation are essential to avoid inaccurate readings that could lead to poor fuel efficiency or increased emissions.
From a comparative perspective, the upper bank oxygen sensor’s location contrasts with that of the lower bank sensor, which monitors the opposite cylinder bank. Together, these sensors provide a comprehensive view of the engine’s combustion efficiency. However, the upper bank sensor’s data is often prioritized in certain driving conditions, such as high-load scenarios, due to its position on the more active cylinder bank in some engine designs. For example, in a rear-wheel-drive vehicle with a longitudinally mounted V8, the upper bank sensor may be more influential during acceleration because it corresponds to the cylinders firing first in the sequence.
Practical tips for locating and replacing the upper bank oxygen sensor include consulting the vehicle’s service manual for exact placement, as designs vary across makes and models. For DIY enthusiasts, accessing the sensor may require removing components like heat shields or air intake tubing, depending on the vehicle’s layout. Always disconnect the battery before working on the sensor to prevent accidental airbag deployment or electrical shorts. After installation, clear any diagnostic trouble codes (DTCs) using an OBD-II scanner to ensure the new sensor is properly recognized by the ECU.
In conclusion, the upper bank oxygen sensor’s location is a deliberate choice to optimize engine performance and emissions control. Its placement in the exhaust manifold or pipe on the upper cylinder bank ensures it captures critical data for the ECU. Understanding this location not only aids in diagnostics but also empowers vehicle owners and technicians to perform maintenance efficiently, ensuring the sensor functions as intended. Whether for repair or routine inspection, knowing where to find this sensor is a fundamental aspect of modern automotive care.
