Understanding Duct Banks: Visual Guide To Their Structure And Design

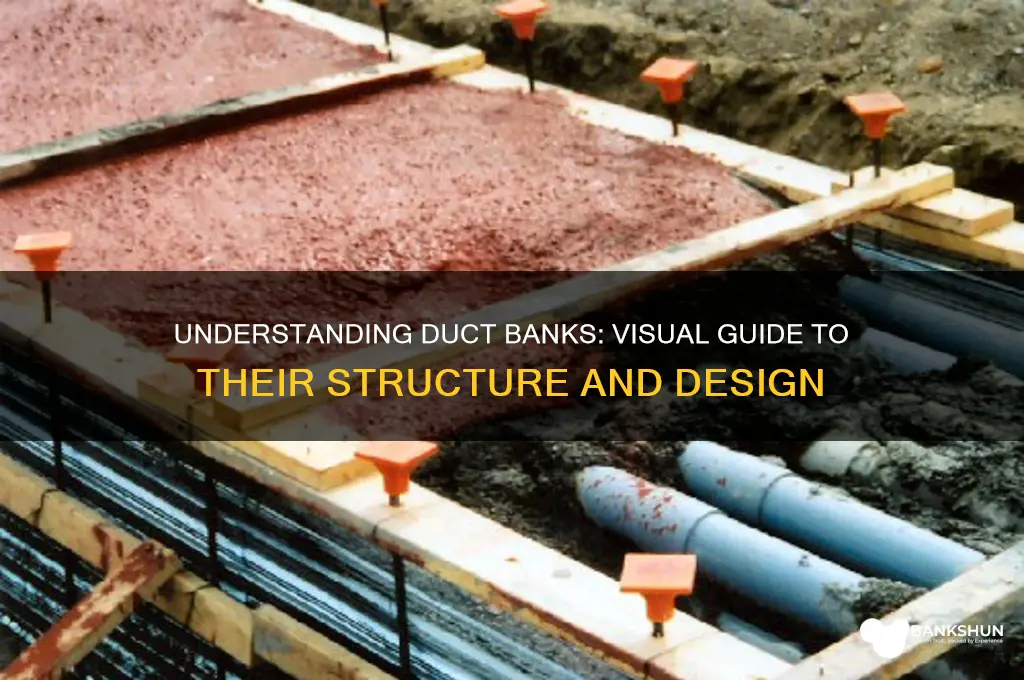

what does a duct bank look like

A duct bank is an underground installation used to house and protect multiple conduits or ducts that carry electrical cables, telecommunications lines, or other utilities. Typically constructed in trenches, duct banks are made from durable materials like PVC, concrete, or fiberglass, which are designed to withstand environmental factors such as soil pressure, moisture, and temperature fluctuations. The ducts are often laid side by side or stacked in layers, encased in gravel or sand for added stability and drainage. Above the ducts, a layer of warning tape or mesh is usually placed to prevent accidental damage during future excavations. Duct banks are commonly found in urban areas, industrial sites, or along highways, providing a safe and organized pathway for essential utility services while remaining hidden from view.

Characteristics Values
Structure Typically a trench or underground conduit system
Material Concrete, PVC, HDPE, or fiberglass
Shape Rectangular or circular cross-section
Size Varies; common diameters range from 4 to 24 inches (100 to 600 mm)
Depth Usually buried 3 to 6 feet (0.9 to 1.8 meters) below ground level
Contents Houses electrical cables, telecommunication lines, or other utilities
Cover Often protected by a layer of sand, gravel, or concrete encasement
Access Points Manholes or handholes for maintenance and inspection
Markings Surface markers or warning tapes to indicate location
Environment Designed to withstand soil conditions, moisture, and temperature variations
Capacity Can accommodate multiple ducts or cables within a single bank
Installation Requires excavation, placement of ducts, and backfilling
Purpose Provides organized, protected routing for utilities, reducing damage and maintenance costs
Regulations Must comply with local building codes and safety standards

bankshun

Duct bank layout and design

A duct bank is essentially a group of conduits or ducts buried underground, typically encased in concrete or other protective materials, to house and protect electrical cables, telecommunications lines, or other utilities. When designing a duct bank layout, the primary goal is to ensure efficient use of space while maintaining accessibility for future maintenance or upgrades. The layout must consider factors such as soil type, depth requirements, and the number of ducts needed to accommodate current and future services. For instance, a common practice is to space ducts evenly, allowing for a minimum of 2 inches between each duct to prevent overheating and facilitate cable pulling. This spacing also ensures that each duct can be easily identified and accessed without disturbing adjacent ones.

Instructively, the design process begins with a thorough site assessment. Engineers must evaluate the soil’s load-bearing capacity, groundwater levels, and potential environmental hazards. For example, in areas with high water tables, ducts may need to be placed at shallower depths and encased in waterproof materials to prevent water infiltration. The layout should also account for the bending radius of cables, as sharp turns can damage the cables during installation. A typical duct bank might be designed with a minimum bend radius of 10 times the duct’s outer diameter, ensuring cables can be pulled through without excessive stress. Additionally, manholes or handholes should be strategically placed every 500 to 1,000 feet to provide access points for inspection and maintenance.

From a comparative perspective, duct bank designs vary significantly between urban and rural settings. In urban areas, where space is at a premium, duct banks are often installed in narrow trenches along sidewalks or roadsides, sometimes stacked vertically to maximize space. In contrast, rural installations may allow for wider, horizontally spaced duct banks, as land availability is less constrained. Urban designs also frequently incorporate more robust protective measures, such as thicker concrete encasements or steel reinforcement, to withstand heavy traffic and construction activities. Rural duct banks, while less exposed to mechanical stress, may require additional measures to protect against agricultural machinery or wildlife.

Persuasively, investing in a well-designed duct bank layout pays dividends in the long term. Proper spacing, depth, and protective measures reduce the risk of cable damage, which can lead to costly repairs and service disruptions. For example, a duct bank that accounts for thermal expansion and contraction of cables can prevent insulation damage and extend the lifespan of the utilities it houses. Similarly, incorporating future expansion capabilities, such as leaving extra space for additional ducts, ensures that the infrastructure remains relevant as demand grows. While the initial cost of a thoughtfully designed duct bank may be higher, the savings in maintenance and upgrades over time make it a wise investment.

Descriptively, a well-executed duct bank layout is a marvel of organization and foresight. Imagine a series of parallel trenches, each carefully backfilled with sand or gravel to provide a stable base for the ducts. The ducts themselves, often made of PVC or HDPE, are laid out in precise rows, their smooth surfaces gleaming under the sunlight before being covered. Above them, concrete encasements or steel plates provide a protective barrier, marked with clear identifiers indicating the type of utilities they contain. Access points, such as manholes, are strategically positioned, their covers flush with the ground yet easily removable for maintenance. This meticulous arrangement ensures that the duct bank remains a reliable backbone for essential services, often unseen but always indispensable.

bankshun

Materials used in duct banks

Duct banks, the underground conduits housing electrical or communication cables, rely on durable materials to withstand environmental stresses and protect sensitive wiring. The primary material choice is high-density polyethylene (HDPE), favored for its corrosion resistance, flexibility, and ease of installation. HDPE conduits are lightweight yet robust, capable of withstanding soil movement and extreme temperatures without cracking. For instance, HDPE pipes with a wall thickness of 0.25 inches are commonly used for medium-voltage power cables, balancing cost and durability.

In contrast, PVC (polyvinyl chloride) is another popular option, particularly for low-voltage applications. PVC conduits are rigid, cost-effective, and resistant to chemicals, making them suitable for urban or industrial duct banks. However, PVC becomes brittle in freezing temperatures, limiting its use in colder climates. To mitigate this, PVC conduits are often paired with insulation or buried below the frost line. For example, Schedule 40 PVC is a standard choice for communication cables, offering adequate protection without excessive material costs.

For high-voltage or critical infrastructure, fiberglass reinforced polyester (FRP) conduits are increasingly preferred. FRP combines the strength of fiberglass with the corrosion resistance of polyester, making it ideal for harsh environments like coastal areas or chemical plants. While more expensive than HDPE or PVC, FRP’s longevity and low maintenance justify the investment. A practical tip: FRP conduits should be installed with smooth inner surfaces to minimize cable friction during pulling, ensuring easier maintenance and upgrades.

Lastly, steel conduits remain a staple in heavy-duty applications, such as industrial duct banks or areas prone to mechanical damage. Galvanized steel offers superior strength and impact resistance but requires careful planning to prevent corrosion over time. To combat this, steel conduits are often coated with epoxy or bituminous compounds, extending their lifespan by decades. For instance, a 4-inch galvanized steel conduit with an epoxy lining can safely house high-voltage cables for 50+ years, even in humid or saline environments.

Selecting the right material depends on factors like voltage, soil conditions, and budget. HDPE and PVC are versatile and cost-effective, while FRP and steel excel in demanding scenarios. By understanding these material properties, engineers can design duct banks that ensure long-term reliability and safety.

bankshun

Typical duct bank depth and width

Duct banks, the underground conduits housing electrical or communication cables, are engineered with precision to ensure longevity and functionality. A critical aspect of their design lies in the typical depth and width, which must balance protection from external forces with accessibility for maintenance. Standard practice dictates a minimum depth of 24 to 36 inches (610 to 914 mm) from the top of the duct to the ground surface. This depth safeguards the cables from potential damage caused by surface activities like digging or construction, while also providing a buffer against environmental factors such as frost heave or soil erosion. Width, on the other hand, is determined by the number and size of ducts, with a common configuration allowing for 2 to 4 inches (50 to 100 mm) of spacing between ducts to facilitate proper backfill and compaction.

Consider the analytical perspective: the depth and width of a duct bank are not arbitrary but are governed by local building codes, soil conditions, and the type of cables being installed. For instance, high-voltage electrical cables may require deeper burial to mitigate electromagnetic interference, while fiber optic cables might necessitate a shallower depth for easier access. Soil type plays a pivotal role; sandy soils may require deeper burial to prevent shifting, whereas clay soils might allow for shallower placement due to their stability. Engineers often conduct soil tests and consult regional standards to determine the optimal dimensions, ensuring the duct bank’s integrity over decades.

From an instructive standpoint, achieving the correct depth and width involves meticulous planning and execution. Begin by marking the trench layout, ensuring it aligns with the project’s design specifications. Excavate the trench to the prescribed depth, accounting for the duct’s diameter and the required backfill material. Place the ducts in a parallel or stacked configuration, maintaining uniform spacing to prevent overcrowding. Backfill the trench with approved materials, such as sand or gravel, compacting it in layers to eliminate voids that could compromise stability. Finally, install warning tapes or markers above the duct bank to deter accidental damage during future excavations.

A persuasive argument for adhering to typical depth and width standards lies in the long-term cost savings and safety benefits. Shallow or improperly spaced duct banks are prone to damage from external forces, leading to costly repairs and service disruptions. For example, a duct bank buried too close to the surface may be inadvertently struck by landscaping equipment, severing critical communication lines. Conversely, a well-designed duct bank, with adequate depth and width, minimizes such risks, ensuring uninterrupted service and reducing maintenance expenses. Investing in proper installation upfront pays dividends in reliability and peace of mind.

Descriptively, a typical duct bank at the correct depth and width is a marvel of understated engineering. Imagine a trench, precisely excavated to a depth of 30 inches, its walls straight and clean. Within it, multiple ducts lie side by side, their dark surfaces contrasting with the light-colored backfill material. Above, the ground is restored to its natural state, with no visible trace of the infrastructure beneath. This hidden network, though unseen, is a testament to the careful planning and execution that ensures the seamless flow of power and data in our modern world.

bankshun

Duct bank installation process

A duct bank is essentially a group of conduits or ducts buried underground, designed to protect and organize electrical cables or other utilities. These installations are crucial for infrastructure projects, ensuring cables are shielded from environmental damage and human interference. The installation process is meticulous, requiring careful planning and execution to meet safety standards and functional requirements.

Planning and Preparation: Before any digging begins, a thorough site assessment is essential. This includes evaluating soil conditions, determining the depth and layout of the duct bank, and identifying any potential obstacles like existing utilities or tree roots. Engineers often use blueprints and CAD drawings to map out the route, ensuring it aligns with project specifications. Permits and approvals from local authorities are typically required, as this work can impact public spaces and infrastructure.

Excavation and Trenching: Once the plan is approved, excavation starts. The trench must be dug to the specified depth and width, allowing enough space for the ducts and backfill material. Safety is paramount here; trenches deeper than 5 feet (1.5 meters) often require shoring to prevent collapses. The soil type dictates the slope and support needed for the trench walls. For instance, sandy soil may need a steeper slope compared to clay.

Duct Placement and Assembly: Ducts, typically made of PVC, HDPE, or concrete, are laid into the trench. These ducts are often pre-assembled in sections, with couplings and fittings connecting them. The arrangement must follow the design, ensuring proper spacing and alignment. Pull boxes or manholes are installed at intervals to allow access for cable pulling and maintenance. It’s critical to maintain a minimum bend radius for the ducts to prevent damage to cables during installation.

Backfilling and Compaction: After the ducts are in place, the trench is backfilled with approved material, usually sand or gravel, to provide a stable base. Compaction is done in layers to avoid settling, which could damage the ducts. The backfill material should be free of sharp objects that could puncture the ducts. Once filled, the area is often topped with topsoil and restored to its original condition, whether that’s grass, pavement, or another surface.

Testing and Inspection: Before the installation is considered complete, thorough testing and inspection are conducted. This includes verifying the alignment and integrity of the ducts, ensuring no obstructions exist, and confirming that the installation meets code requirements. A vacuum test or air pressure test may be performed to check for leaks or blockages. Only after passing these inspections is the duct bank ready for cable installation.

Each step in the duct bank installation process demands precision and adherence to standards, ensuring the system’s longevity and reliability. Skipping or rushing any phase can lead to costly repairs or failures down the line, underscoring the importance of meticulous execution.

bankshun

Common duct bank configurations and shapes

Duct banks, the underground conduits housing electrical or utility cables, come in various configurations and shapes, each tailored to specific needs and site conditions. One of the most common shapes is the rectangular duct bank, typically constructed using precast concrete or PVC ducts. This configuration is favored for its simplicity and cost-effectiveness, especially in urban areas where space is limited. Rectangular banks are often laid in trenches with multiple ducts stacked vertically or placed side by side, allowing for efficient cable management and future expansion. For instance, a standard rectangular duct bank might measure 12 inches in width and 18 inches in height, accommodating up to four 4-inch ducts in a single layer.

In contrast, circular duct banks offer a unique advantage in areas prone to soil shifting or seismic activity. Their shape distributes stress more evenly, reducing the risk of damage during ground movement. These banks are often constructed using high-density polyethylene (HDPE) pipes, which are flexible yet durable. A typical circular duct bank might consist of 6-inch diameter pipes, bundled together in groups of three or four, and encased in a gravel bed for added stability. This configuration is particularly useful for long-distance cable runs, such as those found in rural or suburban settings.

Another notable configuration is the modular duct bank, designed for flexibility and ease of installation. These systems use prefabricated units that can be assembled on-site, reducing labor time and minimizing disruption. Modular banks often feature interlocking components, allowing for quick adjustments to accommodate changes in cable routing or capacity. For example, a modular system might include 24-inch by 24-inch sections, each capable of holding up to six 3-inch ducts. This approach is ideal for projects with tight deadlines or complex layouts, such as industrial sites or large-scale infrastructure developments.

For specialized applications, custom-shaped duct banks are employed to meet unique requirements. These might include curved or angled configurations to navigate obstacles like existing utilities or natural features. For instance, a duct bank installed beneath a river crossing might be designed with a gradual curve to follow the contour of the riverbed, ensuring structural integrity and minimizing environmental impact. Custom shapes often require detailed engineering and may involve materials like fiberglass or steel for added strength and corrosion resistance.

In selecting a duct bank configuration, factors such as soil type, load-bearing capacity, and future maintenance needs must be considered. For example, in sandy soils, rectangular banks with reinforced concrete may be preferred for their stability, while in clay soils, circular HDPE banks might be chosen for their flexibility. Additionally, incorporating access points at regular intervals—every 50 to 100 feet—can simplify inspections and repairs, ensuring the longevity of the system. By understanding these common configurations and their applications, engineers and contractors can design duct banks that are both functional and durable.

Frequently asked questions

A duct bank is a group of conduits or ducts installed together underground, usually encased in concrete or buried in trenches. It appears as a linear arrangement of pipes or tubes, often bundled or spaced evenly, used to house and protect electrical or communication cables.

Duct banks are typically buried underground and not visible above ground. However, access points like manholes, handholes, or markers may indicate their presence.
