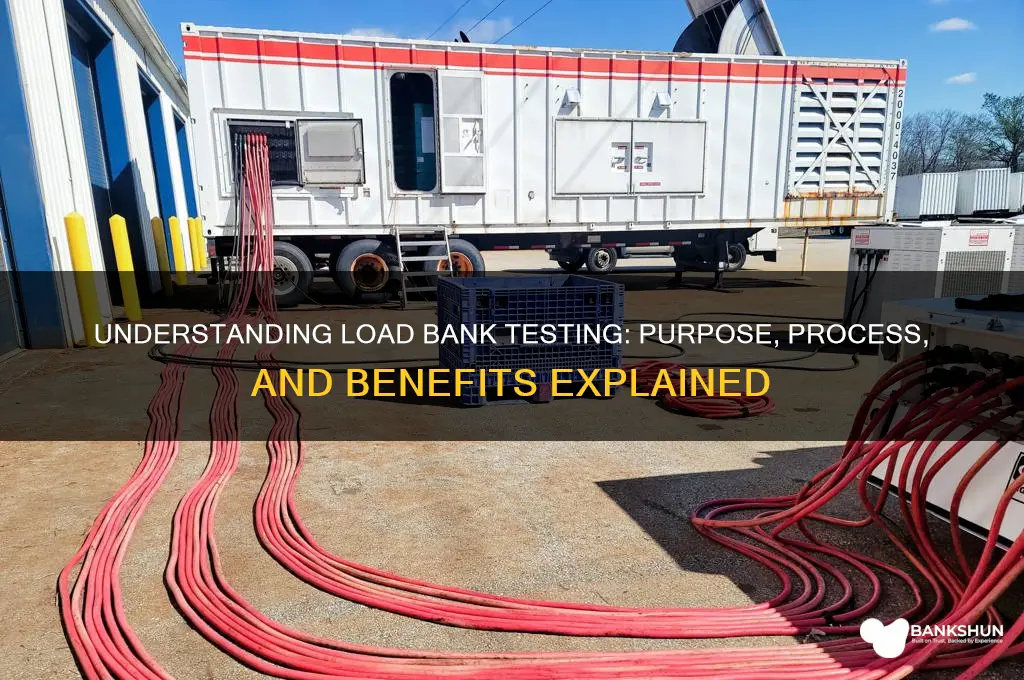

A load bank test is a critical procedure used to evaluate the performance, reliability, and capacity of power generation systems, such as generators, uninterruptible power supplies (UPS), and batteries. By simulating real-world electrical loads, the test ensures that these systems can handle their rated capacity, maintain stable output, and operate efficiently under stress. It helps identify potential issues like overheating, voltage fluctuations, or inadequate power delivery before they cause failures in actual use. Load bank testing is essential for preventive maintenance, compliance with industry standards, and ensuring uninterrupted power supply in critical applications like data centers, hospitals, and industrial facilities.
| Characteristics | Values |
|---|---|
| Purpose | Tests and verifies the performance, reliability, and capacity of power generation systems (e.g., generators, UPS, batteries). |
| Method | Applies a controlled electrical load to the system to simulate real-world operating conditions. |
| Load Types | Resistive, Reactive, or Combinations (depending on the system being tested). |
| Key Parameters Measured | Voltage, Current, Frequency, Power Factor, Temperature, and Runtime. |
| Applications | Generator testing, UPS system validation, Battery discharge testing, and Power plant commissioning. |
| Load Range | From a few kW to several MW, depending on the load bank capacity. |
| Testing Modes | Steady-state, Step-load, or Dynamic (variable load) testing. |
| Safety Features | Overload protection, Over-temperature protection, and Emergency shutdown. |
| Portability | Available in portable, trailer-mounted, or fixed installations. |
| Compliance Standards | ISO 8528, IEEE standards, and other industry-specific regulations. |
| Data Logging | Records test data for analysis, reporting, and compliance documentation. |
| Environmental Impact | Ensures systems operate efficiently, reducing fuel consumption and emissions. |
| Maintenance Benefit | Identifies potential issues before failure, reducing downtime and repair costs. |
| Frequency of Testing | Periodic (e.g., monthly, quarterly, or annually) based on system usage and regulations. |
| Cost | Varies based on load bank size, features, and testing requirements. |
Explore related products
What You'll Learn
- Load Bank Basics: Simulates real electrical loads to test power systems under controlled conditions
- Testing Generators: Ensures generators can handle rated loads and verifies performance reliability
- Battery Capacity Check: Measures battery health by discharging under load to assess runtime
- UPS System Validation: Confirms uninterruptible power supply (UPS) functionality during power outages
- Preventive Maintenance: Identifies issues early, reduces downtime, and extends equipment lifespan through regular testing
Load Bank Basics: Simulates real electrical loads to test power systems under controlled conditions
A load bank test is a critical procedure for ensuring the reliability and performance of power systems, particularly in mission-critical applications like data centers, hospitals, and industrial facilities. At its core, a load bank simulates real electrical loads, allowing engineers to test power systems under controlled conditions. This process mimics the actual demands that equipment, such as generators or uninterruptible power supplies (UPS), would face during operation. By applying a known and adjustable load, technicians can verify whether the system can handle its rated capacity without failure, ensuring it’s ready for real-world scenarios.
Consider a hospital’s backup generator, which must operate flawlessly during a power outage. A load bank test applies a controlled electrical load, say 75% of the generator’s rated capacity, to assess its performance. This simulation reveals issues like overheating, voltage instability, or fuel inefficiency before they become critical failures. For instance, a 1-megawatt generator might be tested at 500 kW, 750 kW, and 1 MW incrementally to ensure it meets specifications at each level. This step-by-step approach allows for precise troubleshooting and validation.
The process isn’t limited to generators; it’s equally vital for testing UPS systems, batteries, and even renewable energy setups. For a UPS system, a load bank might apply a 100% load for 30 minutes to ensure the batteries can sustain the required runtime. In solar or wind power installations, load banks verify the system’s ability to handle peak loads and maintain stability under varying conditions. The key is creating a realistic stress test without the risks associated with actual operational demands.
Practical tips for conducting a load bank test include ensuring proper ventilation to prevent overheating, using calibrated equipment for accurate measurements, and gradually increasing the load to avoid sudden system stress. For example, start at 25% of the system’s capacity and increment in 25% steps, monitoring temperature, voltage, and frequency at each stage. Always follow manufacturer guidelines and safety protocols, such as wearing insulated gloves and ensuring the load bank is grounded.
In summary, load bank testing is a proactive measure to validate power system performance under controlled, real-world conditions. By simulating electrical loads, it identifies weaknesses before they cause downtime or damage. Whether for a hospital generator, data center UPS, or renewable energy system, this method ensures reliability and safety, making it an indispensable tool in power system maintenance.
Strengthening Bank-Business Partnerships: Strategies for Mutual Growth and Success
You may want to see also
Explore related products
Testing Generators: Ensures generators can handle rated loads and verifies performance reliability
Generators are the backbone of emergency power systems, but their reliability is only as good as their ability to perform under pressure. A load bank test is the ultimate stress test, pushing generators to their limits to ensure they can handle their rated loads without faltering. This isn’t just about flipping a switch and hoping for the best—it’s a systematic process that simulates real-world demands, from powering a small office to sustaining a critical hospital wing. By applying a controlled electrical load, the test verifies whether the generator can maintain voltage, frequency, and stability under maximum capacity, exposing weaknesses before they become failures.
Consider the steps involved in conducting a load bank test. First, connect the load bank to the generator, ensuring all safety protocols are in place. Gradually increase the load in stages, typically starting at 25%, then 50%, 75%, and finally 100% of the generator’s rated capacity. Monitor key parameters such as voltage, frequency, exhaust temperature, and fuel consumption throughout the test. For instance, a 500 kW generator should be able to sustain 500 kW without voltage drops below 5% or frequency deviations exceeding 1 Hz. If the generator struggles at any stage, it’s a red flag that requires immediate attention, whether it’s a fuel system issue, overheating, or electrical inefficiency.
The comparative value of a load bank test becomes clear when contrasted with simple no-load or partial-load testing. Running a generator without a load or at minimal capacity might make it *seem* functional, but it doesn’t reveal how it performs under stress. For example, a generator that runs smoothly at 20% load might overheat or stall at 80%, leaving you vulnerable during peak demand. Load bank testing eliminates this uncertainty, providing a definitive answer to the question: Can this generator handle its rated load reliably?
Practical tips can enhance the effectiveness of load bank testing. Always ensure the generator is well-maintained before testing—clean fuel filters, check oil levels, and inspect belts and hoses. Use a load bank with variable load settings to simulate real-world conditions accurately. For larger generators, consider testing in phases to avoid overloading the system. Finally, document all test results for future reference, as trends over time can indicate wear and tear or the need for upgrades. By treating load bank testing as a routine part of generator maintenance, you’re not just verifying performance—you’re safeguarding against failure when it matters most.
Mastering Bank Data Entry: Efficient Steps for Accuracy and Speed
You may want to see also
Explore related products
Battery Capacity Check: Measures battery health by discharging under load to assess runtime
A battery capacity check is a critical component of a load bank test, designed to evaluate the health and performance of batteries by simulating real-world discharge conditions. Unlike static voltage readings, this test dynamically assesses how long a battery can sustain a load, providing a clear picture of its runtime capability. For instance, in a data center, a battery bank might be rated for 4 hours of backup power, but a capacity check could reveal it only delivers 3 hours under actual load, highlighting a potential failure point before it becomes critical.
To perform a battery capacity check, the load bank is connected to the battery system and set to draw a controlled amount of current, typically equivalent to the expected load during operation. For a 100Ah battery, this might involve discharging at a rate of 10A (C/10) for 10 hours, or 20A (C/5) for 5 hours, depending on the manufacturer’s specifications. The test continues until the battery reaches its end-of-discharge voltage, usually around 1.75V per cell for lead-acid batteries or 2.5V per cell for lithium-ion. The runtime is then compared against the expected capacity to determine the battery’s health.
One key advantage of this method is its ability to detect issues like internal resistance buildup, cell imbalance, or capacity fade, which are invisible to voltage or impedance tests alone. For example, a battery might show a full charge but fail to deliver power under load due to degraded cells. By discharging under load, the test mimics the stress batteries experience during actual use, making it a more reliable indicator of performance. This is particularly vital in applications like hospitals or telecommunications, where uninterrupted power is non-negotiable.
However, conducting a battery capacity check requires careful planning to avoid damage. Overdischarging can permanently harm batteries, so it’s essential to monitor voltage and temperature throughout the test. For lithium-ion batteries, maintaining a temperature below 45°C is critical, while lead-acid batteries should not exceed 50°C. Additionally, ensure the load bank is rated for the battery’s voltage and current to prevent equipment failure. Regular testing—annually for critical systems, bi-annually for less critical ones—can extend battery life and prevent unexpected outages.
In conclusion, a battery capacity check is an indispensable tool for assessing battery health by discharging under load to measure runtime. It provides actionable insights into a battery’s ability to perform under stress, far beyond what static tests can reveal. By incorporating this test into routine maintenance, organizations can ensure their backup power systems are reliable, avoid costly downtime, and maximize the lifespan of their battery investments.
Is Central Banking Becoming Obsolete? Exploring the Future of Finance
You may want to see also
Explore related products
UPS System Validation: Confirms uninterruptible power supply (UPS) functionality during power outages
A load bank test is a critical procedure used to validate the performance and reliability of power systems, particularly uninterruptible power supply (UPS) units. When it comes to UPS System Validation, the primary goal is to ensure that the UPS can seamlessly provide backup power during outages, safeguarding critical operations in data centers, hospitals, and manufacturing facilities. This validation process involves subjecting the UPS to a simulated load, mimicking real-world conditions to confirm its functionality, capacity, and runtime accuracy.
Steps to Perform UPS System Validation with a Load Bank Test:
- Connect the Load Bank: Attach the load bank to the UPS output, ensuring it matches the system’s rated capacity (e.g., 50% to 100% of the UPS’s kVA rating).
- Simulate a Power Outage: Manually transfer the UPS to battery mode or trigger a controlled power interruption.
- Monitor Performance: Observe key metrics such as voltage stability, frequency, and runtime. For instance, a 100 kVA UPS should maintain output within ±3% of the nominal voltage during the test.
- Record Results: Document deviations, battery discharge rates, and any anomalies. A well-functioning UPS should sustain the load for its specified runtime (e.g., 10–30 minutes for standard systems or up to 1 hour for extended runtime models).
Cautions During Testing:
Avoid overloading the UPS beyond its capacity, as this can cause damage or trip the system. Ensure the load bank is properly grounded and that ambient conditions (temperature, humidity) align with operational guidelines. For example, testing a UPS in a 40°C environment without adequate ventilation can lead to overheating.
Practical Tips for Effective Validation:
Schedule tests during off-peak hours to minimize disruption. Use a load bank with variable resistance to simulate gradual load increases. For mission-critical systems, perform tests quarterly; for less critical setups, biannually. Always compare results against manufacturer specifications to identify potential issues early.
UPS System Validation via load bank testing is indispensable for ensuring power continuity during outages. By systematically assessing performance, organizations can mitigate risks, extend equipment lifespan, and maintain operational resilience. This proactive approach not only confirms UPS functionality but also provides actionable insights for maintenance and upgrades.
Is BB&T a Second Chance Bank? Exploring Options for Fresh Starts
You may want to see also
Explore related products
Preventive Maintenance: Identifies issues early, reduces downtime, and extends equipment lifespan through regular testing
Regular load bank testing is a cornerstone of preventive maintenance, serving as a proactive measure to ensure the reliability and longevity of critical power systems. By simulating real-world electrical loads, these tests stress generators, uninterruptible power supplies (UPS), and other backup systems to reveal weaknesses before they escalate into failures. For instance, a 100% load bank test on a diesel generator can expose issues like carbon buildup in the engine, insufficient fuel delivery, or overheating—problems that might go unnoticed during routine, low-load operation. This early detection is crucial, as it allows for targeted repairs or adjustments, preventing catastrophic breakdowns during emergencies when these systems are most needed.
Consider the financial implications of unplanned downtime. A single hour of downtime in a data center can cost upwards of $100,000, according to industry estimates. Load bank testing mitigates this risk by ensuring that backup systems are ready to perform under full load conditions. For example, a hospital’s emergency generator must deliver consistent power during a blackout, and a load bank test can verify its capacity to handle peak demand without faltering. By identifying and rectifying issues like battery degradation in a UPS or worn-out components in a generator, these tests reduce the likelihood of system failure, thereby minimizing costly disruptions to operations.
The lifespan of power equipment is directly tied to how well it is maintained. Without regular load bank testing, components like alternators, voltage regulators, and cooling systems can degrade prematurely due to underuse or improper load management. A generator that runs infrequently, for instance, may suffer from wet stacking—a condition where unburned fuel accumulates in the exhaust system, leading to corrosion and reduced efficiency. By subjecting the equipment to periodic full-load tests, you ensure that all components operate within their designed parameters, promoting even wear and extending their service life. This approach is particularly critical for equipment in standby mode, which may otherwise remain untested for months or years.
Implementing a load bank testing regimen requires careful planning and adherence to best practices. Tests should be conducted at least annually, or more frequently for mission-critical systems. For generators, a typical test sequence involves running the unit at 25%, 50%, 75%, and 100% of its rated capacity for 30 minutes each, monitoring parameters like voltage, frequency, and exhaust temperature. UPS systems, on the other hand, may require shorter but more frequent tests to assess battery health and inverter functionality. Always consult manufacturer guidelines and local safety regulations, and ensure that trained personnel perform the tests to avoid damage or injury. By integrating load bank testing into a structured preventive maintenance program, organizations can safeguard their investments, enhance operational reliability, and avoid the pitfalls of reactive maintenance.
Are US Bank and HSBC the Same? Unraveling the Banking Confusion
You may want to see also
Frequently asked questions
A load bank test is a controlled method of applying an electrical load to a power source, such as a generator or battery system, to simulate real-world operating conditions and evaluate its performance, capacity, and reliability.
A load bank test is necessary for generators to ensure they can handle their rated capacity, verify their efficiency, identify potential issues, and maintain compliance with industry standards, ultimately preventing failures during critical operations.
A load bank test should typically be performed annually or after 200-300 hours of operation, depending on the manufacturer's recommendations and the specific application, to ensure ongoing reliability and performance.
The different types of load bank tests include resistive, reactive, and mixed (resistive/reactive) tests, each designed to evaluate specific aspects of a power source's performance, such as voltage regulation, frequency stability, and power factor.
When performed correctly by trained professionals, a load bank test should not damage the equipment. However, improper testing procedures or exceeding the equipment's capacity can lead to overheating, component failure, or other damage.
