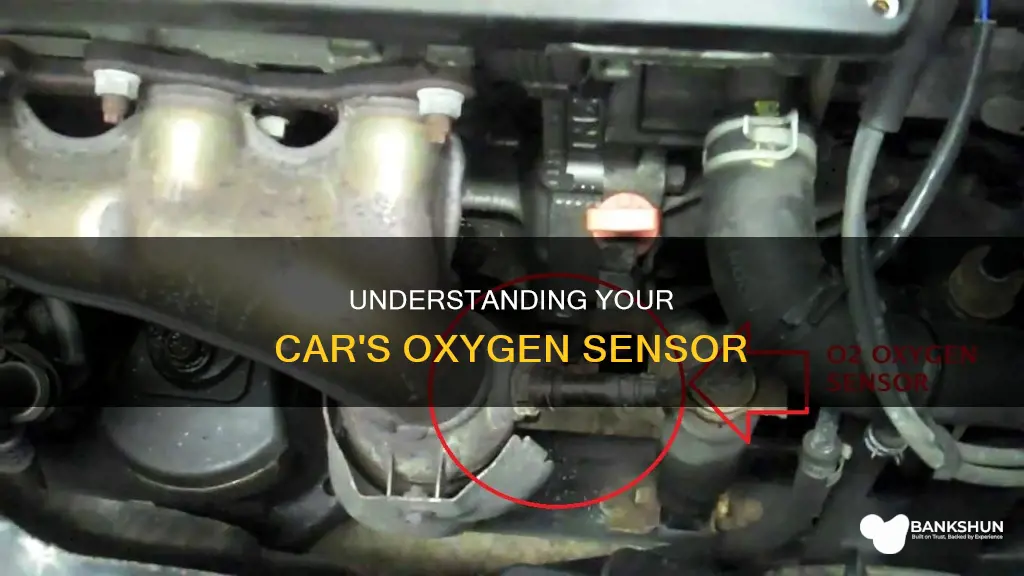

Bank 1 Sensor 1 is an oxygen sensor located before the catalytic converter, on the side with Cylinder #1. It is a crucial component of a vehicle's emission control system, providing real-time data on oxygen levels in the exhaust stream to the Engine Control Unit (ECU). This information is vital for the ECU to adjust the air-fuel mixture, ensuring efficient combustion and reducing harmful emissions. A malfunctioning Bank 1 Sensor 1 can cause the check engine light to illuminate, indicating potential issues with the vehicle's performance and emission standards compliance.
| Characteristics | Values |
|---|---|
| Full Form | Heated Oxygen Sensor Bank 1, Sensor 1 |
| Other Names | O2 Sensor, Upstream O2 Sensor |
| Location | Before the catalytic converter, on the side with Cylinder #1 |
| Function | Measures oxygen content in exhaust gases and relays data to the Engine Control Unit (ECU) |
| Role | Optimizes combustion, enhances engine efficiency, and minimizes emissions |
| Malfunction Indication | Activation of the check engine light |
| Other Symptoms of Malfunction | Reduced fuel economy, unstable or rough engine idle, decrease in overall engine power |
| Tools for Replacement | Dedicated oxygen sensor socket, ratchet wrench, socket extension, calibrated torque wrench, penetrating lubricant, gloves, safety glasses |
Explore related products
What You'll Learn
The O2 sensor is located before the catalytic converter
The O2 sensor, also known as the oxygen sensor, is a key component of a vehicle's exhaust system. It measures the amount of unburned oxygen in the exhaust gases, which exit the engine. This data is then communicated to the vehicle's electronic control unit (ECU), which adjusts the amount of fuel that goes into the combustion chamber. This ensures that the engine is running at an ideal air-fuel ratio, which in turn helps the catalytic converter operate effectively.
It is important to know the difference between upstream and downstream sensors. Upstream sensors provide data for immediate performance adjustments, while downstream sensors ensure the long-term effectiveness of the converter. Upstream sensors adjust the air-fuel mixture, while downstream sensors evaluate the catalytic converter's efficiency.
Identifying the correct sensor is crucial for effective engine troubleshooting. Bank 1 Sensor 1 is usually mounted near the catalytic converter. To locate it, you can follow the exhaust manifold towards the converter, and look for electrical connectors or wires connected to the sensor on the exhaust manifold or pipe.
O2 sensors became mandatory in vehicles in 1981. They do not require regular maintenance, but they can wear out over time. Signs of a failing O2 sensor include decreased gas mileage, engine misfiring, a drop in engine power, and a rotten egg smell.
Expired Food: Can Food Banks Accept It?
You may want to see also
Explore related products
Bank 1 is the side with cylinder number one
The term "Bank 1 Sensor 1" refers to a specific oxygen sensor in a vehicle's emission control system. This sensor plays a pivotal role in measuring the oxygen content in exhaust gases and relaying that data to the Engine Control Unit (ECU). By doing so, it helps to optimise combustion, enhance engine efficiency, and minimise emissions.
Bank 1, in automotive terminology, refers to the cylinder bank that contains cylinder number one. In an inline four-cylinder engine, this is the only bank. However, in inline six-cylinder engines, it can be more complex, with multiple banks represented in diagnostic data. For instance, in the BMW M54 engine, the front three cylinders represent Bank 1, while the rear three are Bank 2.
For V-type engines, Bank 1 is indeed the side with cylinder number one. This means it includes cylinders 1, 3, 5, 7, and sometimes 9 and 11. The sensor number helps identify the location of the oxygen sensor within the exhaust system, with Sensor 1 being the first sensor closest to the engine.
To locate Bank 1 Sensor 1, you can follow these steps:
- Identify Bank 1 by checking your vehicle's repair manual to find the number one cylinder.
- Locate the exhaust manifold on Bank 1 and trace it towards the catalytic converter.
- Look for the oxygen sensor mounted on the exhaust manifold or pipe. It will usually be located before the catalytic converter.
- Check for electrical connectors by looking for wires connected to the sensor.
Gold Coin Investment: Banks and Buying Guide
You may want to see also
Explore related products
The sensor provides real-time data on oxygen content
Oxygen sensors (O2 sensors) are integral to modern engine management systems. They measure the oxygen content in exhaust gases and relay that data to the Engine Control Unit (ECU). This enables the ECU to fine-tune the air-fuel mixture, optimising combustion, enhancing engine efficiency, and minimising emissions. These sensors play a vital role in determining if the engine is running a lean (excess air) or rich (excess fuel) mixture. By maintaining the ideal air-fuel ratio, oxygen sensors ensure the catalytic converter operates effectively, reducing harmful emissions and improving fuel economy.
In automotive terminology, "Bank 1" refers to the cylinder bank containing cylinder number one. For an inline four-cylinder engine, this is the only bank. In inline six-cylinder engines, it might be more complex, with multiple banks represented in diagnostic data. For instance, the BMW M54 engine employs two separate exhaust manifolds despite having only one cylinder bank. In this context, the front three cylinders represent Bank 1, while the back three are Bank 2.
Bank 1 Sensor 1 is an upstream oxygen sensor, positioned before the catalytic converter. Its primary role is to measure the oxygen content in the exhaust gas directly exiting the engine. This measurement provides critical feedback for the ECU to perform immediate fuel trim adjustments (Short-Term Fuel Trim - STFT and Long-Term Fuel Trim - LTFT) to maintain the ideal air-fuel ratio. Upstream sensors provide data for immediate performance adjustments, while downstream sensors ensure long-term converter effectiveness.
ICS: International Banking's Secret Code
You may want to see also
Explore related products
A malfunctioning sensor can trigger the check engine light
Modern vehicles are incredibly complex machines, with many systems relying on a variety of sensors to monitor performance. These sensors are essential for the vehicle to operate efficiently and effectively. When one of these sensors malfunctions, it can trigger the dreaded 'check engine' light, indicating that something is not quite right.
The oxygen sensor, or O2 sensor, is one such component that can cause the check engine light to illuminate. This sensor measures the amount of unburned oxygen in the exhaust system and helps regulate the fuel-to-oxygen ratio. A faulty oxygen sensor can cause the engine to burn more fuel than usual, leading to reduced gas mileage and higher emissions. It may also cause other issues, such as black smoke from the exhaust or an unpleasant odour.
Another sensor that can trigger the check engine light is the mass airflow (MAF) sensor. This sensor monitors how much air enters the engine and is crucial for the engine-management system. Symptoms of a failing MAF sensor include a rough idle, trouble starting the engine, and a sudden change in the position of the throttle pedal.
In some cases, a faulty engine speed sensor can also be the culprit. This sensor monitors the position and speed of the crankshaft and relays that data to the Electronic Control Unit (ECU). When it fails, you may notice issues with the speedometer reading or the cruise control function. It may even affect the transmission, causing hard shifts or limited gear availability.
The location of the faulty sensor is crucial for diagnosis and repair. For example, in the context of Bank 1 Sensor 1, it is important to understand that "Bank 1" refers to the cylinder bank containing cylinder number one. The oxygen sensor in this bank plays a pivotal role in the vehicle's emission control system by providing real-time oxygen level data to the ECU.
To summarise, a malfunctioning sensor can indeed trigger the check engine light, and identifying the specific sensor causing the issue is essential for effective troubleshooting and maintaining optimal vehicle performance.
OnlyFans Payouts: Which Banks Are Compatible?
You may want to see also
Explore related products
Upstream sensors adjust the air-fuel mixture
Oxygen sensors, or O2 sensors, are crucial for modern engine management. They measure the oxygen content in the exhaust gases and send this data to the Engine Control Unit (ECU). This data allows the ECU to adjust the air-fuel mixture, optimising combustion, enhancing engine efficiency, and reducing harmful emissions. Upstream and downstream oxygen sensors have distinct roles and locations within this process.
Upstream oxygen sensors, also known as pre-catalytic sensors, are positioned before the catalytic converter. They monitor oxygen levels in the exhaust gases exiting the engine, providing real-time data for immediate performance adjustments. This data is critical for the ECU to fine-tune the air-fuel mixture, ensuring optimal combustion efficiency. Upstream sensors help to determine if the engine is running lean (with excess air) or rich (with excess fuel). By maintaining the ideal air-fuel ratio, upstream sensors play a vital role in reducing emissions and improving fuel economy.
In newer vehicles, upstream sensors may be referred to as air-fuel sensors, operating on amperage instead of voltage. These sensors calculate the precise air-fuel mixture, allowing the vehicle to adjust the fuel injection accordingly. Upstream sensors are high-authority sensors that contribute significantly to the vehicle's fuel trim, or the adjustments made to the fuel injection system.
The location of upstream sensors can vary depending on the engine type. In V-type engines, Bank 1 is typically the side with cylinder number one, while inline engines have only one bank. To locate the upstream sensor, you can refer to the vehicle's repair manual and follow the exhaust manifold connected to cylinder number one towards the catalytic converter. The upstream sensor is usually mounted nearby.
By understanding the role and location of upstream sensors, such as Bank 1 Sensor 1, vehicle owners and mechanics can effectively troubleshoot engine issues and ensure optimal engine performance. These sensors are essential for maintaining emission standards and improving fuel efficiency.
ITF in Banking: What Does It Mean?
You may want to see also
Frequently asked questions
Bank 1 Sensor 1 is an oxygen sensor in a vehicle's emission control system. It is located on the side of the engine block that houses cylinder number one.
Bank 1 Sensor 1 is usually mounted near the catalytic converter. You can locate it by tracing the exhaust pipe from the converter back toward the engine. The first oxygen sensor you encounter will be Bank 1 Sensor 1.
A malfunctioning Bank 1 Sensor 1 will usually trigger the check engine light on your vehicle's instrument panel. You may also notice a reduction in fuel economy, unstable or rough engine idle, and decreased engine power and responsiveness during acceleration.
