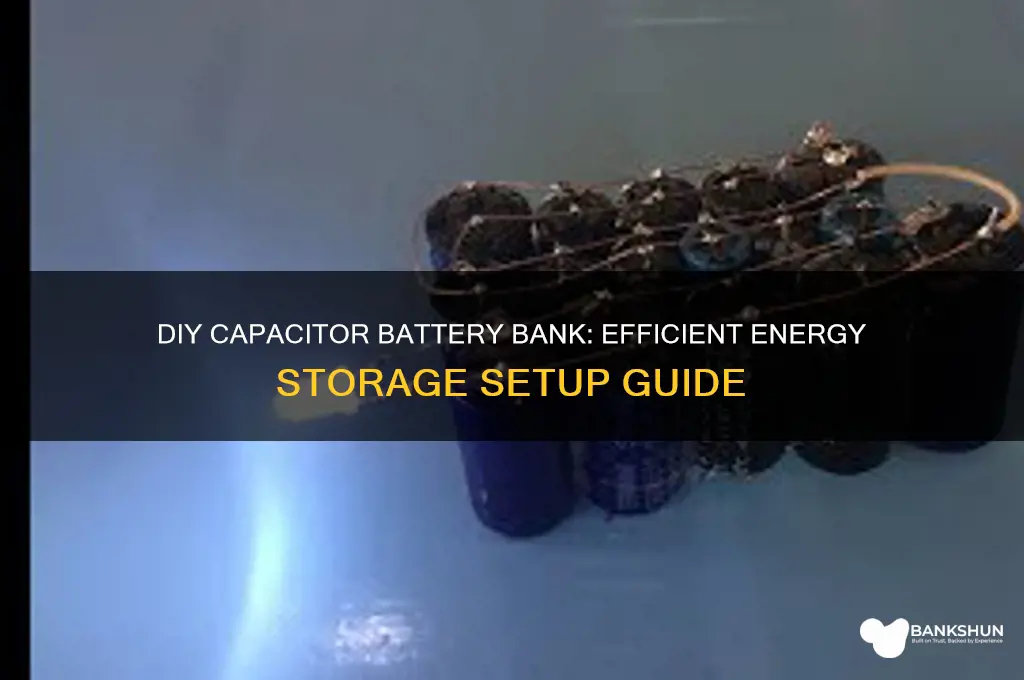

Building a capacitor battery bank is an innovative approach to energy storage that leverages the rapid charge and discharge capabilities of capacitors, offering a more efficient and durable alternative to traditional chemical batteries. Unlike batteries, capacitors store energy in an electric field, allowing for quicker energy transfer and a longer lifespan due to reduced degradation over cycles. To construct a capacitor battery bank, you’ll need high-capacity supercapacitors, a charge controller to manage input and output, a voltage regulator to stabilize power delivery, and a protective enclosure to house the components. The process involves connecting multiple supercapacitors in series or parallel to achieve the desired voltage and capacity, ensuring proper balancing to prevent overcharging or overheating. This setup is ideal for applications requiring high power bursts, such as renewable energy systems, backup power, or electric vehicles, though it’s important to note that capacitors store less energy per unit volume than batteries, making them less suitable for long-term energy storage.
Explore related products
What You'll Learn
- Capacitor Selection: Choose high-capacity, low-ESR capacitors for efficient energy storage and discharge
- Series/Parallel Configuration: Calculate optimal arrangement to meet voltage and capacity requirements
- Charge/Discharge Circuitry: Design circuitry to safely charge and discharge capacitors without damage
- Voltage Balancing: Implement balancing techniques to prevent overvoltage in individual capacitors
- Safety & Cooling: Ensure proper insulation, cooling, and safety measures to prevent overheating or failure
Capacitor Selection: Choose high-capacity, low-ESR capacitors for efficient energy storage and discharge
When building a capacitor battery bank, capacitor selection is critical for achieving efficient energy storage and discharge. The primary focus should be on high-capacity capacitors, which store more energy per unit volume, making them ideal for applications requiring rapid energy release. Capacitance, measured in farads (F), directly correlates with energy storage capacity. For a battery bank, supercapacitors (also known as ultracapacitors) are often the best choice due to their significantly higher capacitance compared to traditional capacitors. These devices can store and discharge energy quickly, making them suitable for high-power applications like regenerative braking systems or backup power supplies.
Equally important is selecting capacitors with low Equivalent Series Resistance (ESR). ESR represents the internal resistance of the capacitor and directly impacts efficiency during charge and discharge cycles. High ESR leads to energy loss in the form of heat, reducing overall system efficiency. Low-ESR capacitors minimize these losses, ensuring that more of the stored energy is available for use. When building a capacitor battery bank, prioritize capacitors with ESR values in the milliohm (mΩ) range or lower, as these will provide the best performance in high-power scenarios.
Voltage rating is another crucial factor in capacitor selection. The chosen capacitors must have a voltage rating that exceeds the maximum operating voltage of the system to prevent breakdown or failure. For a battery bank, it’s common to connect capacitors in series to achieve the desired total voltage. Ensure that the voltage rating of each capacitor is at least 20% higher than the expected working voltage to provide a safety margin. Additionally, consider the temperature stability of the capacitors, as operating temperatures can affect performance and lifespan. High-quality capacitors with stable performance across a wide temperature range are essential for reliability.
The form factor and packaging of the capacitors should also align with the physical requirements of your battery bank. Supercapacitors are available in various form factors, including cylindrical, coin-type, and pouch cells. Choose a form factor that fits your design constraints while maximizing energy density. Pouch cells, for example, offer high flexibility and can be stacked efficiently, making them a popular choice for compact battery bank designs. Ensure that the chosen capacitors are compatible with your intended mounting and cooling methods to maintain optimal performance.
Finally, lifespan and durability are key considerations for long-term reliability. Capacitors, especially supercapacitors, have a finite number of charge-discharge cycles before their performance degrades. Select capacitors with a high cycle life rating, typically specified in the millions of cycles, to ensure longevity. Additionally, consider the leakage current of the capacitors, as high leakage can drain stored energy over time. Low-leakage capacitors are essential for applications where the battery bank needs to retain charge for extended periods. By carefully evaluating these factors, you can select capacitors that deliver efficient energy storage and discharge, ensuring the success of your capacitor battery bank project.
