Ethan Riley

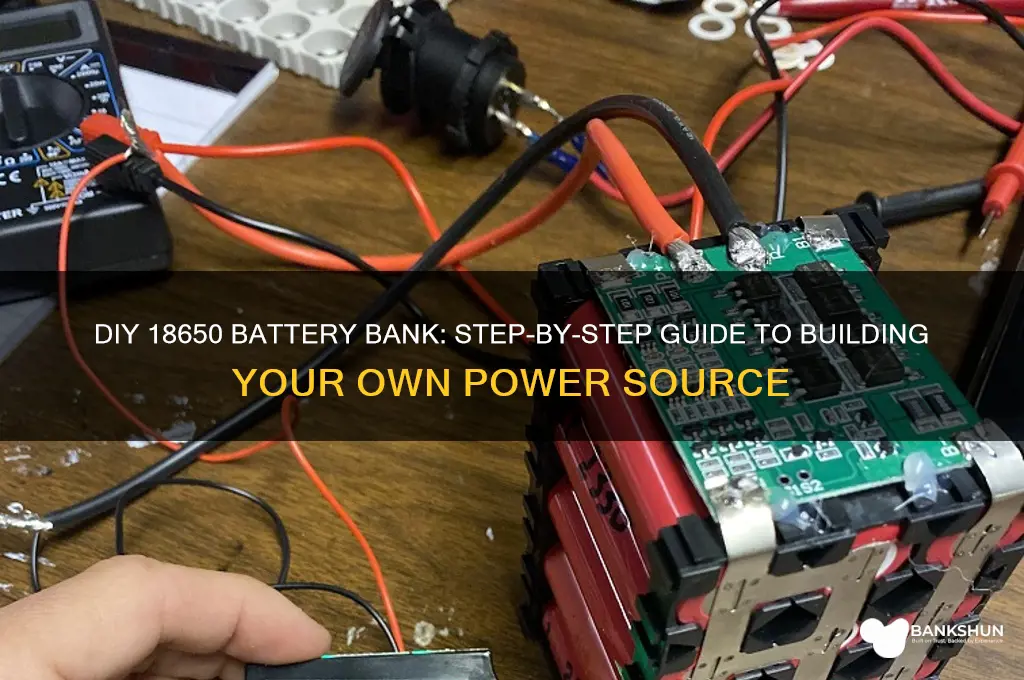

Creating a 18650 battery bank is a practical and cost-effective way to harness portable power for various applications, such as powering DIY projects, emergency backup systems, or off-grid devices. This process involves assembling multiple 18650 lithium-ion cells, which are commonly found in laptops and power tools, into a single unit capable of delivering higher voltage and capacity. Key steps include selecting high-quality, matched cells, ensuring proper wiring and connections, incorporating a battery management system (BMS) for safety and longevity, and housing the assembly in a secure, well-ventilated enclosure. With careful planning and attention to detail, a 18650 battery bank can provide reliable, reusable energy while minimizing environmental impact through the reuse of recycled cells.
Explore related products
What You'll Learn
- Gathering Materials: Source 18650 cells, holders, BMS, wiring, soldering tools, and safety gear
- Testing Cells: Check voltage, capacity, and health of each 18650 cell before assembly
- Wiring Configuration: Connect cells in series/parallel, ensuring proper polarity and secure connections
- Installing BMS: Add Battery Management System to monitor voltage, current, and prevent overcharging
- Encasing the Bank: Secure the battery pack in a protective case for safety and portability
Gathering Materials: Source 18650 cells, holders, BMS, wiring, soldering tools, and safety gear
Building a 18650 battery bank starts with sourcing high-quality cells, the backbone of your project. These lithium-ion cells are widely available online or at electronics stores, but not all are created equal. Look for reputable brands like Panasonic, Samsung, or LG, and prioritize cells with matching capacities and discharge rates. Avoid mixing old and new cells or those from different manufacturers, as this can lead to imbalance and potential failure. For a typical DIY battery bank, aim for cells with a capacity of 2500mAh or higher, ensuring they’re rated for the amperage your project demands.
Next, secure a battery holder or casing that accommodates the number of cells you plan to use. Holders come in various configurations—parallel, series, or a combination—depending on your voltage and capacity needs. For instance, a 3S2P (3 series, 2 parallel) setup yields 12V with doubled capacity. Ensure the holder is made of non-conductive material like plastic to prevent short circuits. If you’re building a custom case, use PVC or 3D-printed designs, but verify proper ventilation to dissipate heat.
A Battery Management System (BMS) is non-negotiable for safety and longevity. The BMS monitors cell voltage, prevents overcharging or discharging, and balances the cells during charging. Choose a BMS that matches your battery configuration—for example, a 3S BMS for a 3-cell series setup. Ensure it supports the maximum discharge current of your cells; a 10A BMS is common for small to medium-sized banks. Test the BMS before installation to confirm functionality, as a faulty unit can render your entire project unsafe.
Wiring and soldering tools are critical for connecting components securely. Use high-temperature silicone wire (16-18 AWG) for durability and safety. Solder joints with a quality soldering iron and lead-free solder, ensuring clean, strong connections. Avoid cold solder joints by heating the wire and terminal simultaneously. If soldering isn’t your forte, consider nickel strips for parallel connections, but verify they’re spot-welded securely. Always double-check polarity to prevent reverse connections, which can damage cells or cause fires.
Finally, prioritize safety gear to protect yourself during assembly. Wear nitrile gloves to avoid contact with lithium, which can cause skin irritation. Safety goggles shield your eyes from potential short-circuit sparks or chemical leaks. Keep a fire extinguisher nearby, specifically rated for lithium fires (Class D). Work in a well-ventilated area and never leave charging batteries unattended. These precautions may seem excessive, but they’re essential for mitigating risks in a high-energy project like a 18650 battery bank.
Step-by-Step Guide to Applying for IPO via HDFC Bank
You may want to see also
Explore related products
Testing Cells: Check voltage, capacity, and health of each 18650 cell before assembly
Before assembling a 18650 battery bank, each cell must undergo rigorous testing to ensure safety, performance, and longevity. A single weak or damaged cell can compromise the entire bank, leading to inefficiency, overheating, or even failure. Testing voltage, capacity, and overall health is not optional—it’s a critical step that separates a reliable power source from a potential hazard.
Voltage Testing: The First Line of Defense
Begin by measuring the resting voltage of each cell using a multimeter. A healthy 18650 cell should read between 3.2V and 4.2V when fully charged. Any cell below 3.0V is likely depleted beyond recovery, while one above 4.2V risks being overcharged, which can cause permanent damage. Discard cells outside this range immediately. For consistency, test cells after they’ve been resting for at least 1 hour to ensure accurate readings. This simple check weeds out the most obvious candidates for failure, saving time and preventing future issues.
Capacity Testing: The True Measure of Performance
Voltage alone doesn’t tell the full story. Capacity testing reveals how much energy a cell can store and deliver. Use a battery analyzer or discharge tester to measure the actual mAh output compared to the cell’s rated capacity (typically 2000–3500mAh). Cells retaining less than 80% of their original capacity should be excluded, as they’ll drain faster and imbalance the bank. For example, a 3000mAh cell delivering only 2200mAh is a liability. This step ensures your battery bank operates at peak efficiency and avoids premature shutdowns.
Health Assessment: Beyond the Numbers
Physical inspection and internal resistance testing provide deeper insights into a cell’s health. Look for signs of damage, such as bloating, leaks, or corrosion, which indicate internal failure. Use an internal resistance meter to measure resistance, ideally below 50 milliohms for most 18650 cells. Higher resistance suggests increased wear or internal damage, reducing efficiency and lifespan. Cells with abnormal resistance or visible defects should be discarded, even if their voltage and capacity seem acceptable.
Practical Tips for Streamlined Testing
To expedite the process, organize cells into groups based on brand, age, and source, as cells from the same batch often perform similarly. Label each cell with its test results for easy reference during assembly. Invest in a multi-slot charger with voltage readouts to monitor cells during charging, and use a spreadsheet to track voltage, capacity, and resistance data. Finally, always test cells in a well-ventilated area and handle them with care to avoid short circuits or physical damage.
By meticulously testing voltage, capacity, and health, you lay the foundation for a robust and reliable 18650 battery bank. Skipping this step may save time upfront but risks costly failures down the line. Think of it as a diagnostic check for your power source—an investment in safety and performance that pays dividends in the long run.
Does Green Dot Bank Accept Zelle Payments? A Comprehensive Guide
You may want to see also
Explore related products
Wiring Configuration: Connect cells in series/parallel, ensuring proper polarity and secure connections
Connecting 18650 cells in a battery bank requires precision in wiring configuration to achieve the desired voltage and capacity. Series connections increase voltage while keeping capacity constant, whereas parallel connections boost capacity while maintaining voltage. For instance, wiring four 3.7V cells in series yields a 14.8V battery, ideal for high-voltage applications like power tools. Conversely, connecting four cells in parallel results in a 3.7V battery with quadruple the capacity, suitable for low-voltage, high-drain devices like LED strips. Understanding this fundamental difference is crucial for tailoring your battery bank to specific needs.
To ensure proper polarity, always align the positive terminal of one cell with the negative terminal of the next when wiring in series. Reversing polarity can lead to short circuits, overheating, or even explosions. Use nickel strips or high-quality soldering techniques to create secure connections, minimizing resistance and heat generation. For parallel configurations, connect all positive terminals together and all negative terminals together, ensuring equal current distribution. A single weak or reversed connection can compromise the entire bank, so double-check each joint with a multimeter before proceeding.
When combining series and parallel connections (series-parallel configuration), organize cells into groups wired in parallel first, then connect these groups in series. For example, to create a 12V battery with increased capacity, wire three pairs of cells in parallel (each pair providing 3.7V) and then connect these three groups in series. This approach maximizes both voltage and capacity while maintaining balance across the bank. Label each group clearly to avoid confusion during assembly and future maintenance.
Caution must be exercised when handling high-capacity battery banks. Overheating due to poor connections or mismatched cell capacities can lead to thermal runaway. Always use cells of the same brand, model, and capacity to ensure uniform performance. Incorporate a Battery Management System (BMS) to monitor voltage, current, and temperature, providing protection against overcharging, overdischarging, and short circuits. Regularly inspect the bank for signs of swelling, leakage, or damage, and replace any compromised cells immediately.
In conclusion, mastering wiring configuration is the backbone of a reliable 18650 battery bank. Whether you prioritize voltage, capacity, or a balance of both, precise series and parallel connections, coupled with secure joints and proper polarity, are non-negotiable. By adhering to these principles and incorporating safety measures like a BMS, you can build a robust, efficient, and safe battery bank tailored to your specific energy demands.
Exploring Genetic Evolution: Unlocking the Secrets of Genes and Genomes
You may want to see also
Explore related products
Installing BMS: Add Battery Management System to monitor voltage, current, and prevent overcharging
A Battery Management System (BMS) is the sentinel of your 18650 battery bank, ensuring each cell operates within safe limits. Without it, overcharging, overdischarging, or uneven current distribution can lead to reduced lifespan, heat buildup, or even catastrophic failure. For a 10-series (10S) or 12-series (12S) battery bank, a BMS with balancing capabilities is essential to maintain equal charge levels across all cells, maximizing efficiency and safety.
Selecting the right BMS involves matching its specifications to your battery bank’s configuration. For instance, a 10S BMS supports 10 cells in series, totaling 36V (3.6V per cell), while a 12S BMS handles 12 cells for 43.2V. Ensure the BMS’s continuous discharge current rating exceeds your application’s peak demand—for example, a 30A BMS is suitable for a bank powering a 20A load. Additionally, opt for a BMS with active balancing, which redistributes excess charge from overcharged cells to undercharged ones, rather than passive balancing, which dissipates excess energy as heat.
Installation begins with connecting the BMS between the battery bank and the load. Start by wiring the BMS’s "B-" (battery negative) terminal to the negative end of the first cell and the "P-" (load negative) terminal to your device’s negative input. Then, daisy-chain the positive terminals of each cell to the corresponding BMS balance ports (B1, B2, etc.), ending with the "B+" (battery positive) terminal connected to the final cell’s positive end. Finally, link the "P+" (load positive) terminal to your device’s positive input. Double-check all connections to avoid shorts, as a miswired BMS can damage cells instantly.
During operation, the BMS monitors voltage and current in real time, cutting power if thresholds are exceeded. For example, if a cell reaches 4.2V during charging (the maximum safe voltage for 18650 cells), the BMS will disconnect the charger. Similarly, it halts discharge at 2.5V per cell to prevent irreversible damage. Periodic firmware updates and visual inspections of the BMS’s wiring ensure long-term reliability. Pairing a BMS with a smart charger further enhances safety, as it communicates directly with the system to optimize charging profiles.
While a BMS adds complexity and cost, its role in preventing thermal runaway, extending battery life, and safeguarding against user error is invaluable. Consider it the brain of your battery bank—an investment that pays dividends in performance and peace of mind. Always source BMS units from reputable manufacturers and verify compatibility with your specific 18650 cells to avoid mismatches that could compromise functionality.
Capital One's Expansion: Buying Out Other Banks
You may want to see also
Explore related products
Encasing the Bank: Secure the battery pack in a protective case for safety and portability
A protective case is not just an accessory for your 18650 battery bank—it’s a critical safety measure. Lithium-ion batteries, including 18650 cells, can short circuit, overheat, or even rupture if damaged or improperly handled. A sturdy enclosure acts as a barrier, minimizing the risk of physical damage and containing potential hazards like fire or chemical leaks. Without it, a single puncture or impact could turn your power source into a liability.
Material Matters: Choosing the Right Enclosure
Not all cases are created equal. Opt for non-conductive materials like ABS plastic or polycarbonate to prevent accidental shorts. Metal cases, while durable, require careful insulation to avoid contact between the battery terminals and the casing. For portability, consider lightweight yet robust options like 3D-printed PLA with reinforced corners. DIY enthusiasts often repurpose ammo boxes or Pelican cases, but ensure they meet IP65 or higher ratings for dust and water resistance.
Design for Accessibility and Ventilation
A well-designed case balances protection with functionality. Incorporate a hinged lid or removable panel for easy access to the battery bank, allowing for maintenance or cell replacement. Ventilation is equally crucial—drill small holes or use mesh-covered openings to dissipate heat, especially if your bank includes a charging circuit or high-drain cells. Avoid sealing the case entirely, as trapped heat can accelerate degradation or trigger thermal runaway.
Mounting and Securing the Cells
Loose batteries inside a case are a recipe for disaster. Use foam padding, 3D-printed holders, or commercial battery spacers to immobilize each cell. For larger banks, consider a modular design with individual cell compartments to prevent cascading failures. Secure the entire assembly with zip ties, Velcro straps, or silicone adhesive, ensuring no movement during transport. Double-check polarity alignment before sealing the case to avoid reversed connections.
Portability Without Compromise
A portable battery bank should be compact, ergonomic, and travel-ready. Add a handle or shoulder strap for ease of carrying, and integrate external ports (USB, DC) with reinforced grommets to prevent cable strain. For frequent travelers, comply with airline regulations by labeling the case with voltage and capacity, and ensure the bank doesn’t exceed 100Wh (typically 6–8 18650 cells in series-parallel). Test the final assembly by simulating drops or vibrations to confirm structural integrity.
By prioritizing safety, functionality, and durability in your enclosure design, you transform a collection of cells into a reliable, portable power solution. A well-encased 18650 battery bank isn’t just a project—it’s a tool built to withstand real-world demands.
Fractional Reserve Banking: Impact on Consumer Savings and Spending Power
You may want to see also
Frequently asked questions
An 18650 battery bank is a portable power source made by connecting multiple 18650 lithium-ion batteries in series or parallel. It is commonly used for powering DIY projects, portable electronics, emergency backup power, or off-grid applications.
The total voltage depends on the number of batteries connected in series (e.g., 3 batteries in series = 3.7V x 3 = 11.1V). The total capacity (mAh) is determined by the number of batteries in parallel (e.g., 2 batteries in parallel = 2 x 3000mAh = 6000mAh).
Always use batteries with the same capacity and voltage, avoid mixing old and new batteries, and ensure proper ventilation. Use a Battery Management System (BMS) to prevent overcharging, over-discharging, and short circuits. Wear protective gear and work in a fire-safe area.
While possible, it’s risky. Recycled batteries may have degraded performance, reduced capacity, or safety issues. If using them, test each battery individually for voltage and capacity, and discard any damaged or weak cells.
For series connections, connect the positive terminal of one battery to the negative terminal of the next to increase voltage. For parallel connections, connect all positive terminals together and all negative terminals together to increase capacity. Use proper wiring and soldering techniques for secure connections.
