Ethan Riley

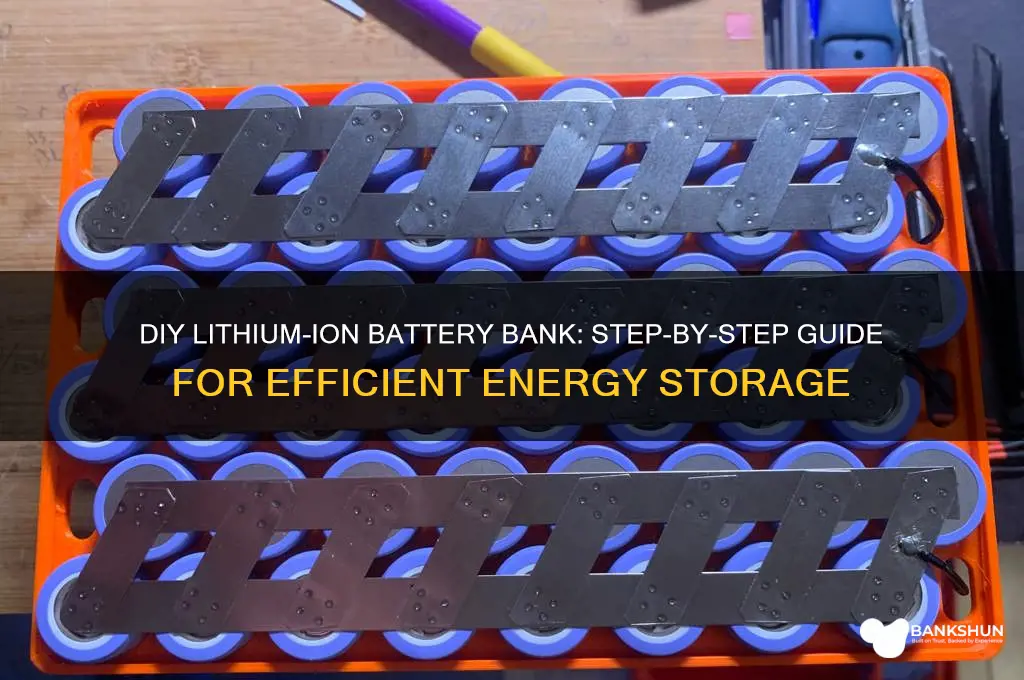

Creating a lithium-ion battery bank involves assembling multiple lithium-ion batteries in series or parallel configurations to achieve the desired voltage and capacity for specific applications. This process requires careful planning, including selecting compatible batteries, ensuring proper safety measures, and incorporating a Battery Management System (BMS) to monitor and balance individual cell voltages. Additionally, understanding the electrical requirements of the intended use, such as powering homes, RVs, or off-grid systems, is crucial. Proper wiring, ventilation, and adherence to manufacturer guidelines are essential to prevent overheating, short circuits, or other hazards. A well-designed lithium-ion battery bank offers high energy density, longer lifespan, and efficient performance, making it a popular choice for modern energy storage solutions.
Explore related products
What You'll Learn
- Battery Selection: Choose high-quality, compatible lithium-ion cells with matching voltage, capacity, and chemistry
- BMS Installation: Install a Battery Management System to monitor voltage, temperature, and balance cells
- Wiring Configuration: Use proper gauge wires and parallel/series connections for desired voltage/capacity
- Enclosure Design: Build a ventilated, fire-resistant enclosure to house the battery bank safely
- Charging Setup: Set up a compatible charger with voltage/current limits to prevent overcharging
Battery Selection: Choose high-quality, compatible lithium-ion cells with matching voltage, capacity, and chemistry
Lithium-ion cells are the backbone of any battery bank, and their quality directly impacts performance, safety, and longevity. Opt for reputable brands like Panasonic, LG, or Samsung, known for consistent manufacturing standards and rigorous quality control. Avoid no-name or uncertified cells, as they often lack critical safety features and may degrade rapidly under stress. Always verify the cell’s authenticity through manufacturer codes or third-party testing reports to ensure you’re not compromising your project.
Compatibility is non-negotiable when selecting cells for a battery bank. Voltage mismatches, even as small as 0.1V, can lead to uneven charging, overheating, or premature failure. For instance, pairing a 3.6V cell with a 3.7V cell in the same series circuit will cause the lower-voltage cell to over-discharge, permanently damaging it. Similarly, capacity disparities (e.g., mixing 2000mAh and 3000mAh cells) result in inefficient charge distribution, reducing the overall cycle life of the bank. Use a multimeter to verify voltage and capacity alignment before assembly.
Chemistry consistency is equally critical, as different lithium-ion chemistries (e.g., NMC, LFP, LTO) have distinct charge/discharge profiles and temperature tolerances. Mixing chemistries can lead to thermal runaway or reduced efficiency. For example, LFP cells (lithium iron phosphate) operate at a lower voltage (3.2V) compared to NMC (nickel manganese cobalt) cells (3.7V), making them incompatible in the same circuit. Stick to a single chemistry type and ensure all cells share the same manufacturer specifications for optimal performance.
Practical tips for selection include purchasing cells from the same production batch to minimize variation in internal resistance and aging. If batch information isn’t available, prioritize cells with matching date codes. For DIY battery banks, 18650 cells are a popular choice due to their high energy density and availability, but ensure they’re designed for high-drain applications if your project demands rapid discharge rates. Always store cells in a cool, dry place before assembly to prevent capacity loss or degradation.
Finally, consider the intended application when choosing cells. High-drain scenarios like electric vehicles or power tools require cells with low internal resistance and high C-ratings (e.g., 10C or higher). For stationary energy storage, prioritize cells with long cycle life and stable performance under partial state-of-charge conditions. Tools like battery analyzers can help assess cell health and compatibility before integration, ensuring your battery bank operates safely and efficiently for years to come.
Step-by-Step Guide to Adding a Beneficiary in J&K Bank
You may want to see also
Explore related products
BMS Installation: Install a Battery Management System to monitor voltage, temperature, and balance cells
A Battery Management System (BMS) is the sentinel of your lithium-ion battery bank, ensuring longevity, safety, and optimal performance. Without it, cells can overcharge, over-discharge, or overheat, leading to reduced lifespan or catastrophic failure. The BMS monitors critical parameters—voltage, temperature, and cell balance—and intervenes when thresholds are breached. For instance, a 16S BMS (suited for 48V systems) will shut down charging if any cell exceeds 4.2V or discharging if any drops below 2.5V, preventing irreversible damage.
Installation begins with selecting a BMS compatible with your battery bank’s voltage and capacity. A 100A BMS is adequate for most home energy storage systems, but high-drain applications like EV conversions may require 200A or higher. Wire the BMS between the battery and load/charger, ensuring the balance wires are connected to each cell’s positive and negative terminals. Use high-gauge wires (e.g., 10AWG for 100A systems) to minimize resistance and heat. Secure the BMS in a well-ventilated area, away from direct heat sources, and use heat-shrink tubing to insulate connections.
Balancing cells is a critical function of the BMS, as lithium-ion cells naturally drift in voltage over time. Active balancing redistributes energy from higher-charged cells to lower ones, maintaining uniformity. For example, if one cell in a 12-cell series reaches 3.65V while others are at 3.60V, the BMS will discharge the higher cell until parity is achieved. This process extends the battery’s usable capacity and lifespan, especially in larger banks where voltage discrepancies are more pronounced.
Temperature monitoring is equally vital, as lithium-ion cells degrade rapidly above 45°C (113°F) and become inefficient below 0°C (32°F). Most BMS units include a temperature sensor that triggers shutdowns if thresholds are exceeded. For outdoor installations, consider adding insulation or a heating element to maintain optimal operating temperatures. Conversely, in hot climates, ensure adequate airflow or use cooling fans to dissipate heat.
Finally, test the BMS thoroughly before relying on it. Simulate over-voltage, under-voltage, and over-temperature conditions to verify its response. Use a multimeter to check cell voltages during charging and discharging, ensuring the BMS is actively balancing. Regularly update the BMS firmware, if applicable, to incorporate manufacturer improvements. A well-installed and maintained BMS is not just a component—it’s the cornerstone of a safe, efficient, and durable lithium-ion battery bank.
Do Banks Issue License Plates? Unraveling the Confusion
You may want to see also
Explore related products
Wiring Configuration: Use proper gauge wires and parallel/series connections for desired voltage/capacity
Wiring configuration is the backbone of any lithium-ion battery bank, dictating both its voltage and capacity. To achieve your desired output, you must understand the interplay between parallel and series connections. Parallel connections link batteries of the same voltage, increasing overall capacity (amp-hours) while maintaining the same voltage. Series connections, on the other hand, link batteries of the same capacity, increasing the total voltage while keeping the capacity constant. For instance, connecting four 3.7V, 5Ah batteries in series yields a 14.8V, 5Ah bank, while paralleling them results in a 3.7V, 20Ah bank. This fundamental principle guides the design of your battery bank, ensuring it meets the specific requirements of your application.
Selecting the proper wire gauge is critical to the safety and efficiency of your battery bank. Undersized wires can lead to excessive resistance, heat buildup, and potential failure, while oversized wires are wasteful and cumbersome. The American Wire Gauge (AWG) system provides a standardized way to choose the right wire size based on current draw and length. For example, a 12-gauge wire can safely carry up to 20 amps over a short distance, while a 10-gauge wire is suitable for up to 30 amps. Use an online wire size calculator to determine the optimal gauge for your setup, factoring in the total current draw and the length of the wire run. High-current applications, such as powering an electric vehicle or a large inverter, may require thicker wires like 6-gauge or even 2-gauge to minimize energy loss.
When designing your wiring configuration, consider both the mechanical and electrical aspects. Use high-quality connectors, such as Anderson Powerpoles or XT60s, to ensure secure and low-resistance connections. Label wires clearly to avoid confusion during assembly and maintenance. Incorporate fuses or circuit breakers into each battery’s positive lead to protect against short circuits. For larger banks, a Battery Management System (BMS) is essential to monitor individual cell voltages and balance charging, preventing overcharging or overdischarging. Proper wiring not only maximizes performance but also safeguards against hazards like thermal runaway, which can occur if cells are stressed beyond their limits.
A practical example illustrates the importance of wiring configuration. Suppose you’re building a 48V, 100Ah battery bank for a solar-powered cabin using 3.7V, 10Ah lithium-ion cells. You’d need to connect 13 cells in series to achieve 48.1V (3.7V × 13), then parallel 10 of these series strings to reach 100Ah. This requires robust wiring capable of handling the combined current, such as 8-gauge wire for interconnections and 6-gauge for the main power leads. Each series string should have its own BMS to ensure balanced charging, and the entire bank should be protected by a 100A fuse. This configuration balances voltage, capacity, and safety, demonstrating how thoughtful wiring design translates to a reliable and efficient battery bank.
In conclusion, wiring configuration is not merely a technical detail but a critical determinant of your battery bank’s performance and safety. By mastering parallel and series connections, selecting the appropriate wire gauge, and incorporating protective components, you can tailor your battery bank to meet specific voltage and capacity needs. Whether powering a small DIY project or a high-demand off-grid system, a well-designed wiring setup ensures longevity, efficiency, and peace of mind. Treat this step with the attention it deserves, as it forms the electrical foundation of your entire system.
Cancel Direct Debit Easily: A Step-by-Step Guide with Your Bank
You may want to see also
Explore related products
Enclosure Design: Build a ventilated, fire-resistant enclosure to house the battery bank safely
Lithium-ion batteries, while powerful, pose significant thermal runaway risks if not managed properly. A well-designed enclosure is your first line of defense against potential fires.
Opt for non-combustible materials like steel or aluminum for the enclosure's construction. These materials won't contribute to the spread of flames and can withstand high temperatures. Incorporate vents with flame arrestors to allow for gas release during thermal events while preventing flame propagation.
Consider a multi-layered approach for maximum protection. A double-walled design with an air gap between layers acts as an insulator, slowing heat transfer and providing valuable time for intervention. Line the interior with fire-resistant insulation rated for lithium-ion battery fires, typically achieving a minimum fire resistance rating of 1 hour.
Ensure adequate ventilation to prevent heat buildup during normal operation. Calculate the required airflow based on the battery bank's total power output and choose fans accordingly. Implement a temperature monitoring system with alarms to alert you to potential overheating.
Don't underestimate the importance of proper grounding. Ground the enclosure and all battery components to prevent electrical arcing, a potential ignition source. Regularly inspect the enclosure for damage, corrosion, or loose connections. Remember, a well-designed enclosure is a critical safety measure, not an afterthought. By prioritizing fire resistance, ventilation, and careful material selection, you can significantly mitigate the risks associated with lithium-ion battery banks.
Activate SBH Mobile Banking: A Step-by-Step Guide for Beginners
You may want to see also
Explore related products
Charging Setup: Set up a compatible charger with voltage/current limits to prevent overcharging
A lithium-ion battery bank’s lifespan hinges on precise charging control. Overcharging pushes cells beyond their voltage threshold, triggering thermal runaway and irreversible damage. To prevent this, a charger with programmable voltage and current limits is non-negotiable. Most lithium-ion cells charge optimally at 4.2V per cell, but exceeding this by even 0.1V can be catastrophic. For a 12V battery bank (typically 3 cells in series), the charger’s voltage limit must be set to 12.6V. Exceeding 4.2V per cell risks plating metallic lithium, a precursor to short circuits and fires.
Selecting the right charger involves more than voltage limits. Current control is equally critical. Lithium-ion batteries charge safely at 0.5C to 1C, where C represents the battery’s capacity in amp-hours (Ah). For a 100Ah battery bank, a charger delivering 50A to 100A is ideal. Exceeding 1C risks overheating and uneven charge distribution among cells. Smart chargers with CC/CV (constant current/constant voltage) modes automatically taper the current as the battery approaches full charge, ensuring safety without manual intervention.
Not all chargers are created equal. Avoid generic chargers lacking lithium-ion compatibility. Look for models with a "lithium" or "Li-ion" setting, which enforces the correct voltage and current profiles. DIY enthusiasts might opt for a bench power supply with adjustable limits, but this requires meticulous monitoring. Pre-built solutions like the Victron Blue Smart Charger or Renogy DC-DC Charger offer plug-and-play convenience, with built-in safeguards against overcharging and temperature spikes.
A common pitfall is neglecting the battery bank’s series-parallel configuration. For instance, a 24V bank with 6 cells in series requires a 25.2V charger limit (4.2V × 6). Parallel connections increase capacity but not voltage, so the charger’s voltage limit remains unchanged. Always verify the bank’s total voltage and capacity before configuring the charger. A miscalculation here can void warranties, damage cells, or worse.
Finally, integrate a Battery Management System (BMS) for an added layer of protection. A BMS monitors individual cell voltages, balances charge distribution, and disconnects the charger if limits are exceeded. While a compatible charger is essential, a BMS acts as a failsafe, compensating for human error or charger malfunctions. Together, these components ensure the battery bank charges safely, prolonging its life and minimizing fire risks.
Understanding Bank Runs: Calculating the Probability of Financial Panic
You may want to see also
Frequently asked questions
To build a lithium-ion battery bank, you will need lithium-ion batteries (matched in voltage and capacity), a Battery Management System (BMS) to monitor and balance cells, a fuse or circuit breaker for safety, wiring (preferably high-gauge copper), and a suitable enclosure to house the setup.
Use a Battery Management System (BMS) to monitor and balance the cells. The BMS ensures all batteries charge and discharge evenly, preventing overcharging or overdischarging of individual cells, which can extend the life of the battery bank.
Always use a BMS to prevent overcharging, overdischarging, and overheating. Install a fuse or circuit breaker to protect against short circuits. Ensure proper ventilation in the enclosure, avoid puncturing or damaging the batteries, and follow manufacturer guidelines for wiring and connections.
Yes, you can connect batteries in series to increase voltage and in parallel to increase capacity. However, ensure all batteries are identical in voltage, capacity, and chemistry. Use a BMS designed for the specific configuration to manage the combined bank effectively.
