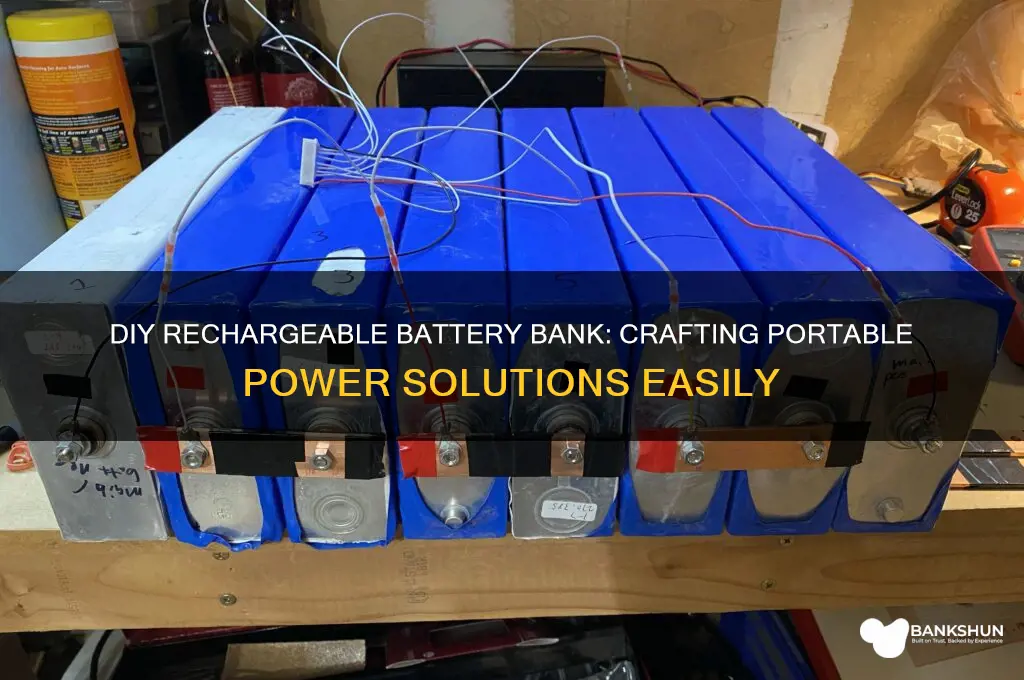

Creating a rechargeable small battery bank is a practical and eco-friendly solution for powering portable devices, offering convenience and sustainability. This project involves assembling a compact setup of rechargeable batteries, typically lithium-ion or lithium-polymer, connected in series or parallel to achieve the desired voltage and capacity. Essential components include a battery management system (BMS) to ensure safety by monitoring charge levels, temperature, and preventing overcharging or short circuits. Additionally, a charging circuit, protective casing, and output ports for connecting devices are crucial. By following safety guidelines and using quality components, a DIY rechargeable battery bank can provide reliable power for smartphones, cameras, or other small electronics, reducing reliance on disposable batteries and promoting energy efficiency.
| Characteristics | Values |
|---|---|
| Battery Type | Lithium-ion (18650, 21700) or Lithium Polymer (LiPo) |
| Capacity Range | 1,000mAh to 10,000mAh (depending on battery cells used) |
| Voltage | 3.7V (single cell) or 7.4V (2S), 11.1V (3S) for LiPo |
| Charging Method | USB-C, Micro-USB, or DC barrel jack with a charging module (e.g., TP4056) |
| Protection Circuit | Required for safety (overcharge, over-discharge, short circuit protection) |
| Enclosure Material | ABS plastic, aluminum, or 3D-printed case |
| Dimensions (Approx.) | 50mm x 50mm x 20mm (varies based on design) |
| Weight (Approx.) | 50g to 200g (depending on battery capacity and enclosure) |
| Output Ports | USB-A (5V/1A-2.4A), DC barrel jack, or custom connectors |
| Charging Time | 2-6 hours (depending on battery capacity and charger efficiency) |
| Cost (Approx.) | $10 to $50 (depending on components and battery quality) |
| DIY Difficulty Level | Intermediate (requires soldering and basic electronics knowledge) |
| Safety Considerations | Avoid short circuits, use proper ventilation, and monitor during charging |
| Applications | Portable devices, DIY projects, emergency power backup |
| Lifespan | 300-500 charge cycles (for Li-ion/LiPo batteries) |
| Regulation Compliance | Follow local regulations for battery safety and disposal |
Explore related products
What You'll Learn
- Battery Selection: Choose lithium-ion or lithium-polymer cells for high energy density and rechargeability
- Circuit Design: Include protection circuits for overcharge, over-discharge, and short-circuit prevention
- Enclosure Building: Use durable, non-conductive materials to house batteries and electronics safely
- Charging System: Integrate a USB or solar charging module for convenient power replenishment
- Power Output: Add USB ports or DC outputs for connecting and powering small devices efficiently
Battery Selection: Choose lithium-ion or lithium-polymer cells for high energy density and rechargeability
Lithium-ion (Li-ion) and lithium-polymer (LiPo) cells dominate portable power solutions due to their superior energy density, which packs more power into smaller, lighter packages. For a small battery bank, this means you can achieve longer runtimes without adding bulk, making them ideal for compact devices like smartphones, cameras, or DIY projects. While both chemistries share this advantage, their structural differences influence performance and safety, requiring careful consideration based on your application.
Analyzing the Trade-offs: Li-ion vs. LiPo
Li-ion cells typically use a rigid metal casing, offering robust protection but limiting shape flexibility. They excel in stability and longevity, often enduring 500–1,000 charge cycles under proper management. LiPo cells, encased in a soft polymer wrapper, allow for custom shapes and thinner designs, though they may be more susceptible to physical damage. LiPo batteries generally have a slightly shorter lifespan (300–500 cycles) but can deliver higher discharge rates, beneficial for power-hungry devices. For a small battery bank, LiPo’s form factor adaptability might outweigh its longevity trade-off if space constraints are critical.
Safety and Handling: A Non-Negotiable Priority
Both Li-ion and LiPo cells demand respect for their energy density, which, if mishandled, can lead to thermal runaway or combustion. Always integrate a Battery Management System (BMS) to monitor voltage, current, and temperature. For LiPo cells, avoid puncturing the pouch and maintain storage voltage at 3.8V per cell to prolong life. Li-ion cells require similar precautions but are less prone to swelling under stress. Use flame-retardant enclosures and ensure proper ventilation, especially if charging or discharging at high rates.
Practical Tips for Integration
When assembling your battery bank, calculate the total capacity (in mAh) and voltage (in V) based on your device’s requirements. For instance, connecting three 3.7V LiPo cells in series yields 11.1V, suitable for powering drones or RC cars. Always match cells with identical capacity and voltage to prevent imbalance. Solder connections carefully using nickel strips and avoid overheating the cells. For beginners, pre-made Li-ion 18650 packs offer a plug-and-play solution, though they sacrifice customization.
Selecting between Li-ion and LiPo hinges on your project’s priorities. Opt for Li-ion if durability and cycle life are paramount, such as in a portable charger for daily use. Choose LiPo when space and weight savings are critical, like in wearable tech or ultra-slim designs. Regardless of your choice, prioritize quality cells from reputable brands (e.g., Panasonic, LG, or Turnigy) and adhere to safety protocols to ensure reliability and longevity. With the right selection, your small battery bank will deliver efficient, rechargeable power tailored to your needs.
How to Successfully Claim PPI from HSBC Bank: A Step-by-Step Guide
You may want to see also
Explore related products
Circuit Design: Include protection circuits for overcharge, over-discharge, and short-circuit prevention
Protecting your rechargeable battery bank from overcharge, over-discharge, and short circuits is critical for safety, longevity, and performance. Lithium-ion batteries, commonly used in small battery banks, operate within a voltage range of 3.0V to 4.2V per cell. Exceeding these limits can lead to thermal runaway, leakage, or even explosion. To prevent overcharging, integrate a charge controller IC like the TP4056, which monitors the voltage and current during charging. This IC automatically stops the charging process when the battery reaches 4.2V, ensuring it doesn’t exceed this threshold. Pair this with a voltage detection circuit to halt discharge at 3.0V, preventing over-discharge, which can irreversibly damage the battery’s internal structure.
Short circuits pose an immediate threat, capable of draining the battery in seconds and generating heat that can melt components. Incorporate a fuse or polyswitch (PPTC) in series with the battery to interrupt the circuit if excessive current is detected. For added protection, use a MOSFET-based switch controlled by a microcontroller or dedicated protection IC. This setup allows the system to monitor current flow and disconnect the load or charging source if a short circuit is detected. For instance, the DW01 chip is a popular choice for integrating overcharge, over-discharge, and short-circuit protection into a single package, simplifying circuit design.
When designing the protection circuit, consider the current rating of your battery bank. A 5V, 2A battery bank requires components rated for at least 2A, with a safety margin of 20–30%. Use low-resistance MOSFETs (e.g., AO3400) to minimize power loss during normal operation. For over-discharge protection, a comparator circuit with a reference voltage of 3.0V can trigger the MOSFET to disconnect the load when the battery voltage drops below this level. Test the circuit under load to ensure it responds accurately and promptly.
Practical implementation involves PCB layout optimization to minimize trace resistance and ensure proper heat dissipation. Place protection components close to the battery terminals to reduce the risk of damage during a fault. Label critical components and include a reset mechanism for the protection circuit, allowing users to safely reconnect the battery after resolving an issue. For DIY projects, pre-assembled protection boards (e.g., 18650 battery protection modules) are available, offering a plug-and-play solution for those less experienced in circuit design.
In summary, a well-designed protection circuit is non-negotiable for a rechargeable battery bank. By combining charge controllers, voltage detectors, and current-limiting devices, you safeguard against the most common failure modes. Prioritize compatibility with your battery’s specifications and test rigorously to ensure reliability. This proactive approach not only extends the life of your battery bank but also mitigates risks, making your project safer and more efficient.
Easy Steps to Load Airtime Directly from Your Zenith Bank Account
You may want to see also
Explore related products
Enclosure Building: Use durable, non-conductive materials to house batteries and electronics safely
Selecting the right enclosure material is critical for safety and longevity in a rechargeable battery bank. Lithium-ion batteries, commonly used in DIY projects, operate at voltages up to 4.2V per cell and can reach temperatures exceeding 100°C during thermal runaway. Non-conductive materials like ABS plastic or polycarbonate prevent accidental short circuits, while their heat resistance mitigates fire risks. Avoid metals or conductive composites, which can act as bridges between terminals, leading to catastrophic failure.
Consider the enclosure’s form factor and environmental exposure. A battery bank for outdoor use requires IP65-rated enclosures to protect against dust and water ingress. For indoor applications, prioritize ventilation to dissipate heat—drill 3mm holes spaced 5cm apart along the sides, ensuring airflow without compromising structural integrity. Wall-mounted designs should use flame-retardant ABS (UL94 V-0 rated) to contain potential fires, while portable units benefit from impact-resistant polycarbonate to withstand drops from heights up to 1.5 meters.
Assembly techniques matter as much as material choice. Secure batteries with silicone padding to absorb vibrations and prevent movement, reducing the risk of internal damage. Use nylon screws and standoffs to fasten electronics, avoiding metal components that could conduct electricity. Apply a bead of high-temperature epoxy along seams to reinforce structural joints, ensuring the enclosure remains sealed under thermal stress. Test the build by simulating worst-case scenarios: drop tests, water exposure, and heat cycling to identify weaknesses before deployment.
Cost vs. performance trade-offs are inevitable. While 3D-printed PLA enclosures are affordable and customizable, they melt at temperatures above 60°C, making them unsuitable for high-drain applications. Pre-fabricated polycarbonate boxes cost 20-30% more but offer superior durability and thermal stability. For budget builds, repurpose non-conductive containers like PVC junction boxes, ensuring they meet minimum thickness requirements (3mm for structural integrity). Always prioritize safety over savings—a single thermal event can render cost-cutting measures irrelevant.
Finally, regulatory compliance ensures your battery bank meets safety standards. Adhere to UN 38.3 for lithium battery transportation and IEC 62133 for quality assurance. Label the enclosure with voltage, capacity, and polarity markings using weatherproof vinyl stickers. Include a fuse holder and voltage monitor within the enclosure to prevent overcharging or short circuits. While DIY projects offer flexibility, treating the build with professional rigor minimizes risks and extends the lifespan of your rechargeable battery bank.
Red Bank's Low-Speed Vehicle Regulations: What You Need to Know
You may want to see also
Explore related products
Charging System: Integrate a USB or solar charging module for convenient power replenishment
USB charging modules are the backbone of modern portable power solutions, offering a universal and efficient way to replenish your battery bank. These modules typically feature 5V input, aligning with standard USB power sources like wall adapters, power banks, or even car chargers. When integrating a USB charging module, ensure it includes overcharge and overcurrent protection to safeguard your battery cells. Opt for modules with a charging status indicator—LEDs or digital displays—to monitor the charging process. For a compact design, surface-mount modules are ideal, but through-hole variants offer easier soldering for beginners. Always match the module’s output voltage and current to your battery’s specifications; for instance, a single 18650 lithium-ion cell requires a 4.2V charge cutoff with a maximum current of 1A.
Solar charging modules provide an eco-friendly alternative, harnessing renewable energy to keep your battery bank topped up. These modules typically consist of a solar panel, a charge controller, and a connector to your battery bank. When selecting a solar panel, consider its wattage and voltage output—a 6V, 2W panel is sufficient for trickle-charging small battery banks, while larger projects may require 12V, 10W panels. The charge controller is critical; MPPT (Maximum Power Point Tracking) controllers are more efficient than PWM (Pulse Width Modulation) controllers, especially in low-light conditions. Ensure the controller’s voltage and current ratings align with your battery’s requirements. For instance, a 5V, 1A controller works well for a single-cell LiPo battery, while a 12V, 2A controller suits larger setups. Mount the solar panel in a location with maximum sunlight exposure, and use weatherproof connectors to protect against environmental damage.
Combining USB and solar charging modules creates a versatile system that adapts to various scenarios. For instance, a USB module ensures quick charging when grid power is available, while a solar module provides off-grid sustainability. To integrate both, use a dual-input charge controller that prioritizes USB power when connected but switches to solar when USB is unavailable. This setup is particularly useful for outdoor enthusiasts or emergency kits. When designing the circuit, include a diode on the solar input to prevent reverse current flow, which can drain your battery at night. Test the system under different conditions—USB-only, solar-only, and combined—to ensure seamless operation.
Practical implementation requires attention to detail and safety. Start by mapping out your circuit on a breadboard to verify compatibility between components. Use heat shrink tubing to insulate solder joints and prevent short circuits. If your battery bank includes multiple cells, consider adding a battery management system (BMS) to balance charging and prevent over-discharge. Label input and output ports clearly to avoid confusion, especially if the device will be used by others. For solar setups, angle the panel at a 30-degree tilt for optimal sunlight absorption in most latitudes. Finally, enclose the entire system in a durable, vented case to protect against physical damage and overheating. With these steps, your rechargeable battery bank will be both functional and reliable.
Mastering Bank Entries in Tally ERP9: A Step-by-Step Guide
You may want to see also
Explore related products
Power Output: Add USB ports or DC outputs for connecting and powering small devices efficiently
USB ports and DC outputs are the lifeblood of any small battery bank, transforming stored energy into usable power for your devices. Choosing the right type and number of outputs is crucial for both functionality and convenience.
A single USB-A port might suffice for basic charging needs, but consider the growing prevalence of USB-C, which offers faster charging speeds and wider compatibility with newer devices. For maximum versatility, incorporate both types. DC outputs, typically in the form of 5.5mm barrel jacks, cater to devices like LED lights, small fans, or DIY electronics projects that rely on direct current.
When selecting components, prioritize quality and safety. Opt for USB ports with built-in overcurrent and short-circuit protection to safeguard both the battery bank and connected devices. Look for DC jacks rated for the maximum current your battery bank can deliver. A 2A-rated jack might be sufficient for low-power devices, while a 5A jack could handle more demanding applications.
Remember, the total power output of your battery bank should not exceed the capacity of its internal battery and charging circuitry.
The placement and accessibility of these outputs are equally important. Strategically position ports for easy access, considering cable management and potential device size. Recessed ports can prevent accidental damage, while raised ports might be more convenient for frequent use. Labeling each port with its type and maximum output current is a thoughtful touch, eliminating guesswork for users.
For a polished look, consider using a waterproof enclosure with pre-cut holes for ports, ensuring durability and a professional finish.
Finally, don't underestimate the value of a power button or switch. This simple addition allows users to control when power is delivered, conserving battery life and preventing accidental discharge. A well-designed power output system, combining the right ports, safety features, and user-friendly design, transforms a basic battery bank into a versatile and reliable power source for a wide range of small devices.
Master Bank Reconciliation in QuickBooks: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You will need rechargeable batteries (e.g., 18650 lithium-ion), a battery holder or casing, a battery management system (BMS) for safety, a charging circuit or module, wires, a DC-DC step-up/step-down converter (if needed), and a USB or DC output port.
Use a battery management system (BMS) to prevent overcharging, overdischarging, and short circuits. Always match the BMS to the battery type and capacity. Avoid mixing old and new batteries, and ensure proper ventilation in the casing to prevent overheating.
No, not all rechargeable batteries are suitable. Lithium-ion (Li-ion) or lithium polymer (LiPo) batteries are commonly used due to their high energy density and rechargeability. Avoid using non-rechargeable batteries or mismatched battery types, as this can lead to safety hazards.
Multiply the capacity (mAh) of a single battery by the number of batteries in parallel to get the total capacity. For voltage, connect batteries in series (e.g., 3x 3.7V batteries = 11.1V). Ensure the output voltage matches the devices you intend to power.
