Jake Miller

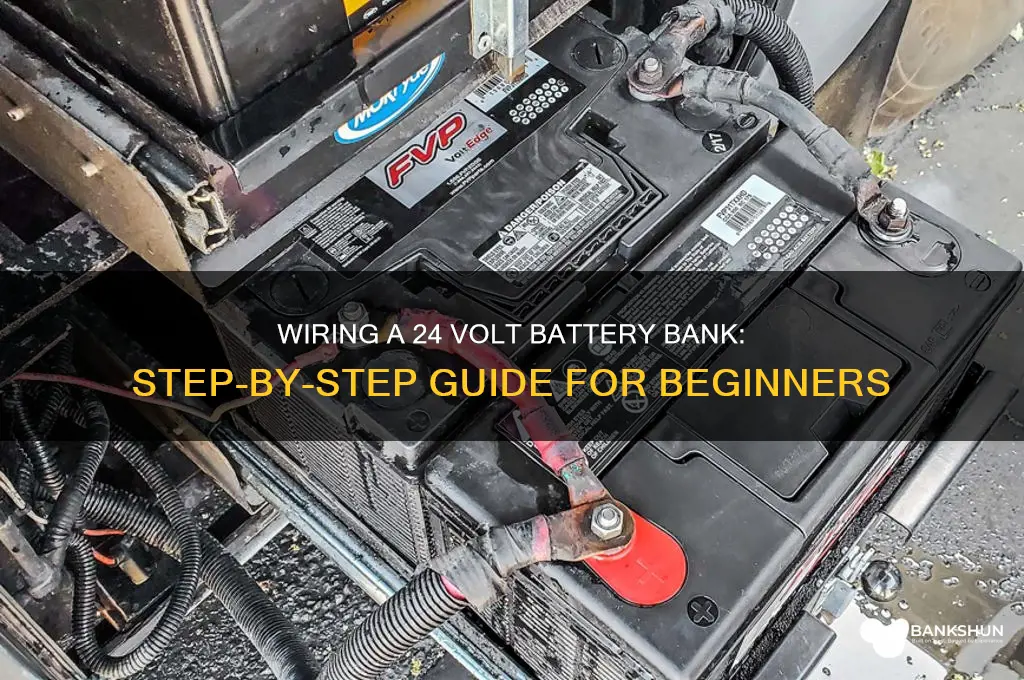

Wiring a 24-volt battery bank is a crucial step for powering various applications, such as RVs, solar systems, or off-grid setups, and requires careful planning to ensure safety and efficiency. To achieve a 24-volt system, two 12-volt batteries are typically connected in series, where the positive terminal of the first battery is linked to the negative terminal of the second, while the remaining positive and negative terminals serve as the output for the 24-volt circuit. Proper wiring involves using appropriately sized cables to handle the current load, secure connections to prevent voltage drop, and the inclusion of fuses or circuit breakers for protection. Additionally, understanding the battery chemistry and capacity is essential to avoid overloading or damaging the batteries. Following these guidelines ensures a reliable and long-lasting 24-volt battery bank for your specific needs.
Explore related products
What You'll Learn
- Series vs. Parallel Connections: Understand wiring configurations for desired voltage and capacity
- Battery Bank Sizing: Calculate capacity based on energy needs and usage
- Safety Precautions: Use proper tools, insulation, and protective gear to prevent hazards
- Wiring Diagrams: Follow step-by-step visual guides for accurate 24V connections
- Testing and Maintenance: Verify voltage, inspect connections, and monitor performance regularly
Series vs. Parallel Connections: Understand wiring configurations for desired voltage and capacity
Wiring batteries in series or parallel fundamentally alters the voltage and capacity of your battery bank. Series connections increase voltage while maintaining capacity, whereas parallel connections boost capacity while keeping voltage constant. For a 24-volt system, understanding this distinction is critical. If you wire two 12-volt batteries in series, their voltages add up to 24 volts, but the total amp-hour (Ah) capacity remains the same as a single battery. Conversely, wiring two 12-volt batteries in parallel doubles the amp-hour capacity while keeping the voltage at 12 volts, which won’t meet the 24-volt requirement.
To achieve a 24-volt battery bank, the most common approach is to wire two 12-volt batteries in series. Connect the positive terminal of the first battery to the negative terminal of the second battery, then use the remaining positive and negative terminals as the bank’s output. For example, if you have two 100Ah, 12-volt batteries wired in series, the result is a 24-volt, 100Ah battery bank. This configuration is ideal for applications like RVs, solar systems, or electric motors that require higher voltage. Always ensure the batteries are of the same voltage and capacity to avoid imbalances that can shorten battery life.
Parallel connections are less common for 24-volt systems but can be useful for increasing capacity at a fixed voltage. For instance, if you wire two pairs of 12-volt batteries in series (creating two 24-volt batteries) and then connect these pairs in parallel, you double the amp-hour capacity while maintaining 24 volts. This setup is more complex and requires careful wiring to ensure all batteries charge and discharge evenly. Use a battery management system (BMS) or charge controller to monitor and balance the load, especially in larger banks.
A critical caution when wiring in series is the risk of overvoltage if batteries are mismatched or degrade unevenly. Always use batteries of the same type, age, and capacity to prevent one battery from overworking or underperforming. In parallel configurations, ensure all batteries are at the same state of charge before connecting to avoid reverse current flow, which can damage cells. Regularly inspect connections for corrosion and tightness, as loose terminals can cause voltage drops or overheating.
In summary, series wiring is the go-to method for achieving a 24-volt battery bank, while parallel wiring is reserved for increasing capacity at a fixed voltage. Both configurations require precision and planning to ensure safety and efficiency. Whether you’re powering a golf cart or a renewable energy system, understanding these wiring principles will help you build a reliable and long-lasting battery bank tailored to your needs.
Safely Remove Bank Details from Robinhood: A Step-by-Step Guide
