Brandon Lee

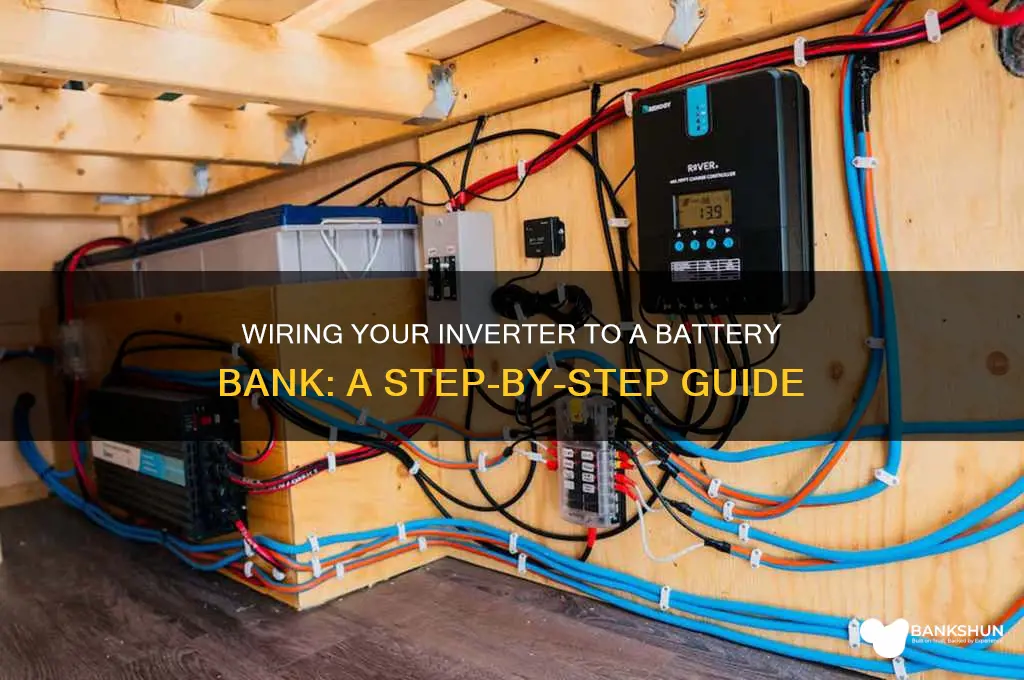

Wiring an inverter to a battery bank is a critical step in setting up an off-grid or backup power system, ensuring efficient energy conversion from stored DC power to usable AC power. This process involves connecting the inverter’s DC input terminals to the battery bank’s positive and negative terminals using appropriately sized cables to handle the system’s current requirements. Proper wiring includes selecting the correct gauge wire, installing fuses or circuit breakers for safety, and ensuring secure, corrosion-resistant connections. Additionally, it’s essential to follow the manufacturer’s guidelines and adhere to electrical codes to prevent overheating, short circuits, or damage to the system. Understanding the battery bank’s voltage and the inverter’s compatibility is also crucial for optimal performance and longevity.
| Characteristics | Values |
|---|---|
| Battery Bank Voltage | Match inverter input voltage (e.g., 12V, 24V, 48V) |
| Battery Type | Lead-acid, Lithium-ion, AGM, or Gel (ensure compatibility with inverter) |
| Inverter Type | Pure Sine Wave or Modified Sine Wave (Pure Sine Wave recommended) |
| Wiring Gauge | Use appropriate gauge based on current draw (e.g., 4 AWG for high current) |
| Fuse/Breaker Size | Rated for 125-150% of inverter continuous current rating |
| Battery Bank Capacity | Calculated based on load and runtime requirements (Ah or kWh) |
| Connection Method | Series or Parallel (depends on desired voltage and capacity) |
| Grounding | Ground both inverter and battery bank to prevent electrical hazards |
| Charge Controller | Required if using solar or other charging sources |
| Battery Management System (BMS) | Essential for Lithium-ion batteries to monitor and balance cells |
| Temperature Considerations | Ensure proper ventilation to prevent overheating |
| Safety Disconnect | Install a kill switch or disconnect for emergency shutdown |
| Cable Length | Keep cables as short as possible to minimize voltage drop |
| Polarity | Ensure correct polarity (positive to positive, negative to negative) |
| Load Calculation | Determine total wattage of connected devices to size inverter correctly |
| Maintenance | Regularly inspect connections, clean terminals, and monitor battery health |
| Compliance | Follow local electrical codes and standards |
Explore related products
What You'll Learn
- Battery Bank Configuration: Series vs. parallel connections for desired voltage and capacity
- Inverter Sizing: Match inverter capacity to battery bank and load requirements
- Wiring Gauge Selection: Choose correct wire size to minimize power loss and ensure safety
- Fuse and Breaker Installation: Protect system with appropriately rated fuses and circuit breakers
- Connection Order: Proper sequence for connecting inverter to battery bank and load
Battery Bank Configuration: Series vs. parallel connections for desired voltage and capacity
Connecting batteries in series or parallel is a fundamental decision when designing a battery bank for an inverter system. Series connections increase voltage while keeping capacity constant, essential for matching the inverter’s input requirements. For example, wiring two 12V, 100Ah batteries in series results in a 24V, 100Ah bank, doubling the voltage while maintaining the same amp-hour rating. This configuration is ideal for inverters requiring higher voltage inputs, such as 24V or 48V systems, which are more efficient for larger loads.
In contrast, parallel connections increase capacity while maintaining voltage, suitable for systems needing extended runtime. Connecting two 12V, 100Ah batteries in parallel yields a 12V, 200Ah bank, doubling the capacity. This setup is advantageous for applications with lower voltage inverters (e.g., 12V) but higher energy demands, such as off-grid homes or backup systems. However, parallel connections require careful balancing to prevent uneven charging, which can shorten battery life.
Choosing between series and parallel configurations depends on the inverter’s voltage requirements and the desired system capacity. For instance, a 48V inverter powering a high-efficiency appliance might use four 12V batteries in series, while a 12V inverter for a small cabin could utilize two 12V batteries in parallel for longer runtime. Always consult the inverter’s specifications to ensure compatibility with the battery bank’s voltage and capacity.
Practical tips include using batteries of the same type, age, and capacity to avoid imbalances in series or parallel setups. For series connections, ensure all batteries are fully charged before wiring to prevent overcharging weaker cells. In parallel configurations, consider adding a battery balancer or using smart chargers to maintain equal charge levels. Proper wiring, such as using thick, low-resistance cables, minimizes energy loss and ensures safety.
In summary, the choice between series and parallel connections hinges on the inverter’s voltage needs and the system’s energy demands. Series increases voltage for higher-efficiency systems, while parallel boosts capacity for longer runtime. By understanding these configurations and applying practical precautions, you can design a battery bank that optimally powers your inverter system.
Exploring ConnectOne Bank's Branch Network: Locations and Accessibility
You may want to see also
Explore related products
Inverter Sizing: Match inverter capacity to battery bank and load requirements
Selecting the right inverter size is critical to ensuring your off-grid or backup power system operates efficiently and reliably. An inverter that’s too small will fail to meet peak load demands, while one that’s oversized wastes energy and increases costs. Start by calculating your total load requirements—add up the wattage of all devices you intend to power simultaneously. For example, if you plan to run a 500W refrigerator, 300W lighting, and a 1,000W microwave, your total load is 1,800W. Always choose an inverter with a continuous power rating that exceeds this total by at least 20% to account for inefficiencies and surge demands.
Battery bank capacity must also align with inverter size to avoid over-discharging, which shortens battery life. A common rule of thumb is to ensure your battery bank can supply the inverter’s rated power for at least 1–2 hours. For instance, a 2,000W inverter paired with a 24V battery bank should have a capacity of at least 100Ah (2,000W ÷ 24V = 83.3A; 83.3A × 1 hour = 83.3Ah, rounded up to 100Ah). Use a battery bank calculator to fine-tune this based on your specific usage patterns and desired autonomy.
Inverter sizing isn’t just about watts—consider surge capacity, especially for inductive loads like motors or compressors. These devices often require 2–3 times their running wattage during startup. For example, a well pump rated at 1,500W running may need 3,000W for a few seconds to start. Ensure your inverter’s surge rating meets these peak demands to prevent tripping or damage.
Finally, factor in future expansion. If you anticipate adding more loads or upgrading your system, opt for an inverter with a higher capacity than your current needs. Modular inverters, which allow you to parallel multiple units, offer scalability without overcommitting upfront. Always consult manufacturer specifications and seek professional advice for complex setups to ensure compatibility and safety.
Go Paperless with Iberia Bank: A Step-by-Step Guide
You may want to see also
Explore related products
Wiring Gauge Selection: Choose correct wire size to minimize power loss and ensure safety
Selecting the right wire gauge is critical when connecting an inverter to a battery bank, as it directly impacts efficiency and safety. Thicker wires have lower resistance, reducing power loss over distance. For instance, a 2/0 gauge wire can handle up to 200 amps over 10 feet with minimal voltage drop, while a 4 gauge wire under the same load would lose significantly more energy. Use an online voltage drop calculator to determine the optimal gauge based on your system’s amperage, wire length, and acceptable voltage loss (typically 3% or less).
The National Electrical Code (NEC) provides guidelines for wire sizing based on current draw, but these are minimums. For inverters, oversizing the wire gauge by one or two steps is prudent, especially in high-demand systems. For example, if your inverter draws 150 amps, a 2 gauge wire meets code, but a 1/0 gauge wire ensures lower resistance and better performance. Always consult the inverter’s manual for manufacturer recommendations, as some systems may require specific gauges for warranty compliance.
Safety is another critical factor in wire gauge selection. Undersized wires can overheat, melt insulation, or even start fires under high loads. For instance, a 10-foot run of 8 gauge wire carrying 50 amps is a fire hazard, as it exceeds the wire’s safe current capacity. Use a wire ampacity chart to match the gauge to the maximum expected current, factoring in temperature and installation conditions. If wires pass through tight spaces or near heat sources, choose a higher gauge to compensate for increased resistance.
Practical tips can simplify the selection process. First, measure the distance between the battery bank and inverter accurately, including bends and turns, as these add to the total wire length. Second, consider future upgrades—if you plan to expand your system, size the wires for the maximum anticipated load now. Finally, invest in high-quality, stranded copper wire for flexibility and durability. Stranded wire is easier to work with and less prone to breakage than solid core wire, making it ideal for battery bank installations.
In summary, wiring gauge selection is not a one-size-fits-all decision. It requires careful consideration of current draw, wire length, safety standards, and future scalability. By choosing the correct gauge, you minimize power loss, ensure safe operation, and optimize the performance of your inverter and battery bank system. Treat this step as an investment in your system’s longevity and reliability.
Financial Advisors: Are They Exclusive to Banks?
You may want to see also
Explore related products
Fuse and Breaker Installation: Protect system with appropriately rated fuses and circuit breakers
Fuses and circuit breakers are the unsung heroes of any inverter-to-battery bank setup, silently guarding against overcurrent events that could damage components or spark fires. Their role is straightforward: interrupt excessive current flow before it wreaks havoc. But selecting the right ones requires precision. Start by matching the fuse or breaker rating to the inverter’s continuous current draw, typically found in its specifications. For instance, a 2000-watt inverter drawing 167 amps at 12 volts needs a fuse or breaker rated at least 175 amps to handle peak loads without nuisance tripping. Always err on the side of caution—a slightly higher rating is safer than one that’s too low.
Installation placement is equally critical. Position the fuse or breaker as close to the battery bank as possible, ensuring it protects the entire circuit between the batteries and the inverter. This setup isolates the fault point, preventing damage to wiring or the inverter itself. Use high-quality marine-grade fuses or breakers for reliability, especially in mobile or off-grid systems where vibrations and environmental factors are concerns. Avoid the temptation to bypass these devices—they’re not optional. A single overcurrent event can render your entire system inoperable or worse, pose a safety hazard.
Consider the type of protection needed for your specific application. Fuses are fail-safe and cost-effective, ideal for high-current applications where replacement after a fault is acceptable. Circuit breakers, on the other hand, reset automatically, making them convenient for systems requiring frequent cycling or where accessibility is limited. For example, a solar-powered cabin might benefit from breakers due to their reusability, while a marine system could prioritize fuses for their compactness and reliability in harsh conditions.
A common oversight is neglecting to size the wire gauge correctly in relation to the fuse or breaker. Undersized wiring can overheat and melt before the protective device trips, defeating its purpose. Use the National Electrical Code (NEC) or a wire size calculator to ensure compatibility. For instance, a 2/0 AWG cable is suitable for a 175-amp circuit, while smaller gauges risk overheating. Always inspect connections for tightness and corrosion, as poor contact can lead to resistance and heat buildup, bypassing the protection mechanism entirely.
Finally, test your system under load to verify proper functionality. Simulate a short circuit or overload to ensure the fuse blows or the breaker trips as intended. This step is often skipped but is crucial for peace of mind. Remember, fuses and breakers are not just regulatory requirements—they’re your first line of defense against catastrophic failure. Treat them with the same care and attention as any other critical component in your inverter-to-battery bank setup.
Recover Your Axis Bank ATM PIN: A Step-by-Step Guide
You may want to see also
Explore related products
Connection Order: Proper sequence for connecting inverter to battery bank and load
Connecting an inverter to a battery bank and load requires a precise sequence to ensure safety, efficiency, and longevity of the system. Begin by turning off all power sources, including the inverter, battery bank, and load devices. This step is non-negotiable, as it prevents electrical hazards and potential damage to components during the connection process. Failure to do so can result in short circuits, blown fuses, or even fires.
The first physical connection should always be between the battery bank and the inverter. Use appropriately sized cables to match the system’s amperage requirements, typically 2/0 AWG for systems up to 400 amps or 4/0 AWG for higher capacities. Connect the positive terminal of the battery bank to the inverter’s positive input terminal, followed by the negative terminal. Tighten all connections securely but avoid over-tightening, which can damage terminals. This step establishes the power supply to the inverter while keeping the system isolated from the load.
Next, connect the inverter to the load. Ensure the inverter is still powered off at this stage. Attach the output cables from the inverter to the load devices, such as household appliances or a distribution panel. Double-check that all connections are secure and polarized correctly. This sequence ensures that the inverter is fully integrated into the system before any power is applied, reducing the risk of surges or overloads when the system is activated.
Finally, power on the inverter according to the manufacturer’s instructions. Most inverters have a dedicated switch or button for this purpose. Once activated, monitor the system for proper operation, checking for unusual noises, overheating, or voltage fluctuations. If everything functions as expected, connect the load devices one at a time, observing the inverter’s response to ensure it handles the demand without strain. This methodical approach minimizes stress on the inverter and battery bank, optimizing performance and extending their lifespan.
Big Banks in the S&P 500: Who Made the Cut?
You may want to see also
Frequently asked questions
Use wire sized according to the inverter’s amperage rating and the distance between the battery bank and inverter. Typically, 2/0 or 4/0 gauge wire is used for high-capacity systems. Always consult the inverter manual or a wire size chart for accurate sizing.
Connect the positive (+) terminal of the inverter to the positive (+) terminal of the battery bank and the negative (-) terminal to the negative (-) terminal. Double-check connections to avoid reverse polarity, which can damage the system.
Yes, install a fuse or circuit breaker on the positive wire between the battery bank and inverter. This protects the system from overcurrent and short circuits. The fuse rating should match the inverter’s continuous current rating.
You can connect the inverter directly to the battery bank, but it’s recommended to include a battery disconnect switch or isolator for safety. Additionally, a shunt or battery monitor can help track power usage and battery state of charge.
Minimize voltage drop by using appropriately sized wire, keeping wire lengths as short as possible, and ensuring tight, clean connections. Voltage drop calculators can help determine the optimal wire size for your setup.
