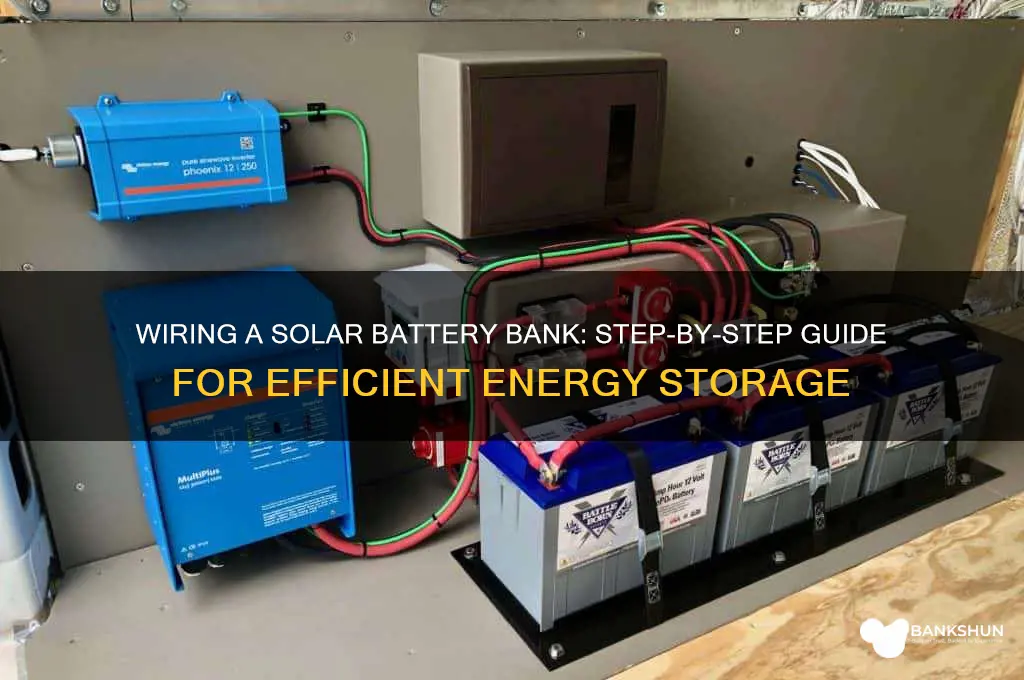

Wiring a solar battery bank is a critical step in creating an efficient and reliable off-grid or backup power system. This process involves connecting multiple batteries in series or parallel to achieve the desired voltage and capacity, while ensuring compatibility with your solar charge controller and inverter. Proper wiring not only maximizes energy storage but also enhances safety by preventing overcharging, short circuits, and other potential hazards. Understanding the basics of battery types, voltage requirements, and wiring configurations is essential to optimize performance and longevity. Whether you're building a small residential setup or a larger commercial system, following best practices in wiring will ensure your solar battery bank operates seamlessly and sustainably.
Explore related products
What You'll Learn
- Battery Bank Sizing: Calculate energy needs, determine battery capacity, and choose the right battery type
- Series vs. Parallel Wiring: Understand wiring configurations for voltage and capacity optimization
- Safety Precautions: Use proper tools, wear protective gear, and follow electrical safety guidelines
- Connecting Batteries: Securely link batteries using appropriate cables and connectors for efficient power flow
- Testing and Maintenance: Verify connections, monitor performance, and perform regular maintenance for longevity
Battery Bank Sizing: Calculate energy needs, determine battery capacity, and choose the right battery type
Sizing a battery bank correctly is the linchpin of a reliable solar power system. Start by calculating your daily energy consumption in kilowatt-hours (kWh). Audit your appliances: a refrigerator might use 1–2 kWh/day, while LED lighting adds 0.1–0.5 kWh/day. Sum these values, then multiply by 1.5 to account for inefficiencies and future expansion. For instance, a household using 5 kWh/day would target a battery bank capable of storing 7.5 kWh. This step ensures your system meets demand without overspending on excess capacity.
Once energy needs are clear, determine battery capacity by factoring in depth of discharge (DoD) and days of autonomy. Most lead-acid batteries allow a 50% DoD, while lithium-ion batteries permit 80–90%. For a 7.5 kWh requirement with 50% DoD, you’d need a 15 kWh lead-acid bank. If planning for 3 days of autonomy (cloudy days without solar input), triple the capacity to 45 kWh. Use the formula: *Total Capacity = (Daily Energy Needs × Autonomy Days) / DoD*. This calculation balances reliability with cost, preventing over-reliance on grid backup.
Battery type selection hinges on performance, lifespan, and budget. Lead-acid batteries are affordable but require maintenance and have shorter lifespans (3–5 years). Lithium-ion batteries, though pricier, offer higher efficiency, longer lifespans (10+ years), and deeper discharge capabilities. For off-grid systems, lithium-ion is often the better long-term investment. Consider ambient temperature too: lithium-ion performs well in cold climates, while lead-acid struggles below freezing. Match the battery chemistry to your climate and usage patterns for optimal results.
Practical tips streamline the sizing process. Use online calculators or spreadsheets to model scenarios, adjusting for seasonal variations in sunlight. If your energy needs fluctuate, prioritize modular systems that allow adding batteries later. Always include a safety margin of 20–30% to accommodate unexpected spikes in usage. For example, a 10 kWh calculated need should be rounded up to a 12–13 kWh bank. This approach ensures resilience without unnecessary expense, making your solar battery bank both efficient and future-proof.
How Banks' Practices Contributed to GM's Bankruptcy Crisis
You may want to see also
Explore related products
Series vs. Parallel Wiring: Understand wiring configurations for voltage and capacity optimization
Wiring solar batteries in series or parallel fundamentally alters the voltage and capacity of your battery bank, directly impacting system performance. Series wiring connects the positive terminal of one battery to the negative terminal of the next, multiplying their voltages while keeping capacity constant. For example, two 12V, 100Ah batteries wired in series produce 24V at 100Ah. This configuration suits inverters or charge controllers requiring higher voltage inputs, but it demands precise battery matching to prevent imbalances that can shorten lifespan.
Parallel wiring, in contrast, connects all positive terminals together and all negative terminals together, maintaining the voltage of a single battery while adding their capacities. Two 12V, 100Ah batteries wired in parallel still output 12V but increase capacity to 200Ah. This setup is ideal for low-voltage, high-capacity applications like off-grid cabins or RVs. However, it requires thicker cables to handle higher currents and careful monitoring to avoid overcharging weaker batteries.
Choosing between series and parallel wiring depends on your system’s voltage requirements and load demands. For instance, a 24V inverter paired with a 24V solar charge controller necessitates series wiring, while a 12V system powering energy-intensive devices benefits from parallel wiring for extended runtime. Hybrid configurations, combining series and parallel connections, offer both voltage and capacity increases but require meticulous planning to balance the bank.
Practical tips include using batteries of the same age, type, and capacity to minimize mismatches. Always fuse each battery in a series string to protect against short circuits, and install a battery management system (BMS) for lithium-ion setups to monitor cell voltages. Regularly inspect connections for corrosion and ensure proper ventilation to prevent overheating. By understanding these wiring configurations, you can optimize your solar battery bank for efficiency, safety, and longevity.
Understanding Bank Maintenance Fees and Their Application
You may want to see also
Explore related products
Safety Precautions: Use proper tools, wear protective gear, and follow electrical safety guidelines
Working with solar battery banks involves handling high-voltage electricity, making safety precautions non-negotiable. Always use insulated tools designed for electrical work, such as voltage testers, wire strippers, and screwdrivers with rubber grips. Standard tools can conduct electricity, increasing the risk of shocks or short circuits. For instance, a metal screwdriver without insulation can become a conduit for current, turning a routine task into a hazardous situation. Investing in the right tools isn’t just a recommendation—it’s a critical step in preventing accidents.
Protective gear acts as your last line of defense against electrical hazards. Wear safety goggles to shield your eyes from sparks or debris, and insulated gloves to reduce the risk of electric shock. Flame-resistant clothing is also advisable, especially when working near batteries that could leak corrosive acids or ignite under extreme conditions. For example, a loose wire sparking near a battery could cause a fire, and flame-resistant gear can provide crucial seconds to react. Skipping protective gear might save time, but it exponentially increases the risk of injury.
Electrical safety guidelines are the backbone of any battery bank installation. Always disconnect the system from the power source before beginning work, and verify the absence of voltage using a multimeter. Follow the National Electrical Code (NEC) or local regulations for wiring and grounding to ensure compliance and safety. For instance, improper grounding can lead to electrical fires or equipment damage. Similarly, overloading circuits by exceeding amperage ratings can cause overheating. Adhering to these guidelines isn’t just about legality—it’s about safeguarding your system and yourself.
A comparative analysis of safety practices reveals that professionals prioritize preparation over haste. Amateurs often overlook steps like labeling wires or using torque wrenches for secure connections, leading to loose terminals or misidentified circuits. In contrast, experienced installers methodically plan each step, ensuring every connection is tight and every component is correctly positioned. For example, a loose battery terminal can cause arcing, which generates heat and poses a fire risk. By adopting a meticulous approach, you minimize errors and maximize safety.
Finally, consider the long-term implications of neglecting safety precautions. A single oversight, like using the wrong fuse rating, can lead to catastrophic failures, such as battery explosions or system-wide damage. For instance, a 100-amp fuse in a system rated for 50 amps can melt wiring and ignite surrounding materials. The cost of replacing damaged equipment or repairing injuries far outweighs the effort of following safety protocols. Treat safety as an integral part of the process, not an optional add-on, to ensure your solar battery bank operates efficiently and securely for years to come.
Exporting Test Bank to Excel: A Step-by-Step Guide for Educators
You may want to see also
Explore related products
Connecting Batteries: Securely link batteries using appropriate cables and connectors for efficient power flow
Efficient power flow in a solar battery bank hinges on secure, low-resistance connections between batteries. Use cables with sufficient gauge to handle the expected current—typically 2/0 (AWG) for systems up to 400 amps, or 4/0 for higher demands. Undersized cables increase resistance, leading to energy loss as heat and reduced system efficiency. Always match cable size to your system’s inverter and charge controller specifications, ensuring compatibility with the battery bank’s total capacity.
Connectors play a critical role in maintaining reliable connections. Opt for corrosion-resistant materials like copper or tinned copper, and use torque wrenches to tighten terminals to manufacturer-recommended specs (usually 12–15 ft-lbs for M8 bolts). Poorly secured connections can cause arcing, voltage drops, or even fires. For series connections, join the positive terminal of one battery to the negative terminal of the next using battery interconnect cables. For parallel setups, link all positives and all negatives together, ensuring equal voltage distribution across the bank.
Safety must guide every step. Always disconnect the battery bank from the charge controller and inverter before wiring. Insulate exposed terminals with heat-shrink tubing or electrical tape to prevent short circuits. Label cables clearly to avoid confusion during maintenance or expansion. If working with high-voltage systems (over 50V), wear insulated gloves and use tools with insulated handles to minimize shock risk.
A practical tip: Test connections with a multimeter to verify continuity and voltage before re-energizing the system. Look for readings within 0.1V of the expected value across all batteries in a string. Discrepancies may indicate loose connections or damaged cables, which should be addressed immediately. Regularly inspect connections for signs of corrosion, melting, or looseness, especially in high-humidity environments or systems subjected to vibration.
In summary, secure battery connections are non-negotiable for a solar battery bank’s performance and safety. Invest in quality cables, connectors, and tools, and follow precise wiring protocols to ensure efficient power flow. Neglecting these details can void warranties, damage equipment, or create hazards—making this step as critical as the batteries themselves.
The Lifespan of Bank Notes: How Long Do They Circulate?
You may want to see also
Explore related products
Testing and Maintenance: Verify connections, monitor performance, and perform regular maintenance for longevity
Loose connections in a solar battery bank can lead to inefficiency, overheating, or even failure. To verify connections, start by turning off the system and using a multimeter to check for continuity between terminals. Ensure all wires are securely tightened, and look for signs of corrosion or fraying. Apply a thin layer of dielectric grease to terminals to prevent oxidation, especially in humid environments. Regularly inspect the battery bank’s wiring diagram to confirm all components are connected as intended, and replace any damaged cables immediately.
Monitoring performance is critical to identifying issues before they escalate. Install a battery monitor or use a charge controller with logging capabilities to track voltage, current, and state of charge daily. Compare these readings to manufacturer specifications to ensure the system operates within optimal ranges. For example, a 12V battery bank should typically read between 11.8V and 14.4V during discharge and charge cycles, respectively. If you notice consistent deviations, investigate potential causes such as shading on solar panels, faulty components, or improper load management.
Regular maintenance extends the lifespan of your solar battery bank. Clean battery terminals every six months with a mixture of baking soda and water to remove residue, then rinse with distilled water and dry thoroughly. Inspect batteries for swelling, leaks, or cracks, and replace any that show signs of degradation. For flooded lead-acid batteries, check electrolyte levels monthly and top up with distilled water as needed, ensuring plates remain submerged. Lithium-ion batteries require less hands-on maintenance but should be kept in a temperature-controlled environment to prevent thermal stress.
A proactive approach to testing and maintenance not only ensures reliability but also maximizes return on investment. Schedule quarterly system checks to coincide with seasonal changes, as temperature fluctuations can impact performance. Keep a maintenance log to track inspections, repairs, and performance trends over time. By staying vigilant and addressing minor issues promptly, you can avoid costly downtime and ensure your solar battery bank operates efficiently for years to come.
Mastering Bank Escape Level 4: Tips and Tricks to Solve It
You may want to see also
Frequently asked questions
The first step is to determine your system’s voltage and capacity requirements, then select compatible batteries (e.g., 12V, 24V, or 48V) and ensure they are designed for renewable energy applications.
To connect batteries in series, link the positive terminal of one battery to the negative terminal of the next to increase voltage (e.g., two 12V batteries = 24V). To connect in parallel, link all positive terminals together and all negative terminals together to increase capacity (e.g., two 100Ah batteries = 200Ah).
Use high-quality, solar-rated, stranded copper wire with sufficient gauge to handle the current. For most systems, 2/0 (2 AWG) or 4/0 (4 AWG) wire is recommended to minimize voltage drop and ensure safety.
Yes, a combiner box or bus bars are essential for organizing and securing battery connections, especially in larger systems. They simplify wiring, improve safety, and make it easier to add or remove batteries.
Always turn off the system before wiring, use insulated tools, and wear protective gear. Install fuses or circuit breakers on positive terminals, ensure proper ventilation to prevent hydrogen gas buildup, and follow local electrical codes and manufacturer guidelines.
