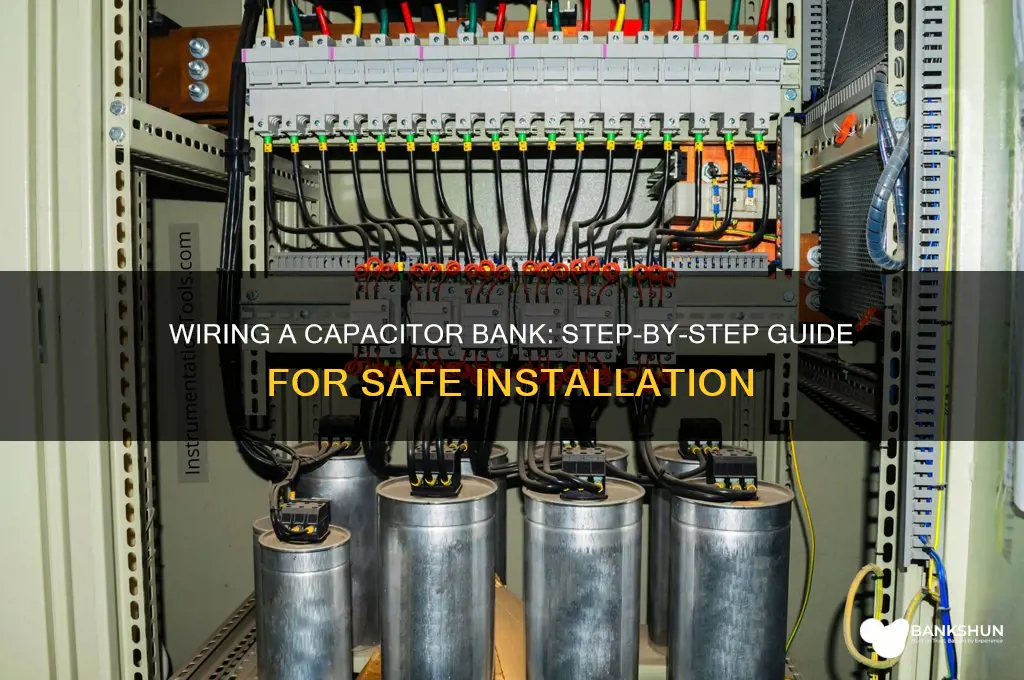

Wiring up a capacitor bank is a critical process that requires careful planning and execution to ensure safety, efficiency, and reliability. A capacitor bank, typically used in applications like power factor correction, motor starting, or energy storage, consists of multiple capacitors connected in series or parallel to achieve the desired voltage and capacitance ratings. Before beginning, it is essential to understand the specific requirements of your system, including voltage levels, capacitance values, and the type of capacitors being used. Safety precautions, such as discharging capacitors before handling and using appropriate insulation, are paramount to prevent electrical hazards. Proper wiring involves selecting the correct gauge of wire, ensuring secure connections, and following a clear schematic to avoid short circuits or overheating. Additionally, incorporating protective devices like fuses or circuit breakers can safeguard the system from overcurrent conditions. Whether for industrial, automotive, or hobbyist projects, mastering the process of wiring a capacitor bank is key to optimizing performance and maintaining system integrity.
| Characteristics | Values |
|---|---|
| Purpose | To store electrical energy, filter noise, or stabilize voltage in circuits. |
| Components Needed | Capacitors, bus bars, wiring, fuses, disconnect switch, mounting hardware. |
| Capacitor Type | Electrolytic, film, or ceramic capacitors (depending on application). |
| Capacitance Range | Typically 100 µF to 1000 µF per capacitor (varies by application). |
| Voltage Rating | Must exceed the system voltage (e.g., 450V for 3-phase systems). |
| Wiring Configuration | Series or parallel (parallel is most common for higher capacitance). |
| Safety Precautions | Discharge capacitors before handling, use insulated tools, wear PPE. |
| Mounting | Secure capacitors to a non-conductive panel or frame. |
| Fusing | Install fuses to protect against short circuits. |
| Disconnect Switch | Include a switch to isolate the capacitor bank for maintenance. |
| Cooling | Ensure adequate ventilation to prevent overheating. |
| Polarity | Observe polarity for electrolytic capacitors (positive terminal marked). |
| ESL/ESR Considerations | Minimize Equivalent Series Inductance (ESL) and Resistance (ESR). |
| Application Examples | Motor start/run, power factor correction, audio equipment, flash photography. |
| Testing | Use a multimeter to check capacitance and voltage before installation. |
| Maintenance | Periodically inspect for leaks, bulging, or damage. |
| Regulations | Comply with local electrical codes and standards (e.g., NEC, IEC). |
Explore related products
What You'll Learn
- Capacitor Selection: Choose capacitors based on voltage rating, capacitance, and type (e.g., electrolytic, film)
- Series/Parallel Configuration: Determine wiring for desired voltage/capacitance using series or parallel connections
- Safety Precautions: Use insulation, discharge resistors, and avoid short circuits to prevent hazards
- Wiring Connections: Secure terminals, solder joints, or crimp connectors for reliable electrical conductivity
- Testing & Verification: Check continuity, polarity, and functionality before integrating into the circuit
Capacitor Selection: Choose capacitors based on voltage rating, capacitance, and type (e.g., electrolytic, film)
Selecting the right capacitors for your bank is a critical step that hinges on three key parameters: voltage rating, capacitance, and type. Voltage rating must exceed the maximum voltage in your circuit to prevent failure. For instance, if your system operates at 400V, choose capacitors rated at least 450V to account for spikes. Underestimating this can lead to catastrophic failure, so always err on the side of caution.
Capacitance determines the energy storage capacity of your bank. Calculate the total capacitance required based on your application—whether it’s smoothing power supply ripple or delivering high-current pulses. For example, a motor start capacitor might need 100µF, while a flash photography setup could require 1000µF or more. Parallel connections increase total capacitance, so plan accordingly if your project demands higher values than a single capacitor can provide.
Type of capacitor significantly impacts performance and longevity. Electrolytic capacitors offer high capacitance in a compact size but are polarized and prone to leakage over time. They’re ideal for applications requiring large capacitance at lower frequencies. Film capacitors, on the other hand, are non-polarized, have lower ESR (equivalent series resistance), and excel in high-frequency or AC circuits. For instance, a film capacitor bank is better suited for audio amplifiers, while electrolytic capacitors might be preferred in power factor correction circuits.
When wiring up a capacitor bank, consider the practical implications of your choices. Electrolytic capacitors require careful polarity alignment, while film capacitors offer more flexibility. If your project involves high temperatures or harsh conditions, opt for capacitors with robust dielectric materials like polypropylene or polyester. Always check the manufacturer’s datasheet for temperature and lifespan ratings to ensure compatibility with your application.
Finally, balance cost and performance. High-quality capacitors with superior specifications come at a premium, but skimping on quality can lead to frequent replacements or system failures. For hobbyist projects, mid-range capacitors often strike a good balance. For industrial or high-stakes applications, invest in top-tier components to ensure reliability. Remember, the right capacitor selection isn’t just about meeting specs—it’s about optimizing your system for efficiency, safety, and longevity.
Activate SBI International Banking: A Step-by-Step Guide for Global Transactions
You may want to see also
Explore related products
Series/Parallel Configuration: Determine wiring for desired voltage/capacitance using series or parallel connections
Capacitors in series or parallel configurations are fundamental to achieving specific voltage and capacitance requirements in a capacitor bank. When capacitors are connected in series, the total capacitance decreases while the voltage rating increases, making this configuration ideal for high-voltage applications. Conversely, parallel connections increase total capacitance but maintain the same voltage rating across each capacitor, suitable for applications needing higher energy storage. Understanding these principles is crucial for designing a capacitor bank that meets your system’s demands.
To wire capacitors in series, connect the positive terminal of one capacitor to the negative terminal of the next, forming a chain. The total voltage rating is the sum of each capacitor’s individual rating, but the total capacitance is calculated using the formula \( \frac{1}{C_{\text{total}}} = \frac{1}{C_1} + \frac{1}{C_2} + \dots + \frac{1}{C_n} \). For example, three 100µF capacitors in series yield a total capacitance of approximately 33.3µF. Ensure each capacitor’s voltage rating exceeds the applied voltage to prevent failure. Series wiring is often used in applications like motor start circuits or voltage multipliers.
Parallel wiring involves connecting all positive terminals together and all negative terminals together. This configuration increases total capacitance by simply summing the individual values (e.g., two 100µF capacitors in parallel result in 200µF). The voltage rating remains the same as the lowest-rated capacitor in the group, so ensure all capacitors match or exceed the system voltage. Parallel wiring is common in power supply smoothing or flash photography circuits, where higher energy storage is required.
A practical tip for series configurations is to use balancing resistors across each capacitor to equalize voltage distribution, especially in high-voltage setups. For parallel setups, verify that all capacitors have similar characteristics to avoid uneven current distribution, which can lead to overheating or failure. Always double-check your calculations and component ratings before powering the circuit to ensure safety and reliability.
In summary, choosing between series and parallel configurations depends on your voltage and capacitance needs. Series wiring boosts voltage tolerance but reduces capacitance, while parallel wiring increases capacitance but maintains voltage limits. By mastering these configurations, you can tailor your capacitor bank to meet precise electrical requirements, ensuring optimal performance in your application.
