Brandon Lee

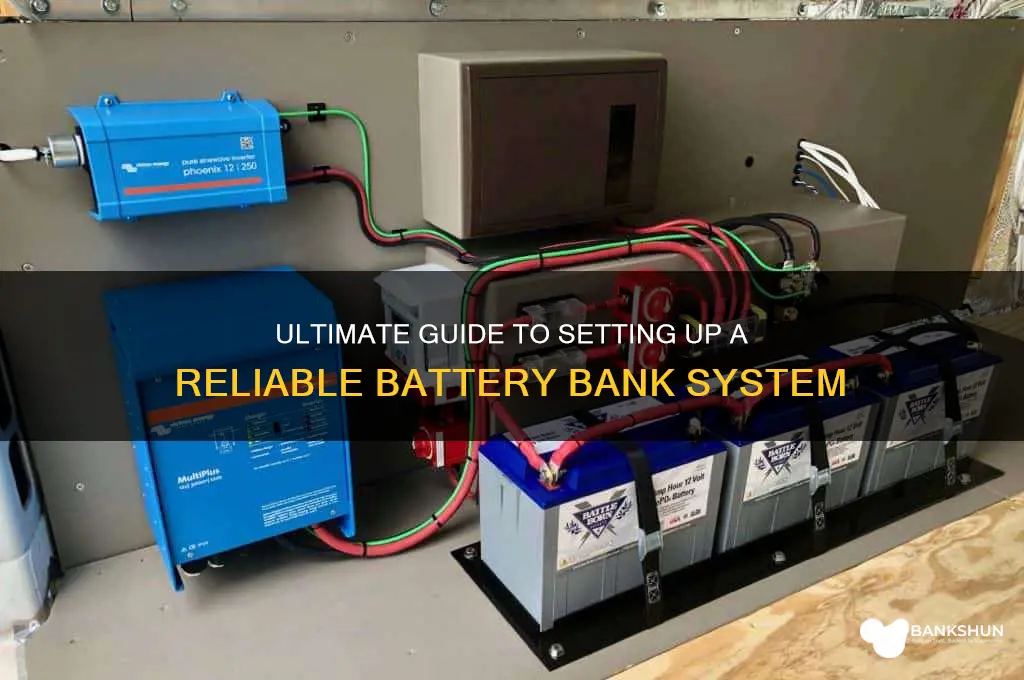

Setting up a battery bank is a crucial step for anyone looking to create a reliable and efficient energy storage system, whether for off-grid living, backup power, or renewable energy integration. A battery bank consists of multiple batteries connected in series or parallel to store electrical energy, ensuring a consistent power supply when needed. The process involves selecting the right type of batteries, such as lead-acid, lithium-ion, or deep-cycle batteries, based on your energy requirements and budget. Proper sizing is essential to meet your power demands, and understanding the voltage and capacity needs is key. Additionally, you’ll need to configure the batteries correctly, install a charge controller to manage energy flow, and ensure safety measures like ventilation and secure mounting are in place. With careful planning and execution, a well-designed battery bank can provide a stable and sustainable power solution for years to come.
Explore related products
What You'll Learn
- Battery Types: Compare lead-acid, lithium-ion, and other types for efficiency and lifespan
- System Sizing: Calculate energy needs based on daily usage and backup requirements
- Wiring Configuration: Series vs. parallel wiring for voltage and capacity optimization
- Charge Controller Setup: Choose and install a controller to manage charging efficiently
- Safety Measures: Implement ventilation, fuses, and monitoring to prevent hazards
Battery Types: Compare lead-acid, lithium-ion, and other types for efficiency and lifespan
Choosing the right battery type is crucial for any battery bank setup, as it directly impacts efficiency, lifespan, and overall performance. Lead-acid batteries, the traditional workhorses of energy storage, are known for their affordability and reliability. They come in two main variants: flooded lead-acid (FLA) and sealed lead-acid (SLA, including AGM and gel types). FLAs require regular maintenance, such as topping up with distilled water, while SLAs are maintenance-free but more expensive. Despite their lower upfront cost, lead-acid batteries have a shorter lifespan (3-5 years) and lower energy density compared to modern alternatives, making them less efficient for high-demand applications.
Lithium-ion batteries, on the other hand, have revolutionized energy storage with their high energy density, longer lifespan (10+ years), and minimal maintenance requirements. They are lighter and more compact, allowing for greater flexibility in installation. However, their higher upfront cost can be a barrier for some. Lithium-ion batteries also require a battery management system (BMS) to monitor and balance cells, ensuring safety and optimal performance. For off-grid systems, lithium iron phosphate (LiFePO4) batteries are particularly popular due to their stability, thermal safety, and ability to handle deep discharges without degradation.
Beyond lead-acid and lithium-ion, emerging battery technologies like nickel-iron (NiFe) and saltwater batteries offer unique advantages. NiFe batteries boast an exceptionally long lifespan (up to 30 years) and robust durability, making them ideal for harsh environments. However, their low energy density and slow charging rates limit their efficiency. Saltwater batteries, a newer entrant, are non-toxic and environmentally friendly but currently lack the energy density and maturity of lithium-ion systems. These alternatives are niche and best suited for specific use cases rather than general-purpose battery banks.
When comparing efficiency, lithium-ion batteries outshine lead-acid with round-trip efficiencies of 90-95%, versus 70-80% for lead-acid. This means less energy is lost during charge and discharge cycles, reducing waste and lowering operational costs. Additionally, lithium-ion batteries can handle deeper discharges (up to 80-100% DoD) without damage, whereas lead-acid batteries are typically limited to 50% DoD to preserve lifespan. This makes lithium-ion a more efficient choice for maximizing stored energy.
In conclusion, the choice of battery type depends on your specific needs, budget, and long-term goals. Lead-acid batteries remain a cost-effective option for low-demand applications, while lithium-ion batteries offer superior efficiency, lifespan, and flexibility for high-performance systems. Emerging technologies like NiFe and saltwater batteries provide specialized solutions but are not yet mainstream. Assess your energy requirements, maintenance capacity, and budget to determine the best fit for your battery bank setup.
Step-by-Step Guide: How to Securely Send a Bank Wire Transfer
You may want to see also
Explore related products
System Sizing: Calculate energy needs based on daily usage and backup requirements
Accurately sizing your battery bank begins with understanding your daily energy consumption. Start by listing all devices and appliances you plan to power, noting their wattage and average daily usage hours. For instance, a 100-watt refrigerator running 8 hours daily consumes 800 watt-hours (Wh), while a 60-watt laptop used for 4 hours consumes 240 Wh. Sum these values to determine your total daily energy need. For a typical off-grid home, this might range from 2,000 to 5,000 Wh per day, depending on efficiency and lifestyle.
Next, factor in backup requirements to ensure reliability during low-generation periods, such as cloudy days for solar systems. A common rule is to size your battery bank for 3–5 days of autonomy. Multiply your daily energy consumption by the desired backup days. For example, a 3,000 Wh daily load with 3 days of backup requires a 9,000 Wh battery bank. However, account for battery inefficiency (typically 80–90% usable capacity) and voltage drop by increasing the bank size by 10–20%.
Battery capacity is often measured in amp-hours (Ah), so convert watt-hours to amp-hours by dividing by your system voltage. For a 12V system, a 9,000 Wh bank equates to 750 Ah (9,000 ÷ 12). If using 200 Ah batteries, you’d need 4 batteries in parallel. For higher voltage systems (24V or 48V), fewer batteries are required, reducing wiring complexity and cost.
Practical tips include prioritizing energy-efficient appliances to reduce load and using monitoring tools to track actual usage. Overestimating needs slightly is safer than underestimating, as insufficient capacity leads to frequent discharging, shortening battery life. Conversely, oversized banks waste resources and increase costs. Balance precision with flexibility, and revisit calculations annually as usage patterns evolve.
Finally, consider future expansion. If you plan to add more devices or extend backup days, design your system with scalability in mind. Use modular battery configurations and ensure your charge controller and inverter can handle increased capacity. Proper sizing today saves time, money, and frustration tomorrow, ensuring your battery bank meets both current and future energy demands.
Does Google Docs Offer a Comment Bank Feature? A Guide
You may want to see also
Explore related products
Wiring Configuration: Series vs. parallel wiring for voltage and capacity optimization
Understanding how to wire batteries in a bank is crucial for optimizing both voltage and capacity to meet specific energy needs. Series wiring connects the positive terminal of one battery to the negative terminal of the next, effectively adding their voltages together while maintaining the same capacity as a single battery. For instance, two 12V, 100Ah batteries wired in series produce a 24V system with 100Ah capacity, ideal for applications requiring higher voltage, such as powering inverters or electric vehicles.
Parallel wiring, on the other hand, connects all positive terminals together and all negative terminals together, increasing total capacity while keeping the voltage the same. Using the same example, two 12V, 100Ah batteries wired in parallel result in a 12V system with 200Ah capacity, suitable for applications demanding extended runtime, like off-grid solar systems. This configuration ensures the system can deliver more energy over a longer period without increasing voltage.
Choosing between series and parallel wiring depends on the load requirements. For high-voltage applications, series wiring is essential, but it requires all batteries to be of the same voltage and capacity to avoid imbalances. Parallel wiring is simpler and more forgiving, allowing batteries of varying capacities to be combined, though it’s critical to use batteries with the same voltage to prevent overcharging or discharging. Always use a battery management system (BMS) in parallel setups to monitor and balance individual battery states.
A hybrid approach—combining both series and parallel wiring—can optimize both voltage and capacity. For example, four 6V, 200Ah batteries wired in series-parallel (two pairs in series, then parallel) yield a 12V, 400Ah system. This method is common in large-scale renewable energy systems where both high voltage and ample capacity are needed. However, complexity increases with hybrid configurations, requiring careful planning and robust connections to ensure safety and efficiency.
Regardless of the wiring method, safety precautions are paramount. Use appropriately sized cables to minimize voltage drop and heat generation, and ensure all connections are secure and corrosion-free. Fuse each battery in series setups to protect against short circuits, and install a master disconnect switch for emergency shutdown. Regularly inspect the system for signs of wear, overheating, or imbalance, and replace batteries as needed to maintain performance. Proper wiring configuration not only maximizes efficiency but also extends the lifespan of the battery bank.
Troubleshooting Declined Transactions: Solutions for Issuing Bank Rejections
You may want to see also
Explore related products
Charge Controller Setup: Choose and install a controller to manage charging efficiently
A charge controller is the brain of your battery bank, ensuring your batteries charge efficiently and safely. Without it, overcharging can damage batteries, reduce their lifespan, and even pose safety risks. Selecting the right controller depends on your system’s voltage, current, and battery type. For instance, a 12V solar panel system paired with lead-acid batteries requires a PWM (Pulse Width Modulation) controller, while lithium batteries benefit from MPPT (Maximum Power Point Tracking) controllers, which are 30-40% more efficient by optimizing voltage conversion.
Installation begins with placement. Mount the controller in a dry, well-ventilated area, ideally near the battery bank to minimize voltage drop. Ensure it’s accessible for monitoring and maintenance. Connect the solar panels to the controller’s input terminals, following the manufacturer’s polarity markings. Then, link the controller’s output to the battery bank, using appropriately sized cables to handle the system’s amperage—for a 100A system, 4 AWG wire is typically sufficient. Secure all connections with corrosion-resistant terminals and torque to specifications.
Configuration is critical for efficiency. Most controllers require setting the battery type (e.g., flooded lead-acid, AGM, lithium) to apply the correct charging algorithm. For lithium batteries, ensure the controller’s absorption voltage matches the battery’s specifications, usually around 14.4V. Overlooking this step can lead to undercharging or damage. Additionally, enable temperature compensation if your controller supports it, as battery charging efficiency varies with temperature—a 10°C drop can require a 0.3V increase in charging voltage.
Monitoring and maintenance ensure longevity. Regularly check the controller’s display for error codes or unusual readings, such as overvoltage or low battery warnings. Clean the controller and its surroundings to prevent dust buildup, which can cause overheating. Annually inspect connections for corrosion or looseness, especially in humid environments. Upgrading firmware, if available, can add features or improve performance. A well-maintained controller not only protects your investment but also maximizes energy harvest, especially in MPPT systems where efficiency directly impacts output.
Choosing between PWM and MPPT controllers involves trade-offs. PWM controllers are simpler and cheaper, ideal for small systems where panel voltage matches battery voltage. However, MPPT controllers excel in larger systems or when panel voltage exceeds battery voltage, extracting more power in low-light conditions. For example, a 200W solar panel with a 36V VOC paired with a 12V battery bank will underperform with a PWM controller but thrive with an MPPT unit. While MPPT costs more upfront, its efficiency gains often justify the expense, especially in cloudy climates or high-latitude regions.
Activate Citibank Internet Banking: A Step-by-Step Guide for Beginners
You may want to see also
Explore related products
Safety Measures: Implement ventilation, fuses, and monitoring to prevent hazards
Proper ventilation is non-negotiable in battery bank setups, especially for lead-acid or lithium-ion systems, which can emit flammable hydrogen gas during charging. Install passive vents or active exhaust fans to maintain airflow, ensuring at least 1 cubic foot per minute (CFM) of ventilation per square foot of battery surface area. Position vents near the floor, as hydrogen is denser than air and settles low. For enclosed spaces, consider a vented battery box or cabinet with a dedicated duct system leading outdoors. Regularly inspect vents for obstructions like dust or debris, which can compromise effectiveness.
Fuses and circuit breakers are your first line of defense against overcurrent events that could lead to fires or explosions. Size fuses to 125% of the battery bank’s continuous current rating, but never exceed the manufacturer’s recommendations. For a 400-amp system, for instance, use a 500-amp fuse. Place fuses as close to the battery terminals as possible to protect wiring and connections. Avoid using blade fuses for high-current applications; opt for ANL or class-T fuses instead. Test fuses annually with a multimeter to ensure continuity and replace them immediately if they show signs of corrosion or damage.
Real-time monitoring systems are essential for detecting voltage imbalances, temperature spikes, or abnormal discharge rates before they escalate. Invest in a battery management system (BMS) with temperature sensors and voltage monitors, especially for lithium-based setups. Set alerts for temperatures above 120°F (49°C) or voltages exceeding the battery’s threshold (e.g., 14.6V for a 12V lead-acid bank). For DIY systems, use standalone voltage meters and infrared thermometers to manually check conditions weekly. Log data trends to identify patterns that may indicate failing cells or improper charging.
Comparing safety protocols across battery types reveals distinct priorities. Lead-acid batteries demand robust ventilation due to hydrogen off-gassing, while lithium-ion systems require temperature monitoring to prevent thermal runaway. Nickel-iron batteries, though safer, still benefit from fuses to protect against short circuits. Hybrid setups, such as combining lithium and lead-acid, necessitate layered safety measures—ventilation for hydrogen, a BMS for lithium, and fuses for both. Tailor your approach to the chemistry in use, avoiding a one-size-fits-all mindset.
Finally, integrate safety measures into the physical design of your battery bank. Mount batteries on non-conductive racks with at least 2 inches of clearance between cells for airflow. Use insulated tools and wear protective gear when handling connections to prevent accidental shorts. Label all components clearly, including fuse ratings and vent locations, for quick reference during emergencies. Conduct a safety audit every six months, testing ventilation rates, verifying fuse integrity, and recalibrating monitoring systems. Proactive design and maintenance transform potential hazards into manageable risks.
Bank Reserves: Cash or Other Assets?
You may want to see also
Frequently asked questions
A battery bank is a group of batteries wired together to store electrical energy, typically for off-grid or backup power systems. It’s essential for storing energy from renewable sources like solar or wind, providing reliable power during outages, or supporting energy independence.
Calculate your daily energy consumption (in watt-hours) and divide it by your system’s voltage (e.g., 12V, 24V, 48V). Multiply this by the number of days of autonomy (backup days) and factor in efficiency losses (typically 80-90%). This will give you the total amp-hour (Ah) capacity required.
Common options include lead-acid (flooded or sealed), lithium-ion, and nickel-iron batteries. Lithium-ion is popular for its high efficiency, longer lifespan, and lighter weight, but it’s more expensive. Lead-acid is cost-effective but requires more maintenance and has a shorter lifespan.
Wire batteries in series to increase voltage (e.g., two 12V batteries in series = 24V). Wire them in parallel to increase capacity (e.g., two 100Ah batteries in parallel = 200Ah). Ensure all batteries are the same type, age, and capacity to avoid imbalances.
Install the battery bank in a well-ventilated area to prevent gas buildup (for lead-acid batteries). Use proper wiring and fuses to prevent overcurrent. Keep batteries away from flammable materials and ensure they are securely mounted. Follow manufacturer guidelines for charging and maintenance.
