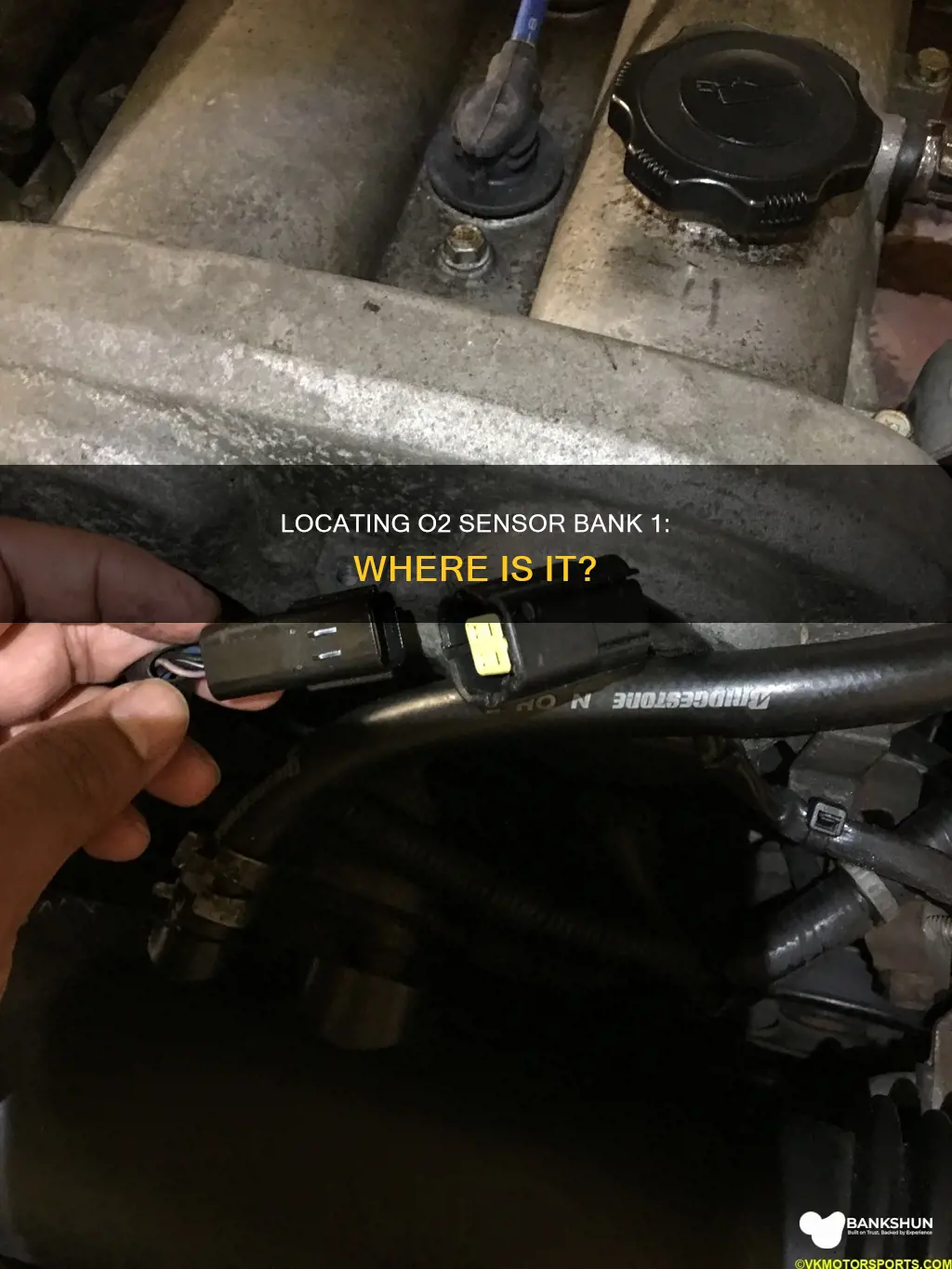

Oxygen sensors (O2 sensors) are crucial to modern engine management, measuring the oxygen content in exhaust gases and relaying that data to the Engine Control Unit (ECU). The O2 sensor bank 1 sensor 1 is typically situated on the exhaust manifold, upstream of the catalytic converter, on the engine bank containing cylinder number one. The location of the sensor can vary depending on the vehicle's make, model, and year, so it is important to consult the vehicle's service manual or a vehicle-specific diagram to accurately locate it.
| Characteristics | Values |
|---|---|
| Location | Before the catalytic converter, on the side with Cylinder #1 |
| Cylinder | Bank 1 is always on cylinder 1, 3, 5, 7, 9, 11 |
| Side | Bank 1 is on the passenger side |
| Sensor Type | Upper oxygen sensor |
| Function | Measures oxygen content in exhaust gases and relays data to the Engine Control Unit (ECU) |
| Fault Code | P0130 error: Heated Oxygen Sensor Bank 1, Sensor 1 Circuit Malfunction |
Explore related products
What You'll Learn
Bank 1 is on the passenger side, where cylinder #1 is
The location of Bank 1 is important when it comes to replacing the O2 sensor. To replace the O2 sensor in Bank 1, you will need to locate it, unplug the connector, take out the old sensor, put in the new one, and plug it back in. It is important to note that the replacement sensor should be specifically matched to the vehicle's make, model, and year, ensuring it is the correct Bank 1 sensor.
To locate Bank 1, you can refer to the vehicle's service manual for precise location details. As a general rule, Bank 1 is located on the exhaust manifold, upstream of the catalytic converter, on the engine bank containing cylinder number one. Bank 1 Sensor 1 will be before the catalytic converter, and Bank 1 Sensor 2 will be after it.
By replacing the O2 sensor in Bank 1, you can improve your gas mileage and engine performance while also ensuring compliance with emission standards.
Oxygen Sensor Location: Bank 2 Sensor Positioning Explained
You may want to see also
Explore related products
Bank 1 Sensor 1 is the upstream oxygen sensor
The upstream oxygen sensor plays a vital role in monitoring the oxygen content in exhaust gases and relaying that data to the Engine Control Unit (ECU). This enables the ECU to adjust the air-fuel mixture, optimising combustion, enhancing engine efficiency, and minimising emissions.
To replace the upstream oxygen sensor, you will need to locate it, unplug the connector, remove the old sensor, install the new one, and plug it back in. It is important to use a replacement oxygen sensor specifically matched to the vehicle's make, model, and year, ensuring it is the correct bank 1 sensor 1.
Additionally, regular maintenance of the upstream oxygen sensor is crucial for its longevity. This includes monitoring fuel consumption and emissions, as sudden changes can indicate sensor issues. Keeping electrical connections secure and free of corrosion is also essential for the proper functioning of the sensor.
It is worth noting that the location of Bank 1 can vary depending on the vehicle. While it is typically associated with Cylinder #1, it is recommended to consult the vehicle's service manual or research the specific vehicle in question to determine the exact location of Bank 1 Sensor 1.
ITMs: The Future of Banking?
You may want to see also
Explore related products
Bank 1 Sensor 2 is the downstream oxygen sensor
The O2 sensors are integral to modern engine management. They measure the oxygen content in the exhaust gases and send this data to the Engine Control Unit (ECU). This enables the ECU to fine-tune the air-fuel mixture, optimising combustion, enhancing engine efficiency, and minimising emissions. These sensors also determine whether the engine is running a lean (excess air) or rich (excess fuel) mixture. By maintaining the ideal air-fuel ratio, oxygen sensors ensure the catalytic converter operates effectively, reducing harmful emissions and improving fuel economy.
It is important to note that the terms "Bank 1" and "Bank 2" refer to different sets of O2 sensors. Bank 1 is the side with the #1 cylinder (Cylinders 1, 3, 5, 7, etc.), while Bank 2 is the side with the #2 cylinder (Cylinders 2, 4, 6, 8, etc.). The specific location of Bank 1 Sensor 2 may vary depending on the vehicle's make, model, and year.
Bank 1 Sensor 2 plays a crucial role in ensuring the catalytic converter is functioning properly. It is located after the catalytic converter and is responsible for checking that the converter is doing its job of reducing harmful emissions. This sensor is also used in some newer cars for fuel trim, along with the primary sensors (Sensor 1).
Investigating Unauthorized ACH Transactions: Banks' Step-by-Step Guide
You may want to see also
Explore related products
Bank 1 Sensor 1 replacement: locate, unplug, remove, install, and plug in
Bank 1 Sensor 1 Replacement
Locate
The first step in replacing the O2 sensor in bank 1 is to locate it. The O2 sensor in bank 1 is located before the catalytic converter, on the side with cylinder #1. It is the upstream sensor, situated closest to the engine.
Unplug
Once you have located the sensor, you need to unplug the connector.
Remove
After the connector is unplugged, you can take out the old sensor. You may need to use a quality penetrating lubricant to aid in the removal of the original sensor if it is seized.
Install
Before installing the new sensor, ensure that it is the correct replacement oxygen sensor for your vehicle's make, model, and year. Also, make sure you are wearing appropriate hand protection (gloves) and eye protection (safety glasses). Then, put in the new sensor, using a dedicated oxygen sensor socket, designed with a slot to accommodate the sensor's wiring harness.
Plug in
Finally, plug the connector back in.
Understanding Bank Efficiency Ratios: Key Performance Indicator
You may want to see also
Explore related products
Bank 1 Sensor 1 issues: check for P0420 or P0130 error codes
The O2 sensor bank 1 sensor 1 is typically situated on the exhaust manifold, upstream of the catalytic converter, on the engine bank containing cylinder number one. It is important to accurately locate this sensor before attempting to replace it.
The P0130 error code refers to an O2 sensor circuit malfunction in bank 1 sensor 1. This can cause the engine to run roughly or exhibit other issues. The oxygen sensor is usually faulty when this error code appears. It is recommended to replace the sensor if it is past its due date for replacement according to the owner's manual. If the sensor is not due for replacement, other issues in the system should be checked before replacing the sensor.
The P0420 error code indicates low catalyst system efficiency, specifically, oxygen levels below the desired threshold in bank 1. This is often caused by problems with the car's exhaust or fuel systems. The catalytic converter, which is part of the vehicle's exhaust system, may be faulty or inefficient. The P0420 code can also be triggered by a faulty O2 sensor or an exhaust leak. It is recommended to have the vehicle professionally serviced to diagnose and resolve the issue.
Both error codes can result in the check engine light turning on. It is important to address these issues promptly to avoid further damage and ensure the safe operation of the vehicle.
Understanding Banking Consent Orders: Explained
You may want to see also
Frequently asked questions
Bank 1 is located on the side with cylinder 1.
The engine's cylinders are often divided into two parts. If you have a V-engine, you have one bank on each side of the engine. However, different engines can have cylinder 1 on different sides.
Bank 1 is always on cylinder 1, 3, 5, 7, 9, 11, and bank 2 is always on cylinder 2, 4, 6, 8, 10, 12.
Bank 1 Sensor 1 is located before the catalytic converter, and Bank 1 Sensor 2 is located after the catalytic converter.
